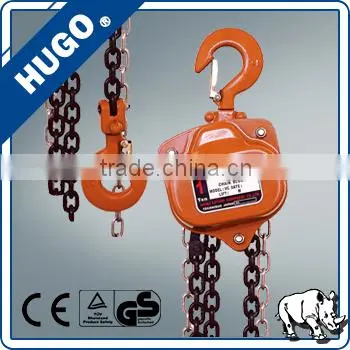

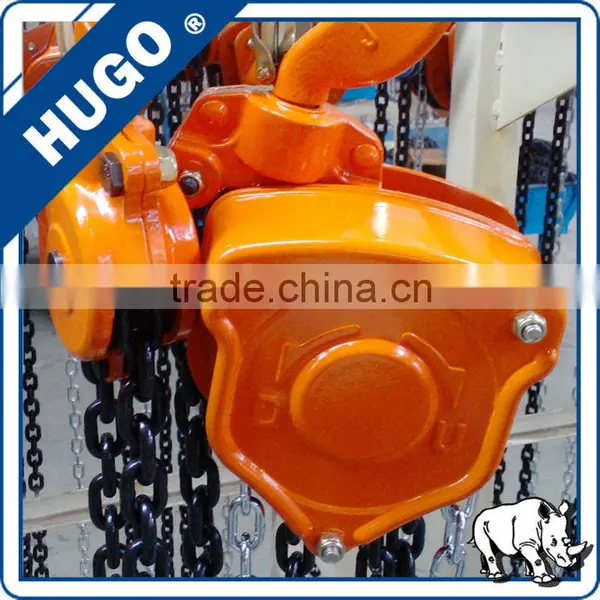

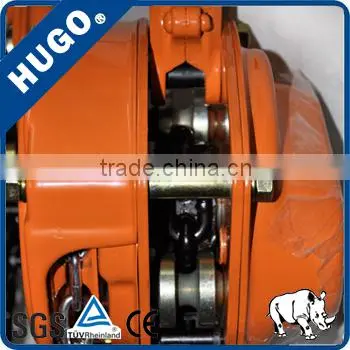

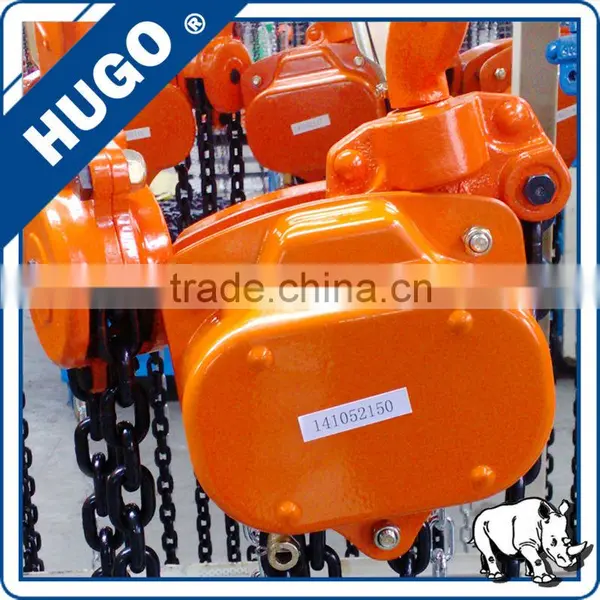

China manufacture hand chain hoist 3 ton manual chain block lifting hoist
Product Parameter | |||||||||||
Model |
VC-A 0.5 |
VC-A 1 |
VC-A 1.5 |
VC-A 2 |
VC-A 5 3 |
VC-A 5 |
VC-A 10 |
VC-A 20 |
VC-A 30 |
VC-A 50 |
|
Capacity(t) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
|
Standard lift(m) |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Running test load(t) |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
15 |
30 |
45 |
75 |
|
|
No.of falls of load chain |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
12 |
24 |
|
|
Load chain diameter(mm) |
5 |
6.3 |
7.1 |
8 |
7.1 |
9 |
9 |
9 |
9 |
9 |
|
|

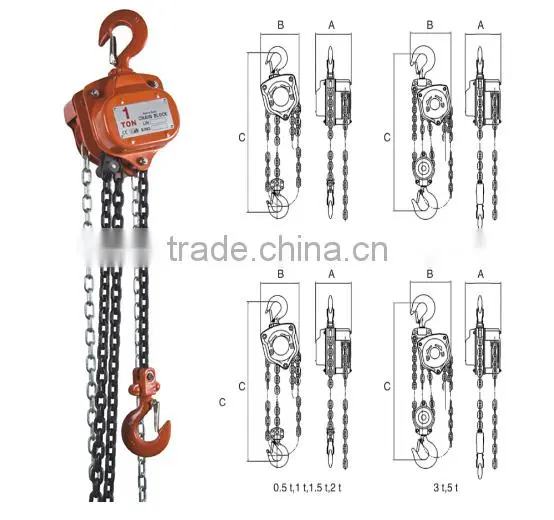

Dimension(mm) A |
129 |
149.5 |
157.5 |
161.5 |
151.5 |
163 |
207 |
215 |
350 |
406 |
|
B |
136 |
145 |
164.5 |
187 |
164.5 |
211 |
398 |
650 |
680 |
962 |
|
C |
270 |
317 |
399 |
414 |
465 |
636 |
798 |
890 |
1380 |
2578 |
|
Net weight(kg) |
8.4 |
12 |
16.2 |
20 |
24 |
41 |
79 |
193 |
220 |
1092 |
|
|
Packing(L*W*H) (cm) |
22x14x15 |
25x19x16 |
33x24x16 |
33x24x19 |
34.5x24x16 |
40x30x19 |
48x4218.5 |
78x68x20 |
85x67x30 |
110x100x 130 |
|
Features |
1. High quality, economical, safe and reliable pulling winch. |
2. Featuring a drop forged load hook to prevent snapping when overloading. |
3. Factory tested and certified. |
4. Heat treated for greater strength and to prevent wear. |
5. The opening of the hooks has been made wider for easier handling and working. |
6. Reliable disk brake and premium grade alloy chain. |
7. Heat treated for greater strength and to prevent wear. |
Chain: adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.

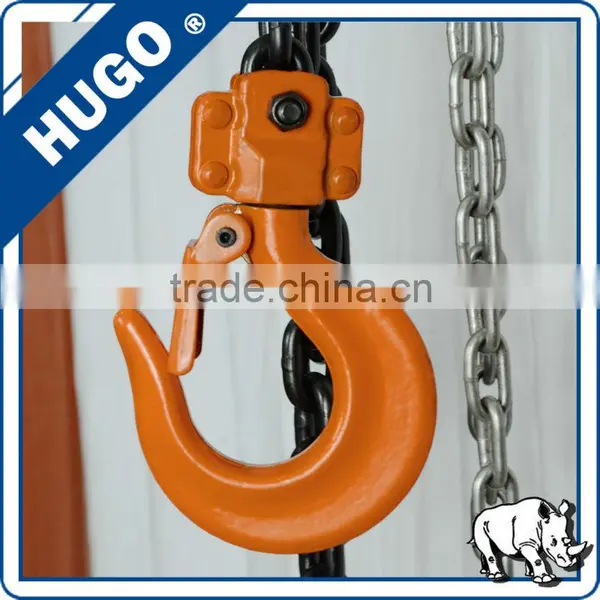

Hook: made of high-class alloy steel,it has high strength and high security; by using new design,weight will never escape.

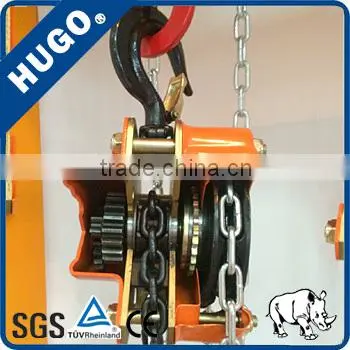

Gear: by adopting Japanese technology,they are innovated symmetrical arrayed high -speed synchronous gears, and are made from international standard gear steel.Compared with common gears ,they are more wearable and steadier, and more laborsaving.
Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
1.We can make special samples according to the customer's requirement.
2.We have more than 50 professional technical teams, provide best after-sales service.
3.Fast delivery time.
4.We have CE, TUV and SGS certifications.
5.We are professional hoist manufacturer with more than 20 years experience since 1992.
We believe that quality first, our products is qualified by the Chinese people's insurance company (PICC) which makes sure the safety.
Our aim is to take the market as the center, take the customer as the focus, to create enterprise value as the core. Build engineering example to let customers no worries!
1. Is your product customized?
Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
a. How much is the maximus lifting weight of the hoist?
b. Have you installed the rails? Do you need us supply the rails? How long is it?
c. Where are the working environment?
