NB Series of Mechanical Torque Wrench
NB SERIES OF MECHANICAL TORQUE WRENCH
Introduction:

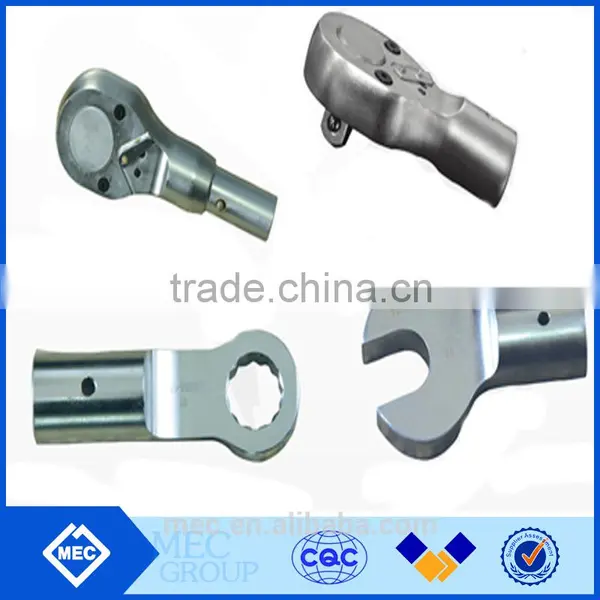

1.You can change the ratchet head into open spanner and the wabble model.

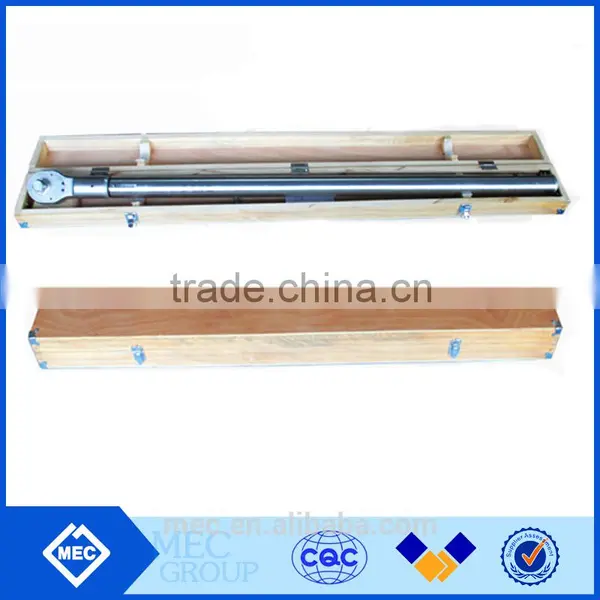

2.The wrench above 680N.m pay more attention to customers' requirement in the packaging, transportation, storage by using the fission connection structure.
| ITEM | MODEL | RANGE (N.m) | GRADATION (N.m) | TOTAL LENGTH (mm) | ARMS OF FORCE (mm) | WEIGHT (kg) | SQUARE JOINT SIZE (in) | OPENING NOMINAL SIZE (mm) |
| L1 | L2 | |||||||
| 1 | NB-5 | 1-5 | 0.05 | 187 | 120 | 0.18 | 1/4" | 5,5.5,6-22 |
| 2 | NB-10 | 2-10 | 0.1 | 200 | 140 | 0.2 | 3/8" | 8.9,10-24 |
| 3 | NB-22.5G | 5-22.5 | 0.25 | 255 | 190 | 0.3 | 3/8" | |
| 4 | NB-25 | 5-25 | 0.25 | 225 | 165 | 5 | 3/8" | |
| 5 | NB-50G | 10-50 | 0.5 | 307 | 240 | 0.45 | 3/8" | 8.9,10-24 |
| 6 | NB-100G | 20-100 | 1 | 420 | 350 | 0.84 | 1/2" | 12,13,14-26 |
| 7 | NB-180G | 40-180 | 1 | 530 | 430 | 1.48 | 1/2" | |
| 8 | NB-200 | 40-200 | 1 | 580 | 480 | 1.73 | 1/2" | 15,16,17-36 |
| 9 | NB-230G | 50-230 | 1 | 670 | 580 | 1.85 | 1/2" | |
| 10 | NB-300B | 60-300 | 1.5 | 680 | 575 | 2.6 | 3/4" | |
| 11 | NB-400G | 80-400 | 2 | 890 | 788 | 3.7 | 3/4" | 24,25,26-32,34, |
| 12 | NB-400B | 80-400 | 2 | 780 | 675 | 3.18 | 3/4" | |
| 13 | NB-500B | 100-500 | 2.5 | 890 | 788 | 3.3 | 3/4" | |
| 14 | NB-680G | 160-680 | 4 | 1098 | 990 | 6.8 | 3/4" | |
| 15 | NB-760 | 160-760 | 4 | 1098 | 990 | 6.8 | 3/4" | 24,25,26-32, 34,36,38,41,46 |
| 16 | NB-1000 | 300-1000 | 5 | 1300 | 1180 | 7.6 | 1" | |
| 17 | NB-1200 | 400-1200 | 8 | 1530 | 1410 | 8.5 | 1" | 36,38,41,46,50,55,60,65,70,75 |
| 18 | NB-1500 | 450-1500 | 7.5 | 1300 | 1180 | 7.8 | 1" | |
| 19 | NB-2000 | 750-2000 | 12.5 | 1830 | 1710 | 13 | 1" | |
| 20 | NB-2000A | 720-2000 | 16 | 1320 | 1200 | 7.6 | 1" | |
| 21 | NB-3000A | 1000-3000 | 10 | 1500 | 1368 | 25 | 1" | 36,38,41,46,50,55,60,65,70,75 |
