SF6 Circuit Breaker

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

GEM

Model Number:

LW35-72.5/126/145/252KV

Liaoning Mec Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name GEM

Model Number LW35-72.5/126/145/252KV

Type High Voltage

Poles Number 3

Specifications

SF6 Circuit Breaker
LW35-72.5/126/145/252 SF6 circuit breaker
simple structure
compactness
easy installation low noise, hig

Circuit Breaker Detailed Information:

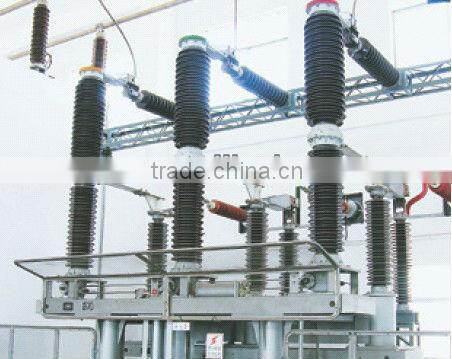

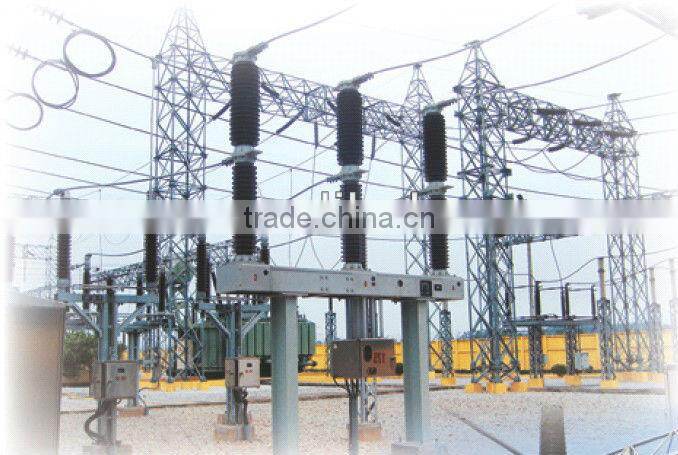

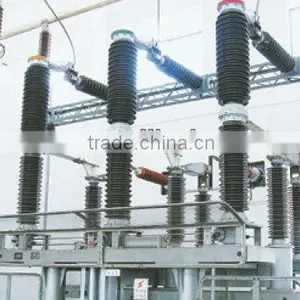

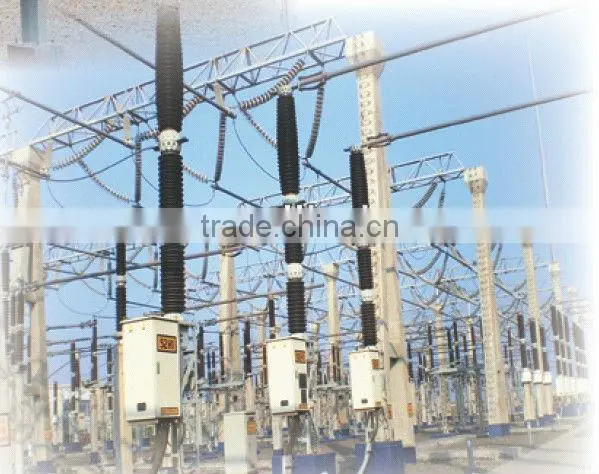

LW35 SF6 circuit breaker

MAIN FEATURES

LW35-72.5/126/145 circuit breaker is either three-phase gang operation with a sping mechanism or single-phase operation with three spring mechanism.

LW35-252 circuit breaker is equipped with three spring mechanisms to realize single-phase operation or three-phase electrical gang operation.

AMBIENT

LW35-72.5/126/145 LW35-252

Ambient air temperature -40~+40°C

Wind-pressure ≤700 Pa

Seismic level ≤9 degree

Altitude ≤3000 ≤2000 m

TECHNICAL PARAMETERS

Item	Unit	LW35-72.5	LW35-126	LW35-145	LW35-252
Rated voltage	kV	72.5	126	145	252
Rated current	A	3150			4000
Rated frequency	Hz	50
Rated short circuit breaking current	kA	40			50
