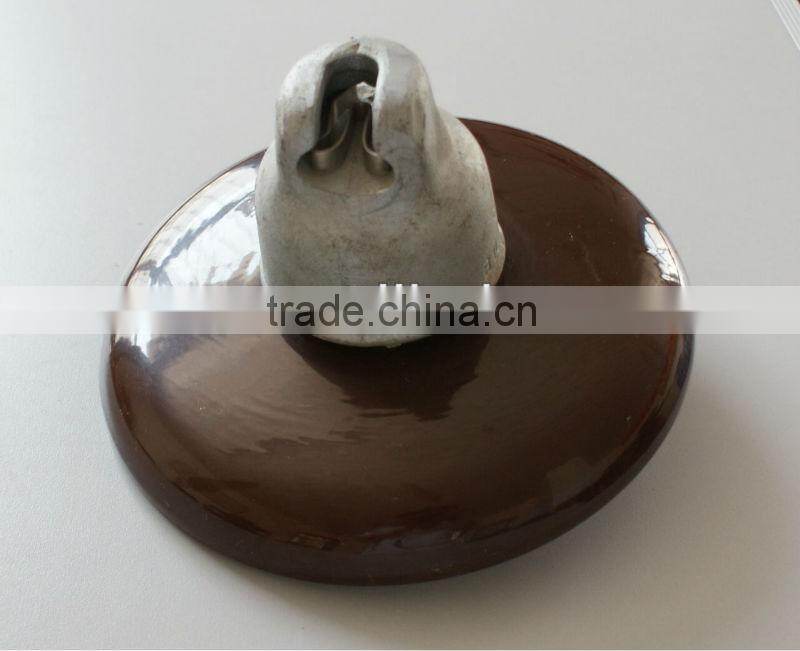

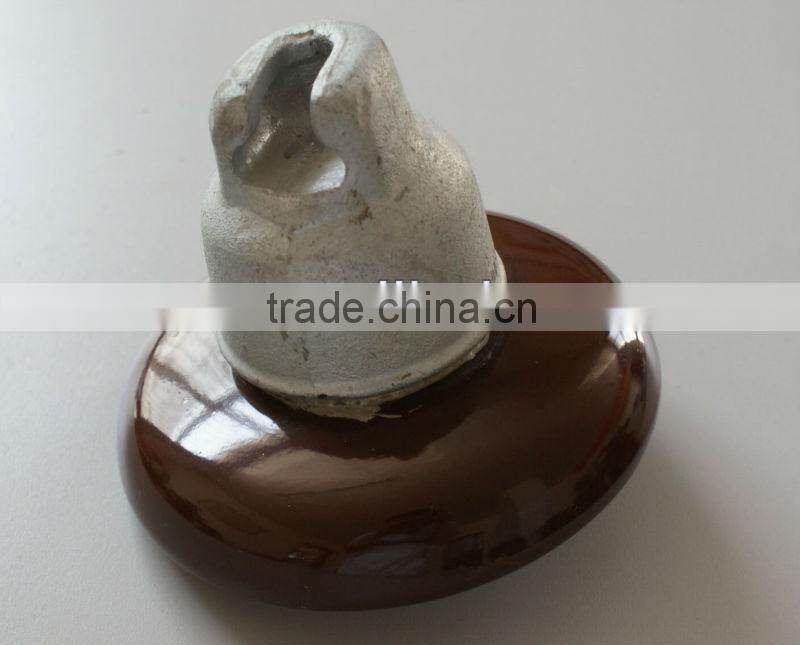

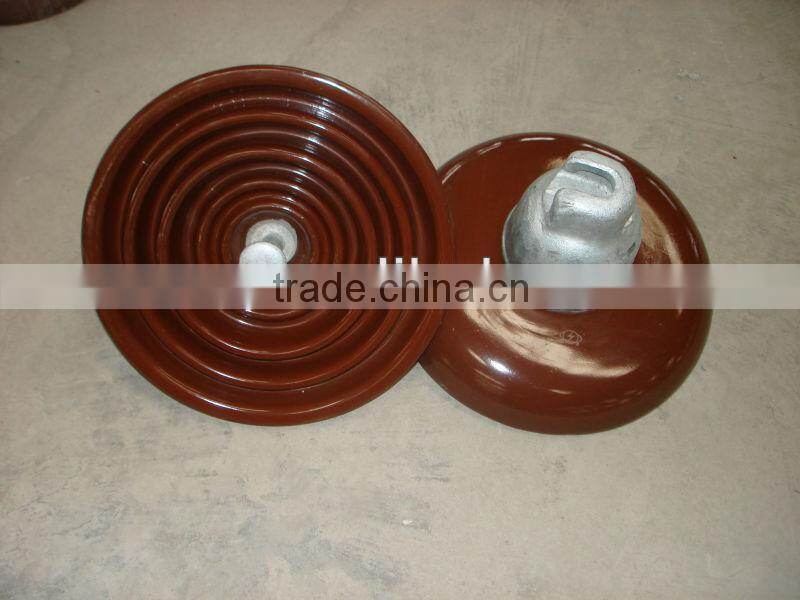

Help CenterCeramic Insulator
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
GEM
Model Number:
P-3~36M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Liaoning, China
Brand Name
GEM
Model Number
P-3~36M
Type
Insulator
Material
Porcelain
Application
High Voltage
Rated Voltage
220KV
Tensile Strength
80N
Specifications

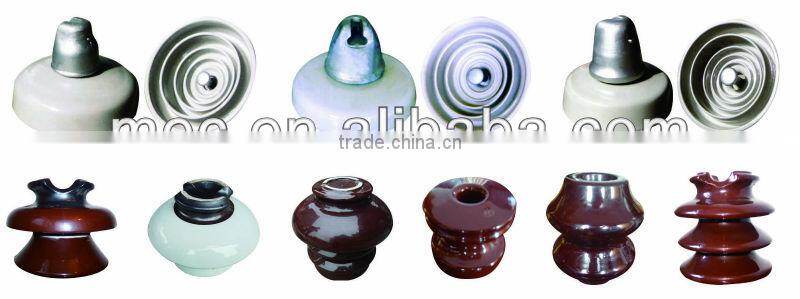

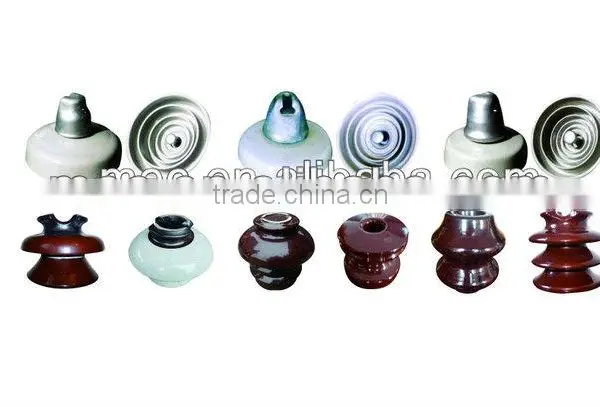

Ceramic Insulator mainly used on overhead transmission and distribution lines to support and insulate conductors in normal area.Ceramic Insulator mainly used on overhead transmission and distribution lines to support and insulate conductors in normal area,polluted area and hing-altitude rigion.We can manufacture insulators in accordance with the standards of GB, IEC, ANSI, BS, AS, CAN as well as customers' special requirements.

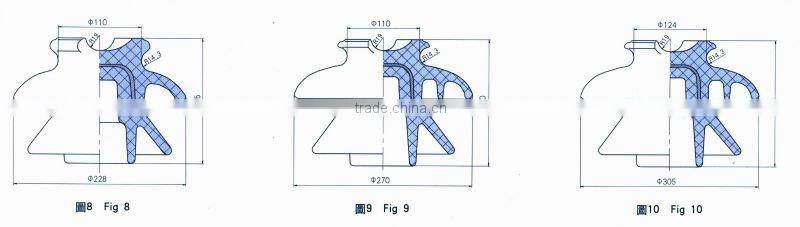

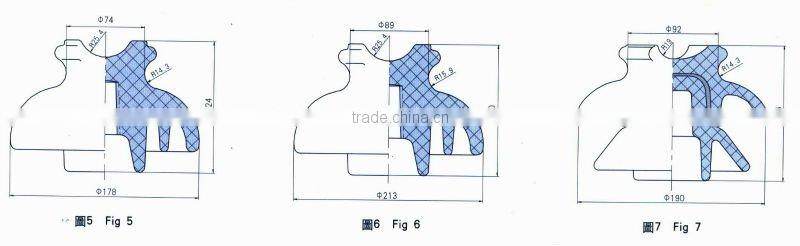

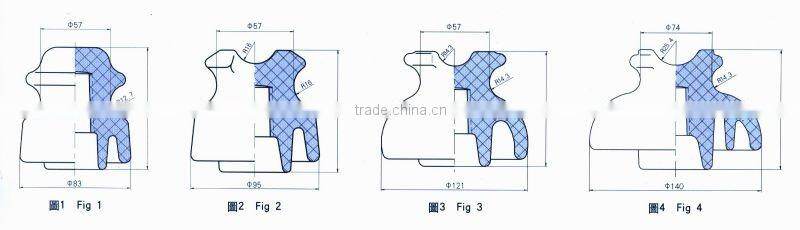

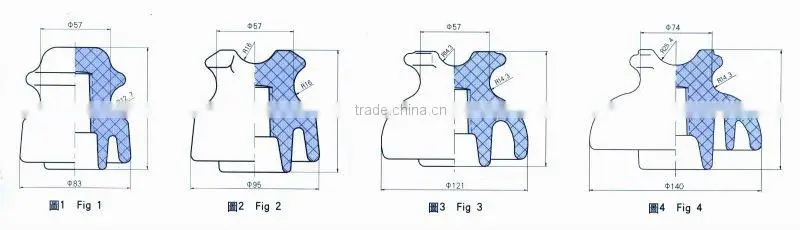

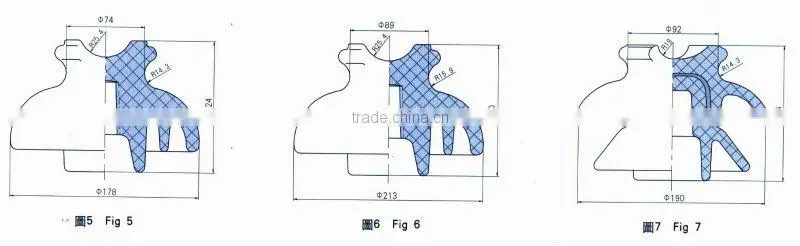

Please take the following pictures as reference:
| Type | Class | Figure No. | Nominal creepage distance(mm) | Arcing distance(mm) | Radio interference boltage | Critical impulse flashover voltage | |||
| Lowfrequency test voltage to ground(kV) | Max. RIV.at 1MHz | Positive | |||||||
Anti-radio interference type (µV) |
Normal type (µV) |
Anti-radio interference type(kV) | Normal type(kV) | ||||||
| P-3-M | 55-1 | 1 | 102 | 57 | 5 | 50 | 2500 | 50 | |
| P-6-M | 55-2 | 2 | 127 | 86 | 5 | 50 | 2500 | 70 | 75 |
| P2-10-M | 55-3 | 3 | 178 | 114 | 10 | 50 | 5500 | 90 | 100 |
| P-10-M | 55-4 | 4 | 229 | 127 | 10 | 50 | 5500 | 105 | 110 |
| P-15-M | 55-5 | 5 | 305 | 159 | 15 | 100 | 8000 | 130 | 140 |
| P2-15-M | 55-6 | 6 | 381 | 203 | 22 | 100 | 8000 | 150 | |
| P3-20-M | 56-1 | 7 | 330 | 178 | 15 | 100 | 8000 | 150 | |
| P-20-M | 56-2 | 8 | 432 | 210 | 22 | 100 | 12000 | 175 | |
| P-35-M | 56-3 | 9 | 533 | 241 | 30 | 200 | 16000 | 200 | |
| P-46-M | 56-4 | 10 | 686 | 286 | 30 | 200 | 16000 | 225 | |
| Type | Class | Figure No. | Critical impulse flashover voltage | Low frequency flashover voltage | Cantilever strength(lb) | Low-fre puncture voltage(kV) | Unit mass(kg) | ||||
| Negative | Dry flashover | Wet flashover | |||||||||
| Anti-radio interference type(kV) | Normal type(kV) | Anti-radio interference type(kV) | Normal type(kV) | Anti-radio interference type(kV) | Normal type (kV) | ||||||
| P-3-M | 55-1 | 1 | 70 | 35 | 20 | 3000 | 50 | 0.6 | |||
| P-6-M | 55-2 | 2 | 85 | 95 | 45 | 50 | 25 | 25 | 2500 | 70 | 0.7 |
| P2-10-M | 55-3 | 3 | 110 | 130 | 55 | 65 | 30 | 35 | 2500 | 90 | 1.1 |
| P-10-M | 55-4 | 4 | 130 | 140 | 65 | 70 | 35 | 40 | 3000 | 95 | 1.6 |
| P-15-M | 55-5 | 5 | 150 | 170 | 80 | 85 | 45 | 45 | 3000 | 115 | 2.5 |
| P2-15-M | 55-6 | 6 | 170 | 100 | 50 | 3000 | 135 | 4.0 | |||
| P3-20-M | 56-1 | 7 | 190 | 95 | 60 | 2500 | 130 | 3.8 | |||
| P-20-M | 56-2 | 8 | 225 | 110 | 70 | 3000 | 145 | 5.5 | |||
| P-35-M | 56-3 | 9 | 265 | 125 | 80 | 3000 | 165 | 7.0 | |||
| P-46-M | 56-4 | 10 | 310 | 140 | 95 | 3000 | 185 | 11.1 | |||
