lever chain hoist from china manufacture in alibaba
|

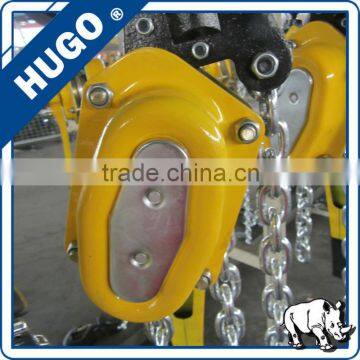

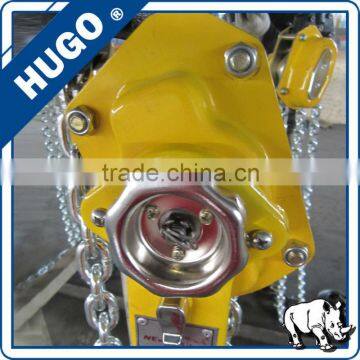

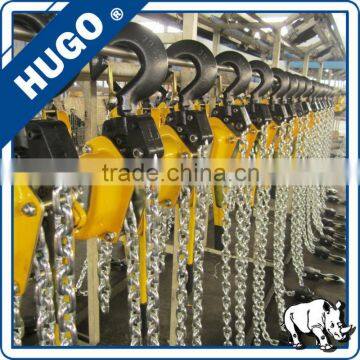

Lever hoist is a hand operated lifting and pulling appliance which is portable and versatile. It is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles. |
Features |
1) Capacity from 0.25T to 6T, Minimum headroom required and very versatile in operation |

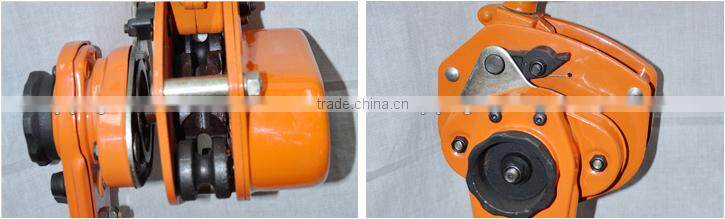

2) Automatic double-pawl braking system |

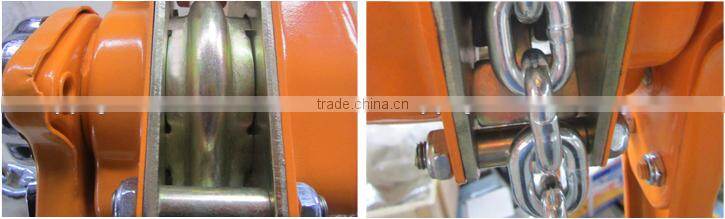

3) Chain guides provide smooth chain operation |
4) Roller bearing supported load sheaves for avoiding abrasion |
5) G80 Chain are made of special alloy steel that is exclusively |

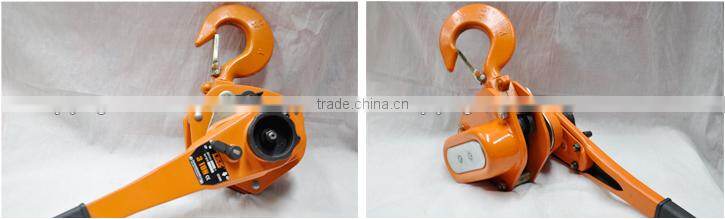

6) Drop forged kooks to ensure superior quallity and safety |
7) The lever hoist static test is 4 times of capacity, and running test is 1.5 times of capacit one by one |
8) The lever block is of high efficiency, fast lifting and light hand pull. |
9) Surface finishing: Automotive painting. |

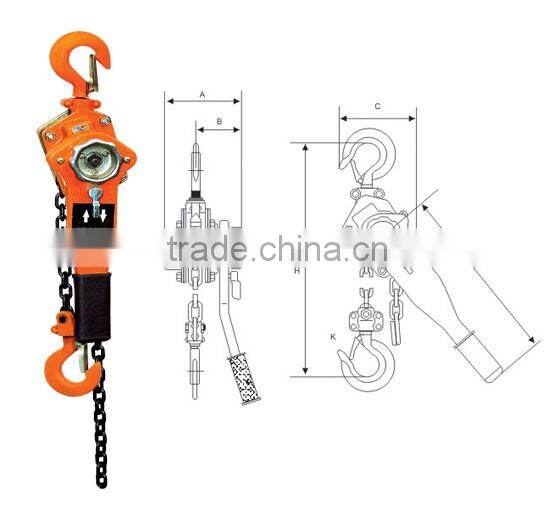

Model |
VA0.25 |
VA0.5 |
VA0.75 |
VA1 |
VA1.5 |
VA2 |
VA3 |
VA6 |
Capacity t |
0.25 |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
6 |
Standard Lift m |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Running test load t |
0.375 |
0.75 |
1.13 |
1.5 |
2.25 |
3 |
4.5 |
9 |
Min distance between hooks |
|
|
325 |
335 |
380 |
380 |
480 |
620 |
Effort required to lift max load N |
|
|
140 |
140 |
220 |
220 |
320 |
3404 |
Diameter of load chain mm |
4 |
5 |
6 |
6 |
8 |
8 |
10 |
10 |
Net weight kg |
|
|
7 |
7.5 |
11 |
12 |
21 |
31 |
Extra weight per meter of extra lift cm |
|
|
0.92 |
0.92 |
1.6 |
1.6 |
2.4 |
4.8 |
Our Service |
1.We can make special sample according to the customer's requirement. |
2.We have more than 50 professional technical team, provide best after-sales service. |
3.Fast delivery time. |
4.We have CE, TUV and SGS certification. |
5.We are professional hoist manufacturer with more than 20 years experience since 1992. |
1. Is your product customized?
Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
a. How much is the maximus lifting weight of the hoist?
b. Have you installed the rails? Do you need us supply the rails? How long is it?
c. Where are the working environment?
