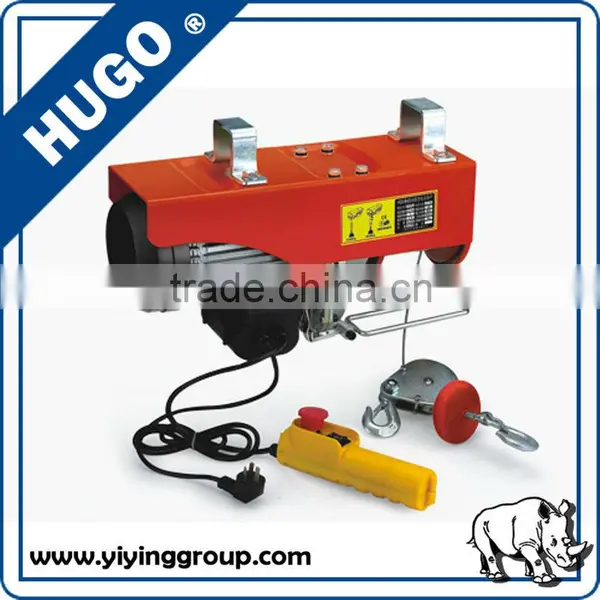

HUGO 500kg Home Used Electric Winch 220v
- 4000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
Explosion proof electric hoist with curved rail on top of LNG storage tank
-
Explosion proof electric hoist with curved rail on top of LNG storage tank
-
Low Head Room Wire Rope Electric Hoist
-
Stage Chain Hoist Fashion Mini Cool Design
-
Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
-
manual door frame pallet stacker
Product Details
| Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | HUGO |
| Model Number: | PA | Usage: | Construction Hoist | Power Source: | Electric |
| Sling Type: | Wire Rope | Maximum Lifting Weight: | 500kg | Maximum Lifting Height: | 12 M |
| Lift Speed: | 10/5 m/min | Certification: | TUV, SGS, CE | Warranty: | 1 year, 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HUGO 500kg Home Used Electric Winch 220v
♣1. Introduction of HUGO 500kg Home Used Electric Winch 220v
1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.
3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use
4.Caged roller bearings on drum center shaft
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.
♣2. Parameters of HUGO 500kg Home Used Electric Winch 220v
Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 230-50hz S3 20% 10 min | ||||||
Input Power (w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Rate Lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
G.W/N.W | 24/22 | 25/24 | 25/33 | 36/34 | 41/38 | 38/36 | 40/38 |
quan/ctn(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |
1. The Mini Order?
We can accept only one piece.
2. About sample
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order
3. About payment
100% TT as deposite, if amount more than 5000usd
Or 30%TT as deposite, balance after B/L copy
4. How long does it take to receive my order?
About 25 Days from we get the down payment, 10 days for sample order.
5. What is the information should I provide when inquiry?
a. How many will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. How high of the lift height?
6. How will my order shipped?
Usually shipped by sea, small order or urget order we can send you by Air or DHL,UPS or Fedex, after received your agreement.
Contact Us
- Shanghai Yiying Crane Machinery Co., Ltd.
- Contact namePhoenix Yue
- Phone86-21-64195879
- AddressRoom 8A03, Meilong Building, No. 81, Dahua 3rd Road
-
