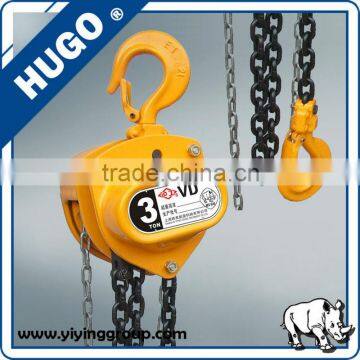

Help CenterMini Crane HSZ-VD Type 3 Ton Chain Block
Related Products
-
HOT SALE!!! 2016 New Price of 0.5ton-20ton High Quality Manual Chain Hoist /chain Pulley BlockUS$ 19 - 50MOQ: 1 Set -
High Quality VD Chain Block, Chain Hoist,US$ 19 - 50MOQ: 1 Set
-
VD Chain Block, Chain Hoist, Manual Chain HoistUS$ 19 - 50MOQ: 1 Set
-
VD Manual Chain BlockUS$ 19 - 50MOQ: 1 Set
-
Chain Block, Chain Pulley BlocksUS$ 19 - 50MOQ: 1 Set
China supplier 5 ton chain pulley block mechanism
| Product Parameter | ||||||||||
| Model | VC-B 0.5 | VC-B 1 | VC-B 1.5 | VC-B 2 | VC-B 3 | VC-B 5 | VC-B 10 | VC-B 20 | VC-B 30 | VC-B 50 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
|
Running test load (t) |
0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 |
|
No.of falls of load chain |
1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 24 |
|
Load chain diameter(mm) |
5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9 |

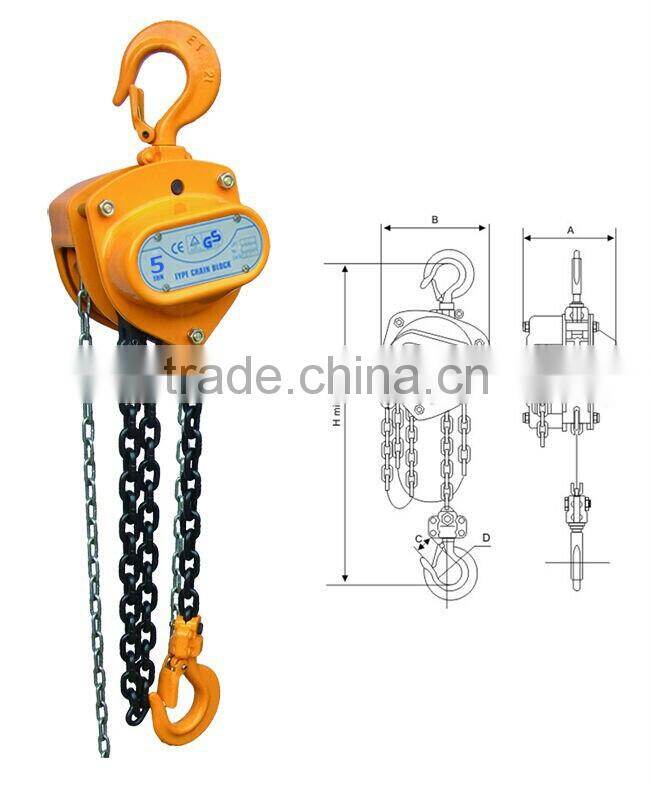

| Dimension(mm) A | 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406 |
| B | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 962 |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 |
| Net weight(kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 |
|
Packing(L*W*H) (cm) |
22x14x15 | 25x19x16 | 33x24x16 | 33x24x19 | 34.5x24x16 | 40x30x19 | 48x4218.5 | 78x68x20 |
85x67x30 |
110x100 x130 |
| Features |
| 1. High quality, economical, safe and reliable hand chain block. |

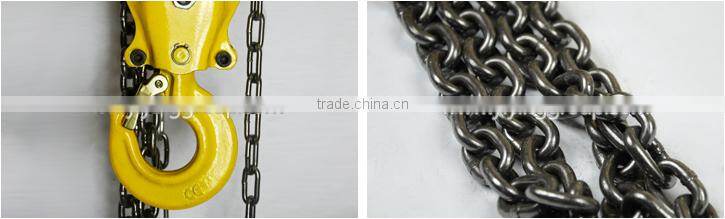

| 2. Featuring a drop forged load hook to prevent snapping when overloading. |
| 3. Factory tested and certified. |
| 4. Heat treated for greater strength and to prevent wear. |
| 5. The opening of the hooks has been made wider for easier handling and working. |
| 6. Reliable disk brake and premium grade alloy chain. |
| 7. Heat treated for greater strength and to prevent wear. |

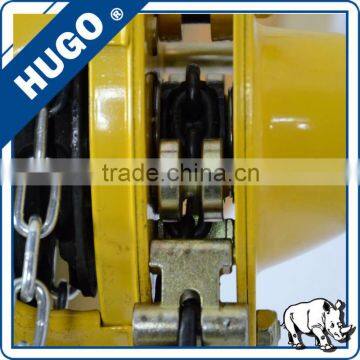

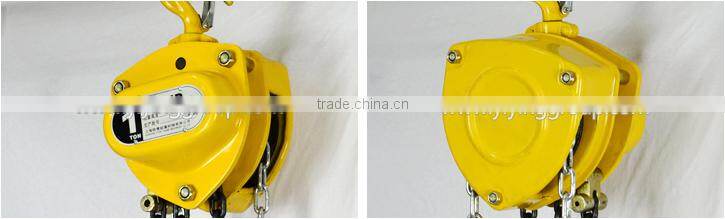

Physical diagram shows
CE ISO TUV SGS certificate
| Our Service |
| 1. We can make special sample according to the customer’s requirement. |
| 2. We have more than 50 professional technical team, provide best after-sales service. |
| 3. Fast delivery time. |
| 4. We have CE, TUV and GS certification. |
1. What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. About 10-20days will be finished. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
2. What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost effective for you .
3. Which payment terms will you receive ?
T/T, L/C, Western Union.
4. How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.All products will be well packed before shipping .
5. How long is the warranty ?
The whole machine of all our products have 24 months warranty , and we sure the product will be free from maintenance within warranty period .Low charge for continue maintenance when warranty is expired.
