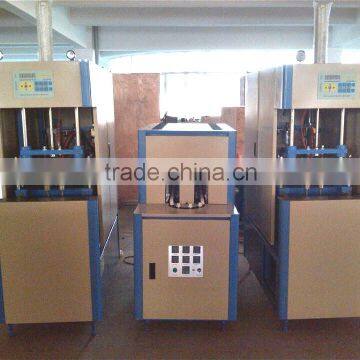

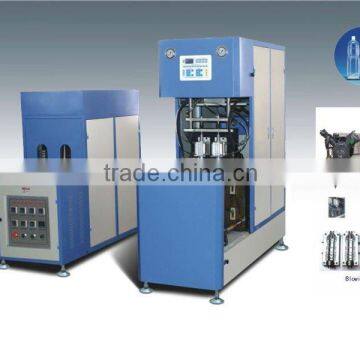

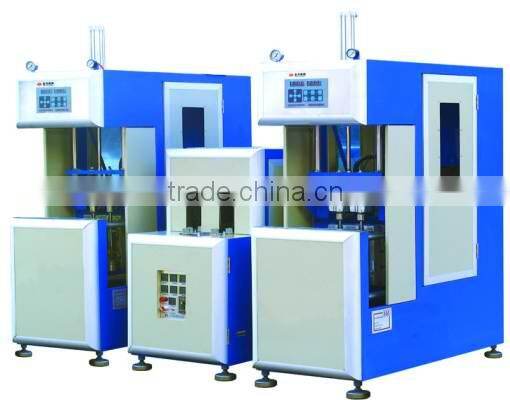

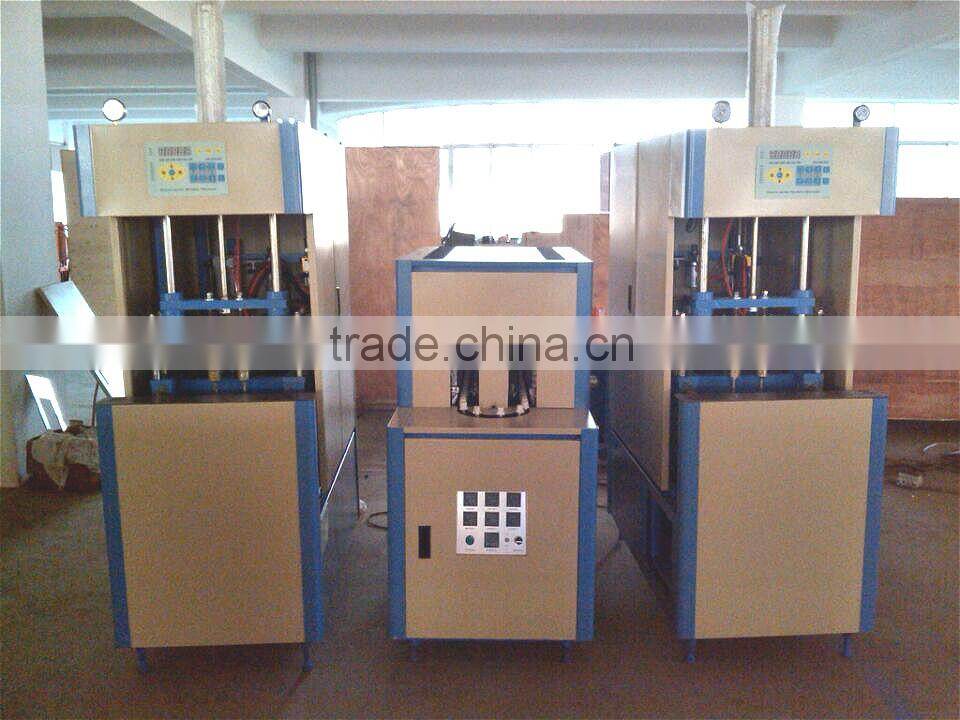

HZ-880S plastic bottle blowing machine(pet bottle blowing machine,bottle moulding machine)
Product Description:

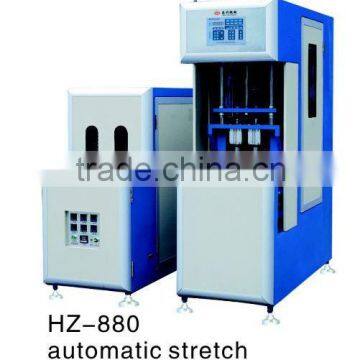

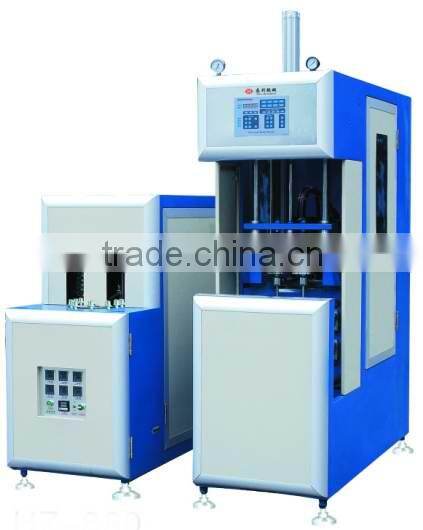

HZ-880 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottlescarbonater soft drink bottlesjuice bottlesmedical bottiescosmetic and oil bottles etc.
1Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5Operated step-by-step and in semi-auto maode.
6Wide-mouth jar and hot-fill bottles can also be made
Specification:
TYPE |
ITEM |
MEASUREMENT |
HZ-880 Combined type |
HZ-880 Standard type |
END PRODUCT |
Material |
/ |
PET/PP/PE/PC |
PET/PP/PE/PC |
Volume |
L |
0.05-2.5(2-cavity)
3-6(1-cavity)
|
0.05-2.5 (2-cavity)
3-6 (1-cavity)
|
|
Theoretical output |
Pcs/h |
0.05-2.5L/1700
3-6L/800
|
0.05-2.5L/850
3-6L/400
|
|
Max.length |
mm |
360 |
360 |
|
max.diameter |
mm |
180 |
180 |
|
MOULD PLATE |
Max.mould plate dimension(L×H) |
mm |
420×500 |
420×500 |
Max.mould thickness |
mm |
160-240 |
160-240 |
|
Clamping force |
KN |
90 |
90 |
|
Mould opening stroke (adjustable) |
mm |
200 |
200 |
|
AUXILARY |
High pressure
Compressor M3/Mpa
|
KW |
>=0.70/3.0×1set 22 |
>=0.7/3.0×2sets 22 |
Precision air filters |
M3/Mpa |
>=1.0/3.0×2pcs |
>=1.0/3.0×2pcs |
|
MAIN MACHINE ELECTRICITY |
Power |
KW |
12 |
12 |
Voltae/Frequency |
V/HZ |
220-380/50-60 |
||
MACHINE SIZE AND WEIGHT |
Main body dimension(L×W×H) |
M |
1.45×0.6×1.75 |
1.45×0.6×1.75 |
Main body weight |
T |
0.6 |
0.6 |
|
Conveyor dimension(L*W*H) |
M |
1.40×0.62×1.25 |
1.40×0.62×1.25 |
|
Conveyor weight |
T |
0.22 |
0.22 |
|
SAFTY |
Auto-emergency alarm |
SAFETY INTER-LOCKING DEVICE |
||
FOLLOWING DEVICES ARE OPTIONAL:

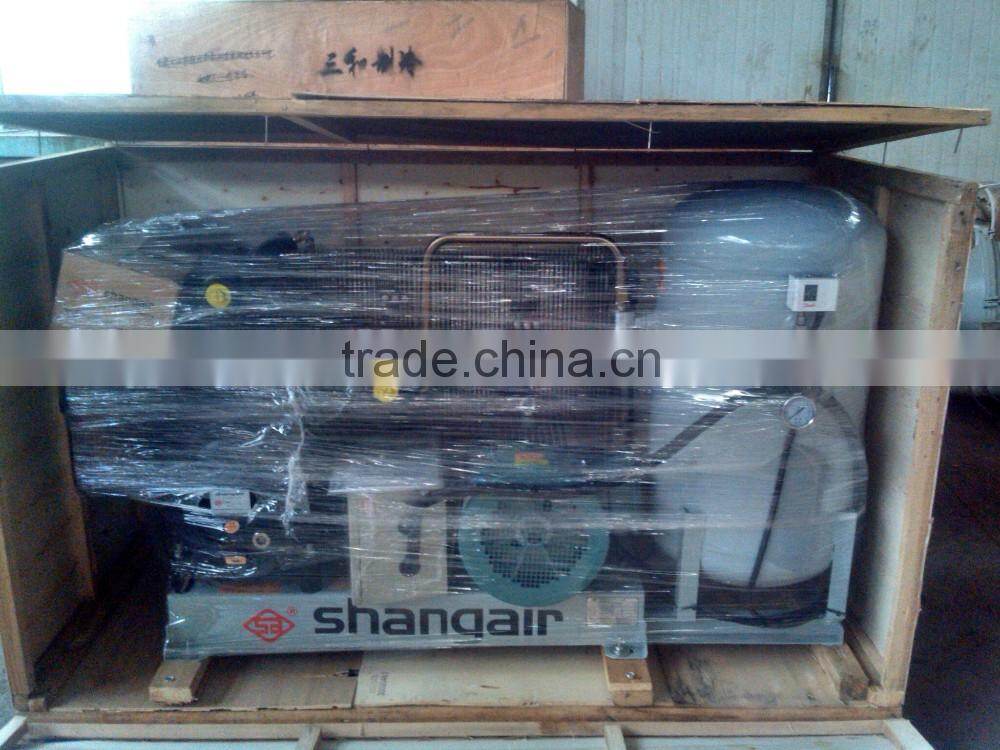

1. 1.20/30 AIR COMPRESSOR

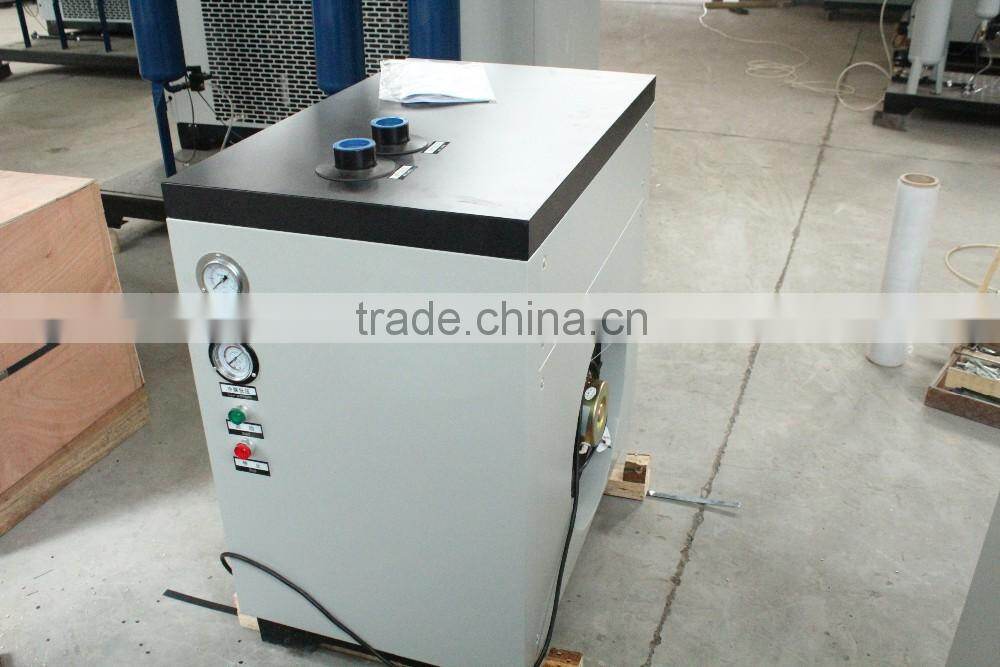

2. AIR DRYER

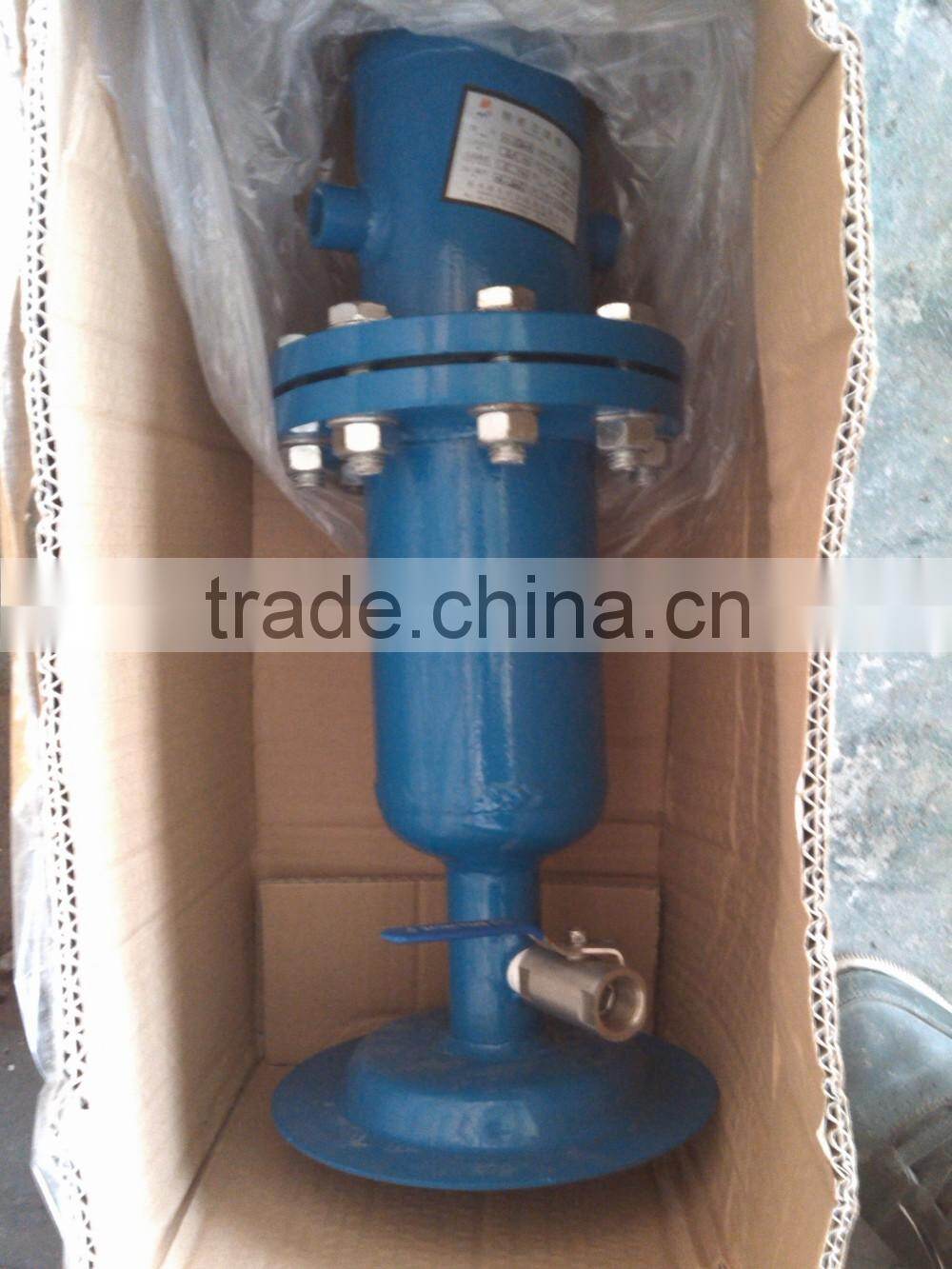

3. FILTER
