Help CenterColor Touch Screen BACnet Thermostat
Negotiable
MOQ: 50 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
E-top
Model Number:
HT-CS02
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
E-top
Model Number
HT-CS02
Type
Floor Heating Parts
Floor Heating Part Type
Floor Heating Thermostats
Specifications
Color Touch Screen BACnet Thermostat1. Color Touch Screen Thermostat
2. BACnet Thermostat
3. Four Languages
4. CE
Color Touch Screen BACnet Thermostat

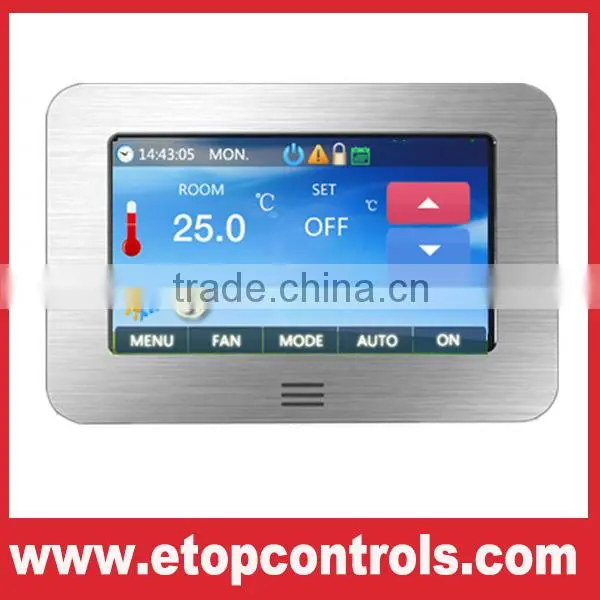

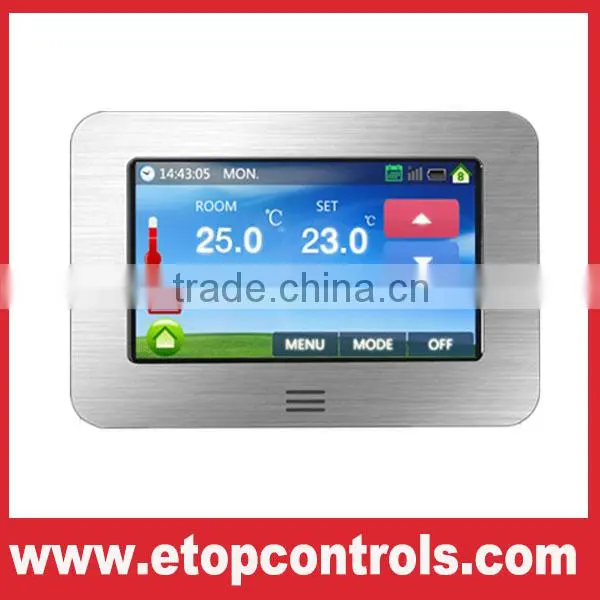

- This Thermostat is a Bacnet thermostat, which is designed for electric floor heating system or water heating system. Using 4.3inch color touch LCD display, the working status can be easily understood. With built-in four languages, you can select the languages you want to display.
- With five modes, the system can work according to your desired pre-set temperature conveniently. And the 5+1+1 days programmable function, which is easy-to-program on/off settings per day.
- Simple regulation which sends On/Off commands to the heating system according to a pre-selected temperature variation. The thermostat control algorithm includes an anticipation function which reduces the discrepancy between the thermostat reading and the temperature at the centre of the room.
- Choose from three (3) sensor setting: Ambient (built-in sensor)- to control the air temperature; Floor - to control the temperature using the floor probe; Ambient and Floor - to control the ambient air, and show floor temperature by using the floor probe.
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
1 |
4.3inch Color Touch Screen Operation |
2 |
Adjustable water heating system and electric heating system |
3 |
Adjustable 3A/16A |
4 |
With BACnet communic |
5 |
5+1+1 Weekly Programmable |
6 |
OEM Service |
Power Supply |
220V,110V,24V,50/60Hz |
Usage |
Electric hating system(max16A) Water heating system(max3A) |
Load Current |
3A or 16A |
Network |
BACnet |
Power Consumption |
1.5W |
Set point range |
10~30°C |
Accuracy |
±1°C |
Ambient |
0~50°C |
Housing |
ABS fire-resistant plastic |
Others |
High temp. Protection Temp.offset |
