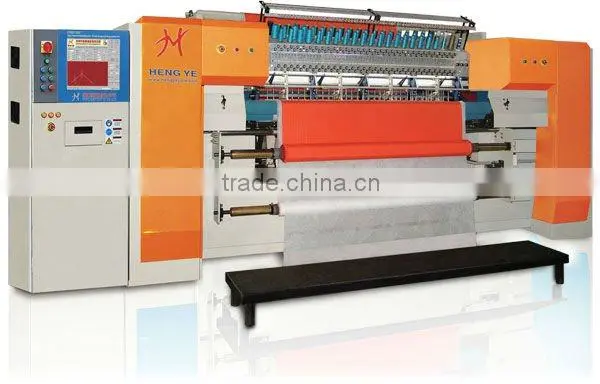

Computerized Lock Stitch Multi-needle Quilting Machine (multi-span)

Name: Computerized Lock Stitch Multi-needle Quilting Machine (multi-span)
Brand: HENGYE (HY)
SKU: 100657967
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HENGYE (HY)

Model Number:

HY-XS64-2,HY-XS128-2

Hengye Machinery Co., Ltd. Of Dongguan City

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HENGYE (HY)

Model Number HY-XS64-2,HY-XS128-2

Specifications

It is widely used for quilting high-quality bedding covers,quilt covers,garments,seat-covers& household ornaments.

Detail information:

Front and back needle bar structure with the minimum needle space-1 inch
The moving structure of needle bar is without needle post to avoid dirtying the materials
Compared with embroidery needle head, moving structure without needle post is more durable and can save more maintenance expenses
Quilting and embroidering in one time
Based on CAD drawing, simple learning and easy operation
Different patterns in each line can be quilted on 3.2m fabric and patterns can strongly combine.
Large storage that can save 1000 patterns
Running state testing and indicating in order to show how the machine works
Top thread break can be tested by advanced and practical testing function
Automatic needle-lifting and digital speed adjustment

Parameter Unit ( mm )

Specification	HY-XS64-2	HY-XS128-2
Dimension (LWH)	393011002170	58009801950
Speed(RPM)	250~600	250~600
Stitch length(mm)	0.15-12.7mm	0.15-12.7mm
Rotating shuttle	big-size	big-size
Needle bar	2bars	2bars
Needle layout	Every other slot in parallel	Every other slot in parallel
Horizontal needle space	50.8mm(2inches)	50.8mm(2inches)
Vertical needle space	76.2mm(3inches)	76.2mm(3inches)
Needle quantity every bar	32(PCS)	64(PCS)
The maxium length of needle bar	1625mm(64inch)	3276mm (129inch)
X-axis Movement Distance	205mm(8inch)	305(12inch)
Pattern length	203.2mm(8inch)	304.8mm(12inch)
Stitch quantity	1,200,000stitches	1,200,000stitches
Pattern Stock	1000pcs	1000pcs
Power	4.62kw	5-6.5kw
Power supply	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Gross weight	2200KG	3000KG
