Computerized Panel Cutter Machine

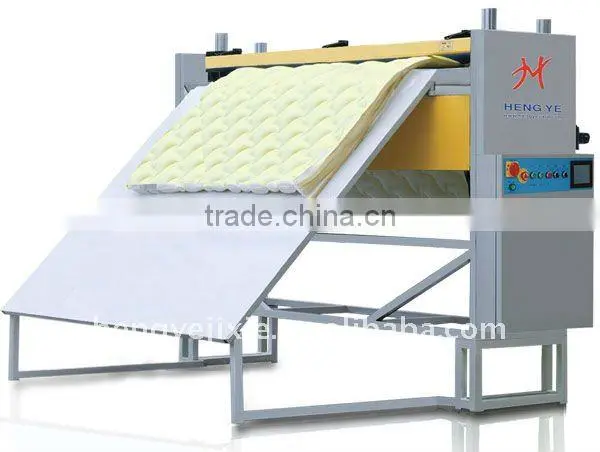

Computerized Panel Cutter Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HENGYE MACHINERY (HY)(HENGYE)
Model Number:
HY-QG-2
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HENGYE MACHINERY (HY)(HENGYE)
Model Number HY-QG-2

Specifications

Purpose: It is used to crosscut ,slitting and edge trimming the quilted fabric ,It can run with the quilting machine, also alone





Detail Information:



  • 5.6''Panasonic touch-screen MMI, large screen and easy to operate.
  • CE certificate for all the electrical parts used, which greatly guarantees the long life of the machine.
  • Slittering blade equipped with safety protection cover, which further improved the security performance of the machine.
  • Electric controlling for side blade and pneumatic sharpening device, which humanized the operation.
  • Cross cut in one time, which shorten the time for round-way movement of crosscut blade.
  • With thin material detecting devices, sound effects even for processing margin trim of 5mm thickness materials.
  • Rollers adopted with the pneumatic tensioning device, material rolling will be much quickly and leveling off.
  • Feed-in top Snubber roller adopt toothed synchronous material feeding technology, then the pressure will be even , and feeding will be leveling off.
  • The length detecting sensor can be quickly and accurately adjusted through the manual wheel. It is very suitable for those customers who frequently change the length of tailoring.
  • Box-shape machine body, advanced design, precise cutting, higher efficiency.
Technical Parameter:

Range

The max X dimension

The min X dimension
Edge trim 2400mm 1800mm
Slitters 2450mm 55mm

Range

The max Y dimension

The min Y dimension

Cross cut 2200mm 500mm

Thickness 3-80
speed 7.5(m/min)
power 1.5/kw
prwer supply 380v/50hz
220v/60hz
machine dimension(LxWxH) 3330x1030x2355
weight 1000kg
operating air preasure 0.4-0.8mpa
