Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Rongxin | Model Number: | RX-1-240 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

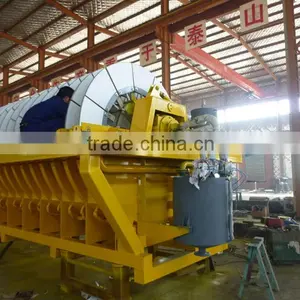

RX precise vacuum filter combines mechanical and electric machine,ceramic tube with micro-hole and ultrasound,depending on vacuum suction and capillary function,under pressure difference,the filter cake will be formed on the surface of ceramic filter plate when the slurry go through the ceramic filter,at the same time,the water will run out through the filter medium to achive the purpose of the solid-liquid separation.Ceramic filter have the advantage of high efficiency,lower production cost,energy-saving and environmental protection and so on,the ceramic filter is widely used for mine,metallurgy,chemical industry and environmental protection industry.
Rongxin filter | RX30-10 | RX60-15 | RX80-16 | RX144-12 | RX240-20 | |
Disc dia | mm | 1900 | 2180 | 2210 | 3812 | 3812 |
Main dimensions, length | mm | 5800 | 7100 | 7680 | 9060 | 12260 |
Main dimensions, width | mm | 3170 | 3400 | 3595 | 5200 | 5200 |
Main dimensions, height | mm | 2526 | 2880 | 3205 | 4800 | 4800 |
Weight | kg | 9000 | 14000 | 17500 | 47000 | 69000 |
Installed power | kw | 26.63 | 46.28 | 57.26 | 100 | 145 |
Power consumption | kw | 20 | 37 | 46 | 70 | 100 |
Characteristics:
1.High vacuum degree(0.09-0.098MPa),filter cake has low water content.
2.Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.
3.It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.
4.Filter cake cleaning process is added to clean proper materials.
5.It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.
6.Compact structure,covering less floor area,conventient installation and maintenance.
7.Advanced drainage system fits for any working conditons.
Jiangsu RongXin Environmental Protection Equipment Science and Technology Co., Ltd, with registered capital of 20 million, is a new high-tech enterprise with high-tech products, and specialized in developing, producing and sales of products for mining, beneficiation dehydration, environmental protection, etc.
Rongxin’s main products are Ceramic Vacuum Filter, Ceramic Scraper, Ceramic Friction Ring. Our products have fine and trusted quality. They have achieved very good performances in major steel mills and dewatering operations in mining companies of both ferrous and non-ferrous mines. Rongxin’s products have been exported to Chile, South Africa, Zambia, Australia, Kazakhstan, India and other countries and regions. Rongxin is focusing on constantly improving the quality of both our products and services. We work with customer-centric spirits to meet our customer’s individual needs.
Presently our company is manufacturing 240m2 ceramic filters, the largest one in the world, to meet market demands.
