Help CenterPluggable Terminal Block
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TP381P-23
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pluggable Terminal BlockNegotiableMOQ: 500 Pieces -
Pluggable Terminal BlockNegotiableMOQ: 500 Pieces
-
Pluggable Terminal BlockNegotiableMOQ: 500 Pieces
-
Pluggable Terminal Block 7.62 mm Female PartNegotiableMOQ: 500 Pieces
-
Plug-in Terminal Block 3.81mm Double Rows Phoenix Contact TerminalNegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TP381P-23

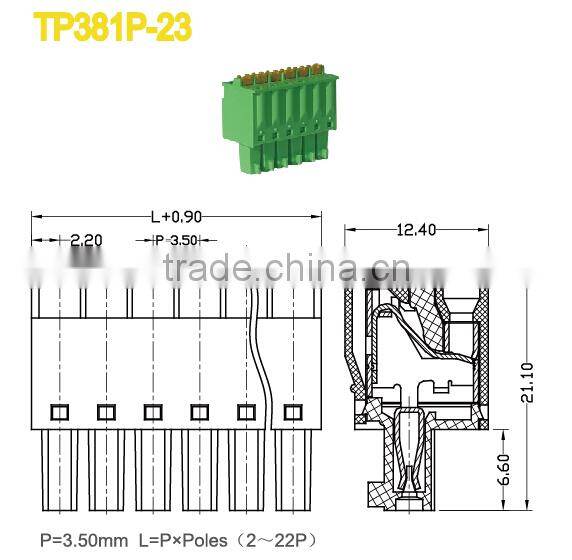

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 |
|
|
Wire Range AWG | 16-30 |
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160/8 | 160/8 | 320/8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Contactor / Plating | Phosphor Bronze/Tin Plated | ||
Screw / Plating |
| ||
Other Data |
| ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in |
| ||
- S table good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
