Plug-in Terminal Block Phoenix Contact
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TP381P-22F
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TP381P-22F

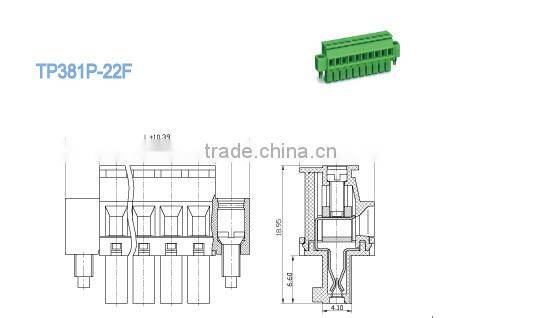

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/8 |
|
|
Wire Range AWG |
16-30 |
|
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
160 / 8 |
160 / 8 |
320 / 8 |
Rated Surge Voltage KV |
2.5 |
2.5 |
2.5 |
Rated Connecting Capacity mm2 |
1.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Contactor / Plating |
Phosphor Bronze / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
7 |
||
Screw / Torque / lbf.in |
M2 / 2-2.2 |
||
- table good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
