Plug-in Terminal Block Pin Header
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TP381H-07V
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pluggable Male Terminal Block Phoenix Contact 3.81mm Pitch VerticalNegotiableMOQ: 500 Pieces -
Pluggable Terminal Block 3.81mm Double Rows Phoenix Contact TerminalNegotiableMOQ: 1000 Pieces
-
Pluggable Terminal BlockNegotiableMOQ: 500 Pieces
-
Plug-in Terminal Block With Flange Phoenix Contact Screw Terminal BlockNegotiableMOQ: 500 Pieces
-
3.81mm Female Pluggable Terminal BlockNegotiableMOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TP381H-07V

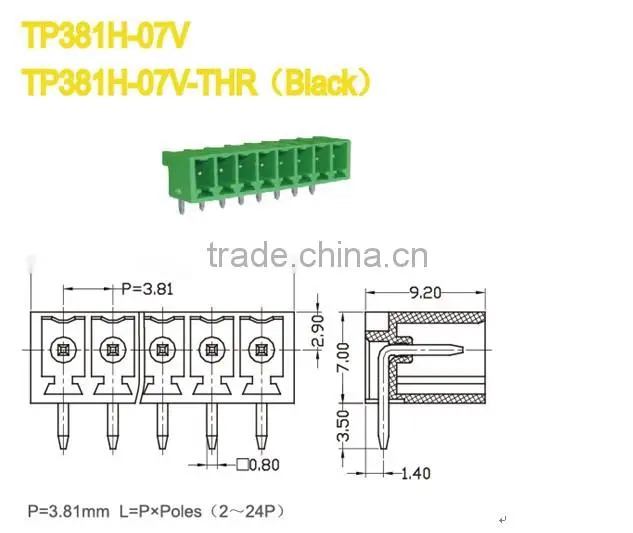

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 |
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.2 | ||
Pin Dimension mm | 0.8 x 0.8 | ||
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
