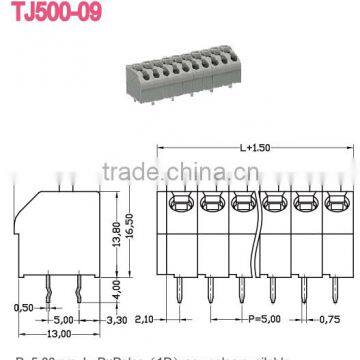

PCB Terminal blocks Spring Pitch 5mm, 300V,10A with steel brass TJ500-09
Parameters
| Model | TJ500-09 | ||
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 /10 | ||
| Wire Range AWG | 14-20 | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 10 | 320 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 1.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Stainless Steel /- | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.3 | ||
| Stripping Length mm | 9-10 | ||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.
1. Trade term: FOB, EXW;
2. Lead time: 3-10 days for sample order, 7-25 days for mass production order
3. Port: Hong Kong, Shenzhen, etc.
4. Shipment: By air, by sea or by express
5. Payment condition: T/T, Paypal , or others.
1.Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
2. Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service;
3. Discount offered is based on qty.
1.Professional in designing, manufacturing and marketing all sorts of terminal blocks,
2.Headquarter located in Shenzhen, founded in 2003,
3.Set up the sub-branch in Suzhou City in 2014,
4.Total more than 800 workers,
5.Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc. All products comply with ROHS, REACH standards
6.Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.
Our honor:
1. Are you a manufacturer or a trader?
We are a terminal block factory.
2. What kind of certificates do you have?
UL, CUL, VDE, CE, CQC
3. What kind of terminal blocks are offered?
There are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.
4. What’s the payment?
We accept bank transfer, TT, Paypal & L/C, or others method.
5. What is lead time?
5-25 working days after receipt of deposit.
6. Is small order available?
Yes, we do not only supply MOQ order, but also small order for trial test or small projects.
7. If we can put my company logo on products?
We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.
8. Is all your products comply with RoHS?
Yes.
9. Do you have your own lab?
Yes, we have professional laboratory meets UL, VDE standards.
