Help CenterPitch 5.0mm 300V 10A PCB Screw Terminal Blocks
Related Products
-
PCB Terminal Blocks Pitch 3.5mm 300V 10ANegotiableMOQ: 500 Pieces -
Euro Type Raising Series Pitch 3.81mm 300V 10ANegotiableMOQ: 500 Pieces
-
Phoenix Contact Terminal Blocks Pitch 3.5mm 300V 10ANegotiableMOQ: 500 Pieces
-
Screwless Terminals Pitch 3.50mm 300V 5ANegotiableMOQ: 500 Pieces
-
Solder Pin Terminal Block Pitch 3.81mm 300V 16ANegotiableMOQ: 500 Pieces
Type: |
PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series |
Pitch: |
5.0mm |
Rated Voltage: |
300V |
Rated Current: |
10A |
Standard Color: |
Green, other color is available |
Number Of Contacts: |
2P-24P |
Wire Range: |
12-26AWG |
Applications: |
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc. |
Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Right angle wire inlet; Vertical wire inlet; 45 degree wire inlet
Single Deck; Double decks; Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

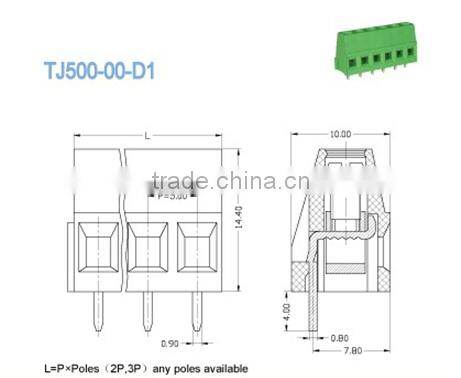

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
12-26 |
|
12-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
300/10 |
|
300/10 |
Wire Range AWG |
12-26 |
|
12-26 |
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
250 / 10 |
400 / 10 |
630 / 10 |
Rated Surge Voltage KV |
4 |
4 |
4 |
Rated Connecting Capacity mm2 |
2.5 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
Clamp Cage / Plating |
Brass / Nickel Plated |
||
Terminal / Plating |
Brass / Tin Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
PCB Hole Diameter mm |
φ1.4 |
||
Stripping Length mm |
6-7 |
||
Screw / Torque / lbf.in |
M3 / 4.4-5.3 |
||
1. Trade term: FOB, EXW;
2. Lead time: 3-10 days for sample order, 7-25 days for mass production order
3. Port: Hong Kong, Shenzhen, Shekou, etc.
4. Shipment: By air, by sea or by express
5. Payment condition: T/T, Paypal, or others.
2. Excellent design team with designers of more than 10 years experiences, can offer professional advice for practical application;
3. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
4. 800 workers, more than 10KK poles mounthly production capacity, the products export to North America, Europe, South America, Asia, etc;
5. Good OEM & ODM business ability, 31 production lines meet your shipping requirement;
6. Location in Shenzhen city and transportation is very convenience, 1-2 hours to Hong Kong or Guangzhou;
7. Discount offered is based on qty;
8. High quality component and material, various of choices depend on your needs;
9.Your order will be dealt with promptly by a friendly and conscientious team, committed to providing a high level of service.
Dear, thanks for your visiting, here SCED is on your service. Will you send me an enquiry for more details?
Professional in designing, manufacturing and marketing all sorts of terminal blocks,
Headquarter located in Shenzhen, founded in 2003,
Set up the sub-branch in Suzhou City in 2014,
Total more than 800 workers,
Have gained UL, cUL, CQC, CE, VDE, TUV , ISO9001, ISO14001, etc.
All products comply with ROHS, REACH standards
Key customers: EMERSON, BOSCH, ABB, PHILIPS, HUAWEI, ZTE, OMRON, SANTAK, SANKENLD, INOVANCE and INVT, etc.
All your inquiries and orders will be taken care by us, we looking forward to your good advice and trade cooperation chances.
Certification
1. Are you a manufacturer or a trader?
We are a terminal block factory.
2. What kind of certificates do you have?
UL, CUL, VDE, CE, CQC
3. What kind of terminal blocks are offered?
They are 10 main series: Euro, Spring, Barrier, Pluggable, High Current Barrier, Through Panel, Feed Through, Perforation, Din Rail, Accessories.
4. What’s the payment?
We accept bank transfer, TT, Paypal & L/C, or others method.
5. What is lead time?
5-25 working days after receipt of deposit.
6. Is small order available?
Yes, we do not only supply MOQ order, but also small order for trial test or small projects.
7. If we can put my company logo on products?
We supply OEM service, it's fine to send goods with your company logo, but need to tool up the new inserts and apply the Multiple-Listing for the certificates.
8. Is all your products comply with RoHS?
Yes.
9. Do you have your own lab?
Yes, we have professional laboratory meets UL, VDE standards.
