Help CenterHigh Current Terminal Blocks
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TR500-00-FaM0
Payment & Shipping
Payment Methods:
Port of Shipment:
Yan Tian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Current Terminal Connectors Pitch 8.10mm 600V 10A Power Terminal Block Screw Terminal Block ConnectorNegotiableMOQ: 200 Pieces -
Terminal Block High Voltage Pitch 7.30mm 600V 10A Power Terminal Block Screw Terminal Block ConnectorNegotiableMOQ: 200 Pieces
-
Terminal Connectors Pitch 7.30mm 600V 10A Power Cable Terminal BlockNegotiableMOQ: 200 Pieces
-
High Current Terminal Connectors Pitch 10.5mm 600V 15A Power Terminal Block Screw Terminal Block ConnectorNegotiableMOQ: 200 Pieces
-
Electric Power Screw Terminal Connectors Pitch 9.5mm 600V 20A Power Terminal Block Screw Terminal Block ConnectorNegotiableMOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TR500-00-FaM0

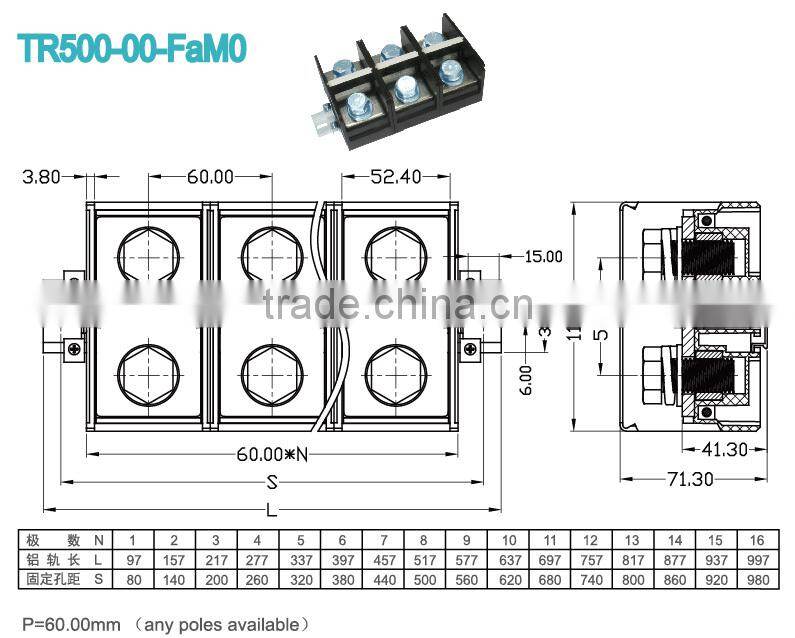

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 500 | 600 / 500 | |
Wire Range AWG | 300-750kcmil | 300-750kcmil | |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 1000 / 500 | 1000 /500 | 1000 / 500 |
Rated Surge Voltage KV | 10 | 10 | 10 |
Rated Connecting Capacity mm2 | 380 | ||
Material |
| ||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board/ Plating | Brass /Nickel Plated | ||
Screw / Plating | Steel /Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 30-35 | ||
Screw Torque mm | M12 /200-213 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
