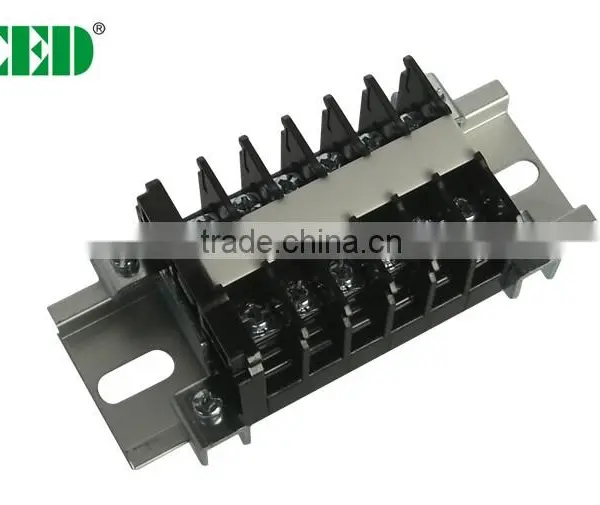

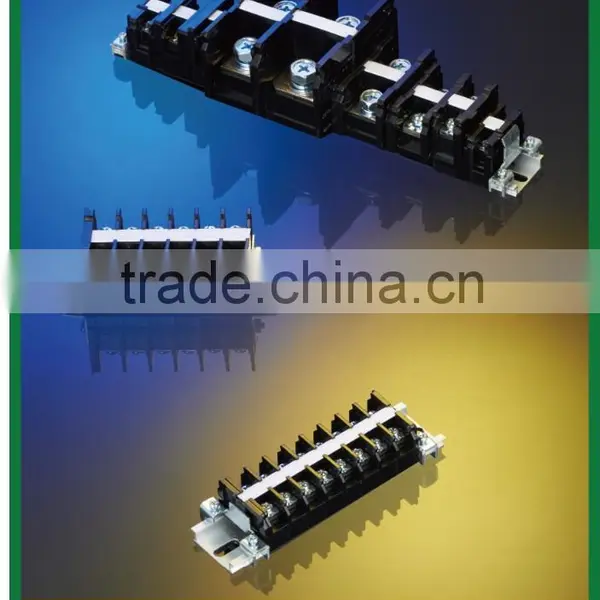

High Voltage Terminal Blocks 600V
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCED
Model Number:
TR10-00-FaM0
Payment & Shipping
Payment Methods:
Port of Shipment:
Yan Tian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Din Rail Mounted Terminal Blocks 600V High VoltageNegotiableMOQ: 100 Pieces -
Heavy Duty Terminal Blocks Frequency Converter ComponentsNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
-
High Current Terminal BlocksNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SCED
Model Number
TR10-00-FaM0

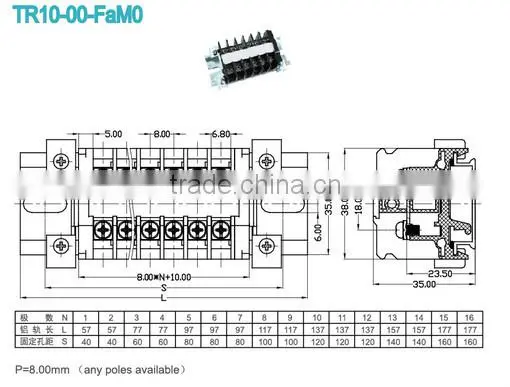

Parameter and Drawing Specifications:
UL Technical Data |
B |
C |
D |
Rated Voltage / Current V/A |
600 / 10 |
600 / 10 |
|
Wire Range AWG |
16-24 |
16-24 |
|
IEC Technical Data |
|
||
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
Contamination Class |
3 |
2 |
2 |
Rated Voltage / Current V/A |
800 /10 |
1000 / 10 |
1000 / 10 |
Rated Surge Voltage KV |
8 |
8 |
8 |
Rated Connecting Capacity mm2 |
1.25 |
||
Material |
|
||
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
Conduction Board/ Plating |
Brass /Nickel Plated |
||
Screw / Plating |
Steel / Zinc Plated |
||
Other Data |
|
||
Stripping Length mm |
5-6 |
||
Screw Torque mm |
M3 / 5.3-7 |
||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2005
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
