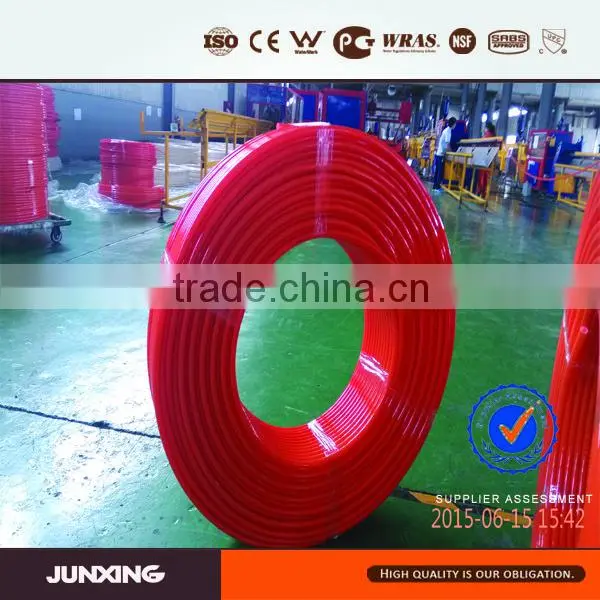

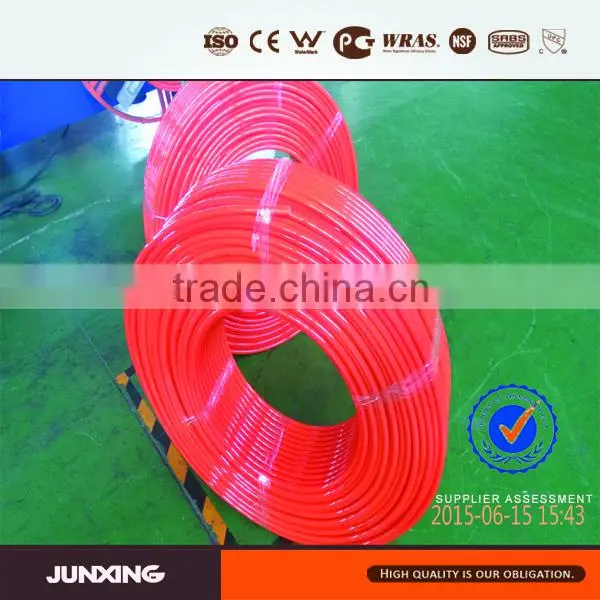

EN22391 standard CE certified evoh under floor heating pert pipes
Anti-oxygen layer can effectively prevent oxygen from entering piping system, protecting PE-RT parts in system for rapid corrosion, suppressing bacterium and algae virology growth in the pipe and ensuring water quality freshly and cleanly.
Data sheet of EN22391 standard CE certified evoh under floor heating pert pipes :
1. Standard: CJ/T175-2002
2. Specifications: dn20-32mm,
200m-300m coil length
4m straight length
3. Color: standard color is same to color of material, red for household, and other colors available upon request.
Technical Requirements of EN22391 standard CE certified evoh under floor heating pert pipes :
1. Excellent thermal stability and heat-resistance quality, it can be used in floor radiant heating system and hot water system.
2. Meet the needs of sanitary drinking water, free of stains and scales, excellent hydraulic pressure resistant performance.
3. The excellent flexibility makes it convenient when paving.
4. Convenient in connection (hot welding connection, mechanical connection)
5. Good ability in heat dissipation and thermal conductivity
| Product | Working Pressure | Size(mm) | Quantity(Meters/Unit) |
|
PEXa pipe, PEXb pipe, PEX/EVOH pipe, PERT pipe, PERT/EOVH pipe. |
S5, 1.25Mpa | 16x1.8 |
5.8Meters, 11.8Meters or customized per piece. |
| 20x2 | |||
| 25x2.3 | |||
| 32x2.9 | |||
| S4, 1.6Mpa | 16x2 | ||
| 20x2.3 | |||
| 25x2.8 | |||
| 32x3.6 | |||
| S3.2, 2.0Mpa | 20x2.8 | ||
| 25x3.5 | |||
| 32x4.4 |
The maximum working temperature for the above pipe is 95 centigrade.
| Product | Working Pressure | Size(mm) | Quantity(Meters/Unit) |
|
PB pipe, PB/EVOH pipe PBR pipe |
S5, 1.25Mpa | 20x2 |
100 to 500 Meters/roll, 5.8Meters, 11.8Meters or customized per piece. |
| 25x2.3 | |||
| 32x2.9 | |||
| 40x3.7 | |||
| 50x4.6 | |||
| S4, 1.6Mpa | 20x2.3 | ||
| 25x2.8 | |||
| 32x3.6 | |||
| 40x4.5 | |||
| 50x5.6 | |||
| S3.2, 2.0Mpa | 20x2.8 | ||
| 25x3.5 | |||
| 32x4.4 | |||
| 40x5.5 | |||
| 50x6.9 |
The maximum working temperature for the above pipe is 110 centigrade.
1. The raw material for our PEXa pipe is LG XL1800 from South Korea.
2. The raw material for our PEXb pipe is LG XL6500 from South Korea.
3. The raw material for our PEXa pipe is LG SP980 from South Korea, SK DX800 from South Korea.
4. The raw material for our PB pipe is LyondellBasell 4235 from Netherland.

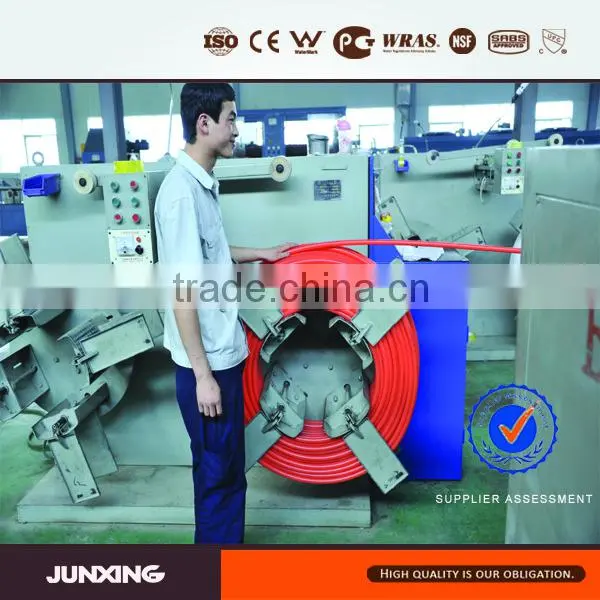

The production line of our underfloor heating pipe is high speed Battenfeld-Cincinnati from Germany.
