Help CenterSDR21 HDPE 12 Inch Dredging Pipe
Related Products
-
Tianjin Flanged Pipe for Sand Slurry DeliveryUS$ 0.22 - 169MOQ: 100 Meters -
JunXing Pipe Group Hdpe Pipe 3 Inch for Water Supply SystemUS$ 0.22 - 169MOQ: 100 Meters
-
ISO Standard Black 100m 200m and 300m Hdpe Roll Pipe for Water SupplyUS$ 0.2 - 169MOQ: 100 Meters
-
Hdpe Pipe Sdr11 for Water Supply PE100 PE80 MaterialUS$ 0.22 - 169MOQ: 100 Meters
-
ISO4427 Large Diameter 1000mm Diameter Hdpe PipeUS$ 0.22 - 169MOQ: 100 Meters
SDR21 HDPE 12 inch dredging pipe
Specification:
Nominal Diameter(mm) |
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.3 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |
The Main Properties of hdpe pipe:
Property |
Item No. |
Unit |
Value |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
0.94-0.96 |
2 |
average molecular weight |
g/mol |
More than 9.0 million |
|
3 |
Tensile strength (23°C in air) |
MPa |
22 |
|
4 |
Breaking strength |
MPa |
42 |
|
5 |
Tensile strain at break |
% |
600 |
|
6 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
|
7 |
Ball indentation hardness |
N/mm2 |
42 |
|
8 |
Shore D hardness |
-- |
D65 |
|
9 |
Abrading(sand slurry experiment) |
-- |
100 |
|

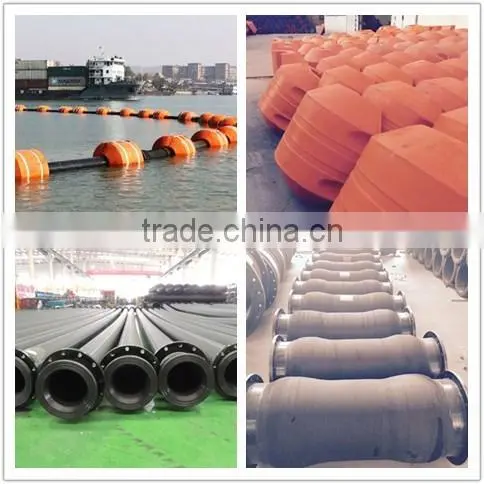

Structure of Entire Dredging Pipeline:
1. Dredging rubber hose:
Dredging rubber mud hose and suction hose are made from natural rubber, strong textile fibers, steel skeleton and synthetic rubber which produced by multi-channel production process. With superior abrasion resistance, high working pressure and strong flexibility, they can be bent freely in the water and used for long time. Flanges are fixed on both sides of the dredging rubber hose ,So it’s easy and quickly to install.
(Total Length≤100000mm;Working Pressure and Flanges can be customized)
2. Floats:
The float is made from the rotational molding by one time. It is made up by strong PVC shell with the special foam filling inside. So It can be attached around the hoses and will never absorb the sea water .Float is very light and easy to be installed;It is flexible and difficult to be broken. Float has big buoyancy so it helps the dredging pipe keep floating on the sea. Float is orange color with eye-catching in order to reduce accidents on the sea.
Specification and size can be customized.
3. High molecular polyethylene dredging pipe:
With non-toxic, odorless ,good heat and cold resistance, this pipe is made from high molecular polyethylene by one time. It has high rigidity and toughness, with little resistance but high mechanical strength. It has ultra-high wear resistance, abrasion degree is 4-8 times of steel pipe, useful life can reach more than five years. It is very light so it’s easy to install and transport and then save construction time.
(Total Length≤120000mm;Working Pressure and Flanges can be customized)
4. Other Accessories:
Flange material: steel forging;
Bolts, nuts and washers: galvanized;
Rubber gasket: NBR (thickness of 5-12mm)
Frequently asked questions
Q:What material of pipe are you specialized in?
A: We manufacture HDPE, PPR, PB, PE-RT, PEX Aluminum composite pipes and fittings.
Q: Do you produce PVC pipes and fittings?
A: Sorry, dear friend. We are more professional HDPE pipe and PPR pipe and fittings, which are more suitable for drinking water as they are more hygienic than PVC material.
Q: Please tell me your largest outer diameter for pipes.
A: We can produce 1600mm diameter (PE pipe) as the largest size.
Q: The price of your products is higher than others.
A: We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec.
Q: For pipe fittings, what do you do mainly?
A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.
Q:Where is your factory located in?
A: Our factory located in Tianjin City, the second largest port in China, which is only one hour away from Beijing airport.
Q: Can you provide us some samples for testing?
A: Of course, my friend. For small amount of samples, we can provide you for free.
Q: How is our customer service?
A: all our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
