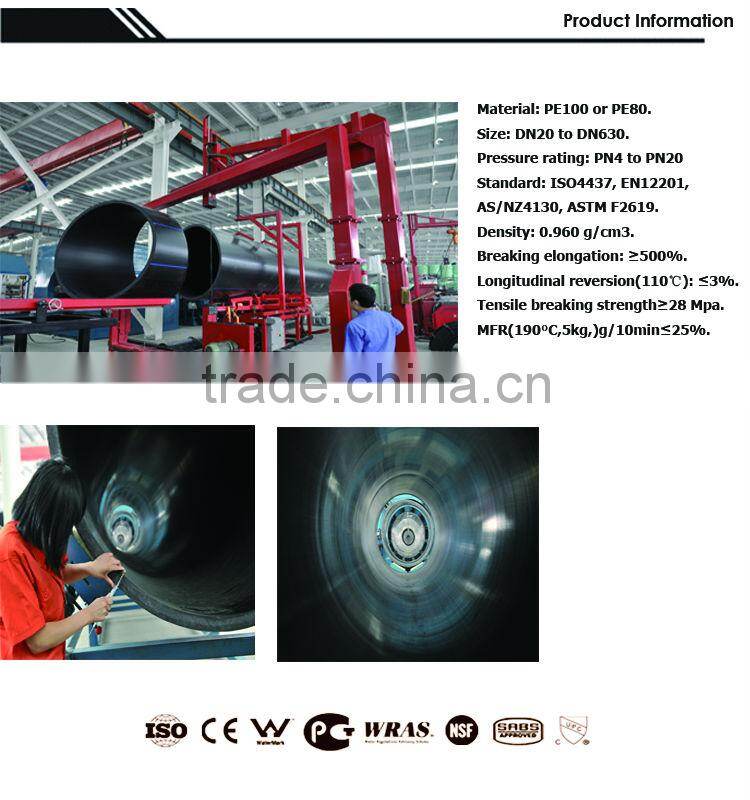

ISO4427 large diameter 1000mm diameter hdpe pipe is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.
The Main Properties of hdpe pipe:
Property |
Item No. |
Unit |
Value |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
0.94-0.96 |
2 |
average molecular weight |
g/mol |
More than 9.0 million |
|
3 |
Tensile strength (23°C in air) |
MPa |
22 |
|
4 |
Breaking strength |
MPa |
42 |
|
5 |
Tensile strain at break |
% |
600 |
|
6 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
|
7 |
Ball indentation hardness |
N/mm2 |
42 |
|
8 |
Shore D hardness |
-- |
D65 |
|
9 |
Abrading(sand slurry experiment) |
-- |
100 |
|
Widely Applications:
1.Urban tap water pipe network system
Large diameter poly pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.
2.Replaceable cement tubes, iron pipe and steel tube
Used for old nets renovation project, don’t need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.
3.Industrial materials duct
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network
Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.
5.Sewage discharge pipes
PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe,low costs and maintenance costs .
6.Ore, mud transfers
PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe
PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
Nominal Diameter(mm) |
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.3 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |
Frequently asked questions
Q:What material of pipe are you specialized in?
A: We manufacture PE, HDPE, PPR, PB, PE-RT, PEX Aluminum composite pipes and fittings.
Q: Do you produce PVC pipes and fittings?
A: Sorry, dear friend. We are more professional PE and PPR pipe and fittings, which are more suitable for drinking water as they are more hygienic than PVC material.
Q: Please tell me your largest outer diameter for pipes.
A: We can produce 1600mm diameter ( poly pipe ) as the largest size.
Q: The price of your products is higher than others.
A: We can't promise you the best price, but we can promise you the best quality. We import raw material from famous companies such as Borstar, LG Chemical, Chervrom, Hyosung, Lydellbasell, Sinopec.
Q: For pipe fittings, what do you do mainly?
A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap and copper insert fittings are our main products.
Q:Where is your factory located in?
A: Our factory located in Tianjin City, the second largest port in China, which is only one hour away from Beijing airport.
Q: Can you provide us some samples for testing?
A: Of course, my friend. For small amount of samples, we can provide you for free.
Q: How is our customer service?
A: all our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
