Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module

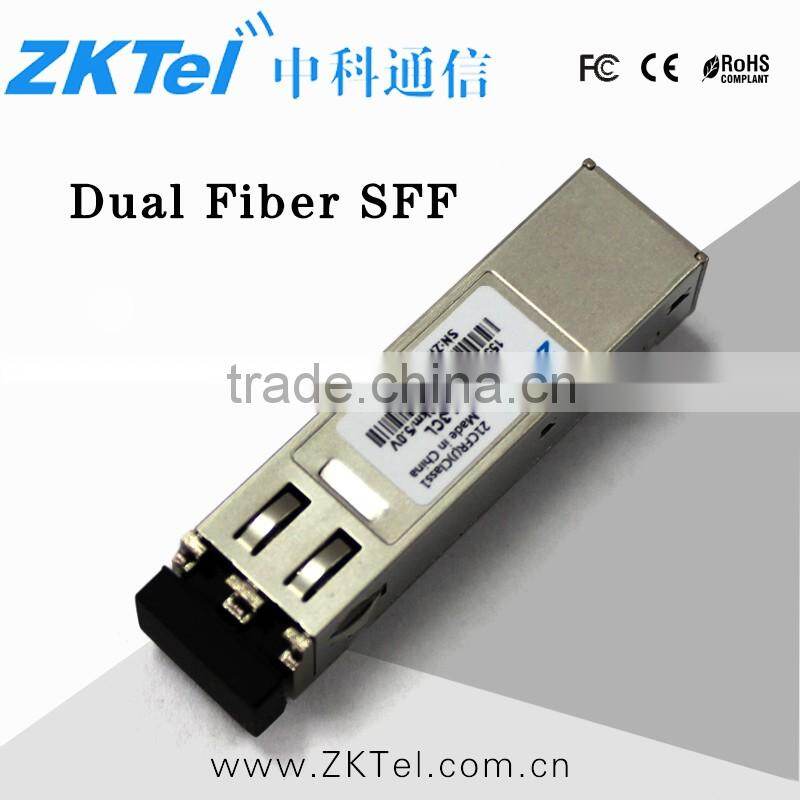

SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module

Name: SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module
Brand: ZKTel
SKU: 100621241
Availability: InStock

SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module thumbnail-1

SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module thumbnail-2

SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module photo-1

SFF2*10 LX 622Mbps Dual Fiber 1310nm SM SC Transceiver 10Km CT Optical Module photo-2

US$ 4 - 8 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

ZKTel

Model Number:

ZD4B102-3CS

Contact Supplier Request Quote Chat Now

Shaoxing ZKTel Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name ZKTel

Model Number ZD4B102-3CS

Product Description

SFF2*10 LX 1310nm 622Mbps 10Km

622Mbps Dual fiber SFF2*10 1310nm SM SC Transceiver 10Km 0~70℃

1. Features

SFF Duplex LC Transceiver

Industry Standard 2*10 footprint with LC Receptacle

Compliant with SFF MSA-2000

Transmitter FP 1310nm Laser and Receiver PIN+TIA

Single +3.3 Power Supply

LVPECL Differential Inputs and Outputs

LVPECL or LVTTL Signal Detection Output is Optional

Complies with Telcordia (Bellcore) GR-468-CORE

Typical data rate 622Mbps

Up to reach 10Km transmission distance

2. Application

Gigabit Ethernet

Fiber Channel

3.Order Information

Package	Part No.	Data Rate Range	Wavelength	Optical Components	Distance Range	Connector	Case Temp.
SFF 2*10	ZD4B021-xxL	up to 155Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*10	ZD4B151-xxL	up to 155Mbps	1310nm	FP/PIN	15km	LC	Com./Ind.
SFF 2*10	ZD4B401-xxL	up to 155Mbps	1310nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4B601-xxL	up to 155Mbps	1310nm	FP/PIN	60km	LC	Com./Ind.
SFF 2*10	ZD4DA01-xxL	up to 155Mbps	1310nm	DFB/PIN	100km	LC	Com./Ind.
SFF 2*10	ZD4C801-xxL	up to 155Mbps	1550nm	FP/PIN	80km	LC	Com./Ind.
SFF 2*10	ZD4EA01-xxL	up to 155Mbps	1550nm	DFB/PIN	100km	LC	Com./Ind.
SFF 2*10	ZD4EA21-xxL	up to 155Mbps	1550nm	DFB/PIN	120km	LC	Com./Ind.
SFF 2*10	ZD4B022-xxL	up to 622Mbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*10	ZD4B152-xxL	up to 622Mbps	1310nm	FP/PIN	15km	LC	Com./Ind.
SFF 2*10	ZD4D402-xxL	up to 622Mbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4C402-xxL	up to 622Mbps	1550nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4E802-xxL	up to 622Mbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*10	ZD4AM53-xxL	up to 1.25Gbps	850nm	VCSEL/PIN	≤0.550km	LC	Com./Ind.
SFF 2*10	ZD4B023-xxL	up to 1.25Gbps	1310nm	FP/PIN	2km	LC	Com./Ind.
SFF 2*10	ZD4B103-xxL	up to 1.25Gbps	1310nm	FP/PIN	10km	LC	Com./Ind.
SFF 2*10	ZD4B203-xxL	up to 1.25Gbps	1310nm	FP/PIN	20km	LC	Com./Ind.
SFF 2*10	ZD4B303-xxL	up to 1.25Gbps	1310nm	FP/PIN	30km	LC	Com./Ind.
SFF 2*10	ZD4D403-xxL	up to 1.25Gbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4E403-xxL	up to 1.25Gbps	1550nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4E803-xxL	up to 1.25Gbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*10	ZD4GA03-xxL	up to 1.25Gbps	1550nm	DFB/APD	100km	LC	Com./Ind.
SFF 2*10	ZD4GA23-xxL	up to 1.25Gbps	1550nm	DFB/APD	120km	LC	Com./Ind.
SFF 2*10	ZD4GA63-xxL	up to 1.25Gbps	1550nm	DFB/APD	160km	LC	Com./Ind.
SFF 2*10	ZD4AM34-xxL	up to 2.125Gbps	850nm	VCSEL/PIN	≤300m	LC	Com./Ind.
SFF 2*10	ZD4B024-xxL	up to 2.488Gbps	1310nm	FP/PIN	2≤km	LC	Com./Ind.
SFF 2*10	ZD4D154-xxL	up to 2.488Gbps	1310nm	DFB/PIN	15km	LC	Com./Ind.
SFF 2*10	ZD4D404-xxL	up to 2.488Gbps	1310nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4C404-xxL	up to 2.488Gbps	1550nm	FP/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4E804-xxL	up to 2.488Gbps	1550nm	DFB/PIN	80km	LC	Com./Ind.
SFF 2*10	ZD4AM16-xxL	up to 4.25Gbps	850nm	VCSEL/PIN	≤150m	LC	Com./Ind.
SFF 2*10	ZD4B056-xxL	up to 4.25Gbps	1310nm	FP/PIN	5km	LC	Com./Ind.
SFF 2*10	ZD4D106-xxL	up to 4.25Gbps	1310nm	DFB/PIN	10km	LC	Com./Ind.
SFF 2*10	ZD4D206-xxL	up to 4.25Gbps	1310nm	DFB/PIN	20km	LC	Com./Ind.
SFF 2*10	ZD4D406-xxL	up to 4.25Gbps	1550nm	DFB/PIN	40km	LC	Com./Ind.
SFF 2*10	ZD4G806-xxL	up to 4.25Gbps	1550nm	DFB/APD	80km	LC	Com./Ind.
