DJT Series Circular Duct Fan With High Pressure Silent Duct Fan

DJT Series Circular Duct Fan With High Pressure Silent Duct Fan thumbnail-1
DJT Series Circular Duct Fan With High Pressure Silent Duct Fan photo-1
Negotiable MOQ: 250 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Ventilation Fan
Installation:
Other, duct
Contact Supplier Request Quote Chat Now
Popula Fan Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan/Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Power Source Electric
Type Ventilation Fan
Installation Other, duct
Material Metal
Power (W) 60
Voltage (V) 220
Brand Name AMX
Model Number DJT10-A
Place of Origin Guangdong, China

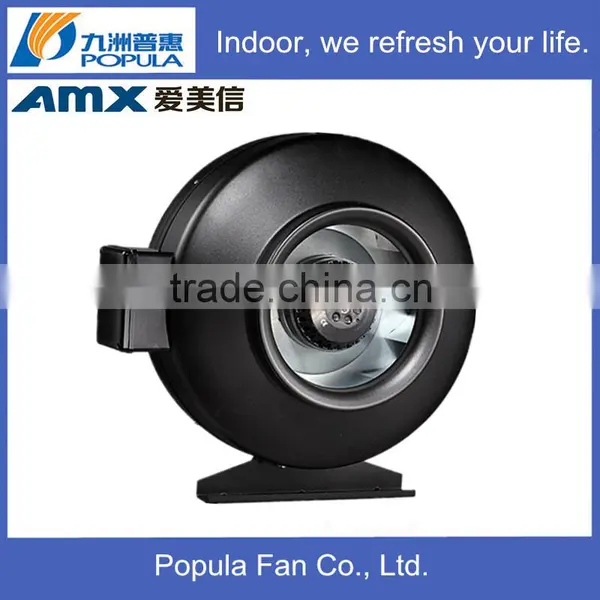

 DJT Series Circular Duct Ventilation Fan

   DJT Series Circular Duct Fan with High pressure Silent Duct Fan

* High Efficiency

* High Pressure

* Long-range Air Supply



Feactures:

* Circular fan body, directhly connected with duct, easy for installation.

* Backward impeller with outer rotor motor, high pressure, high efficiency.

* Invisible construction, give you a fresh and beautify life.

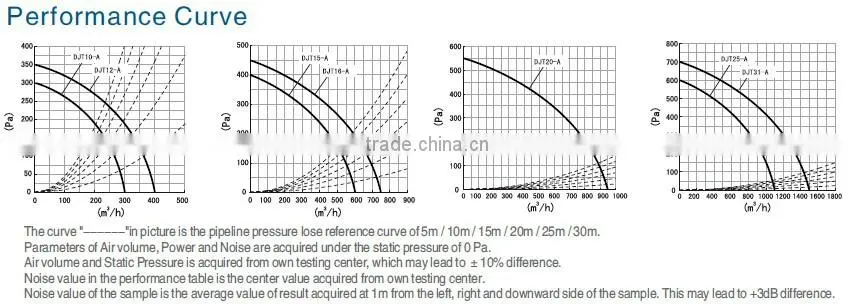

 Performance Table


Model

(No.)

Voltage

(v)

Frequency

(Hz)

Power

(w)

Volume

(m3/h)

Static Pressure

(Pa)

Noise

(dB)

Duct Size

Φ(mm)

Applicable Area

(m2)

Net Weight

(kg)
DJT10-A  220~240  50~60  65

 300

  300  50  100  12-24  3
  DJT12-A   220~240   50~60  70  400  350  48  125  16-32  3
  DJT15-A   220~240   50~60  80  600  400  50  150  24-48  4.5
  DJT16-A   220~240   50~60  95  750  450  49  160  30-60  4.5
  DJT20-A   220~240   50~60  130  950  550  52  200  38-76  5.5
  DJT25-A   220~240   50~60  150  1050  600  47  250  42-84  5.5
DJT31-A   220~240   50~60  190  1500  700  51  315  60-120  6.5

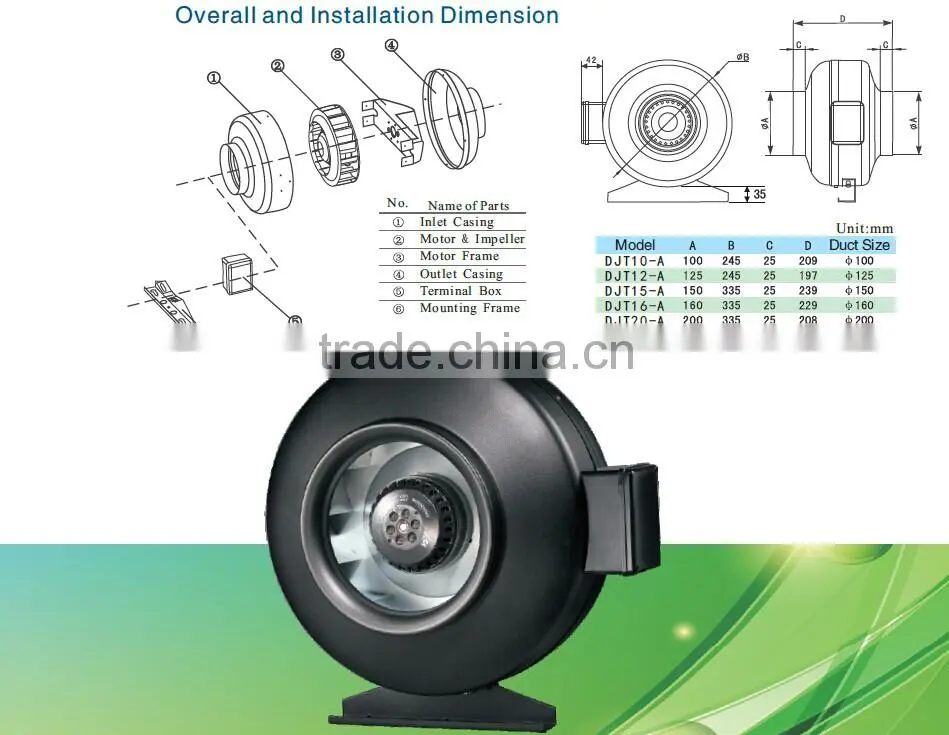

 Technical Datas



DJT Series Circular Duct Fan with High pressure Silent Duct Fan

DJT Series Circular Duct Fan with High pressure Silent Duct Fan
