Home > Products > Ventilation Fan > 2016 Window Mounted Axial Fan for Bathroom
2016 Window Mounted Axial Fan for Bathroom
- 200 Piece / Pieces per Month
- Foshan
Product Details
Electric Current Type: | AC | Mounting: | Other, window mount | Blade Material: | Plastic |
Place of Origin: | Guangdong, China | Brand Name: | AMX | Model Number: | APC10-C1 |
Voltage: | 220-240V | Power: | 15w | Air Volume: | 100 |
Speed: | 1450r/min | Certification: | CCC | After-sales Service Provided: | Overseas third-party support available |
Product Description

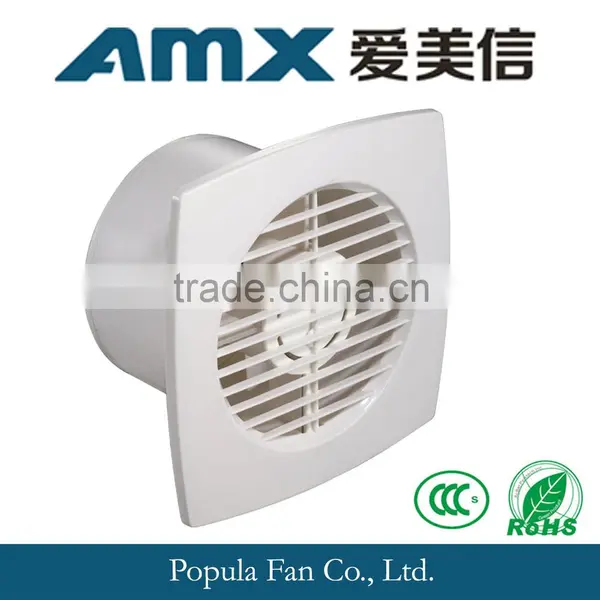

2016 Window Mounted Axial Fan for Bathroom
Features
Our Window mounted Ventilation Fan adopts brand-new designed bended sweep impeller and ball bearing motor, with the features of high pressure, large air volume and low noise.

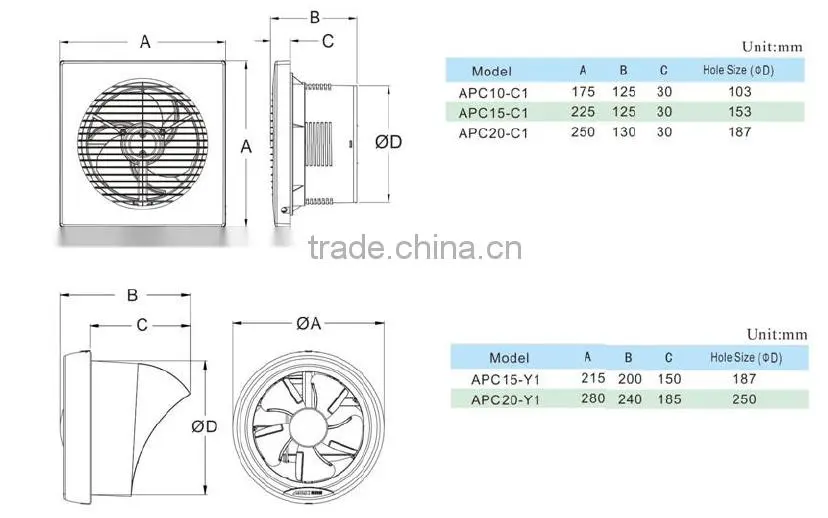

Performance Table
Model No. | Vol./Freq (V/Hz) | Volume (m3/h) | Power (W) | Noise (dB) | Overall Size L*W*H(mm) | Panel Size (mm) | Hole Size (mm) | N.W. (kg/unit) |
APC10-C1 | 220/50 | 100 | 15 | 40 | 175*175*125 | 175*175 | Φ 103 | 0.7 |
APC15-C1 | 220/50 | 200 | 20 | 42 | 225*225*125 | 225*225 | Φ 153 | 0.9 |
APC20-C1 | 220/50 | 300 | 25 | 45 | 250*250*125 | 250*250 | Φ 187 | 1.5 |

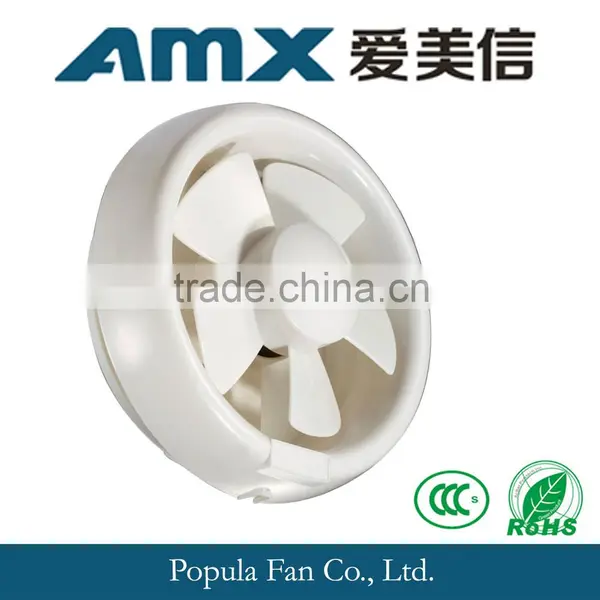

APC15-Y1 | 220/50 | 200 | 15 | 40 | Φ 215*200 | Φ215 | Φ 187 | 0.9 |
APC20-Y1 | 220/50 | 300 | 20 | 42 | Φ279*240 | Φ 279 | Φ 250 | 1.5 |
