3 axles 50cbm oil transport tank semi trailer

Specifications

3 axles 50cbm oil transport tank semi trailer
stainless steel
28ton support leg
ABS
compartment optional

3 axles 50cbm oil transport tank semi trailer



The oil transport tank semi trailer, also known as fuel tank semi trailer, oil tank trailer, is mainly used for transporting bulk liquid goods, such as diesel oil, gasoline, and sulfuric acid. It is widely used in chemical industry, metallurgy field, environmental protection field, brewing industry, food field, pharmacy, storage and transportation field, and more.
Its tanker body can be made of stainless steel 202, 304, or 316L, carbon steel, PVC, glass fiber reinforced plastics, aluminum, and more.
The fuel tanker semi trailer is mainly composed of chassis, tank assembly, unloading piping system, and safety device.
Beside oil transport tank semi trailer, we also supply water tanker semi trailer, cement tanker semi trailer, flatbed semi trailer, skeleton semi trailer, vacuum tanker semi trailer, low bed semi trailer............................



Vechicle name			Oil transport tank semi trailertrailer
Model			JDF9407GYY
Transport material			crude oil, edible oil, pertrol
Wheel base			7200+1310+1310 mm
Overall dimension (L*W*H)			12990×2500×3900  mm
Weight		GVW	40000 kg
		Curb weight	7170 kg
		Payload weight	32830 kg
Axle number			3 axles. 3x13 ton Fuwa axle
Tire type			11.00-20 12PR
Tire number			12 pcs
Leaf spring number			-/8/8/8
Tanker load volume			50cbm
Tanker material			Carbon steel or Stainless steel
Compartment			according to customer require

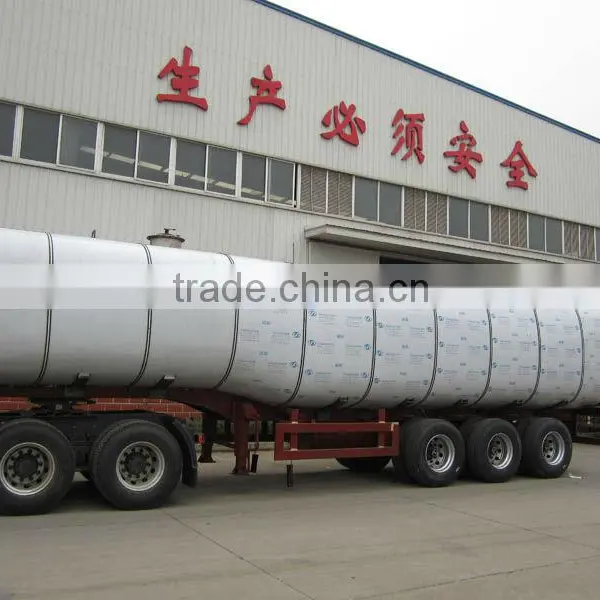

More image of the 3 axles oil transport tank semi trailer:
