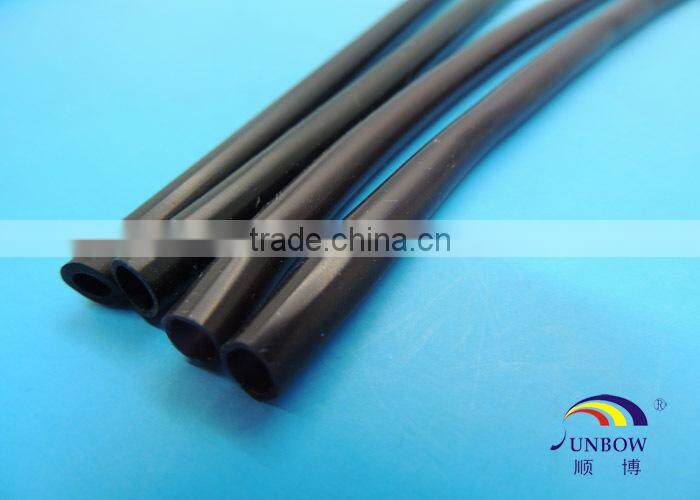

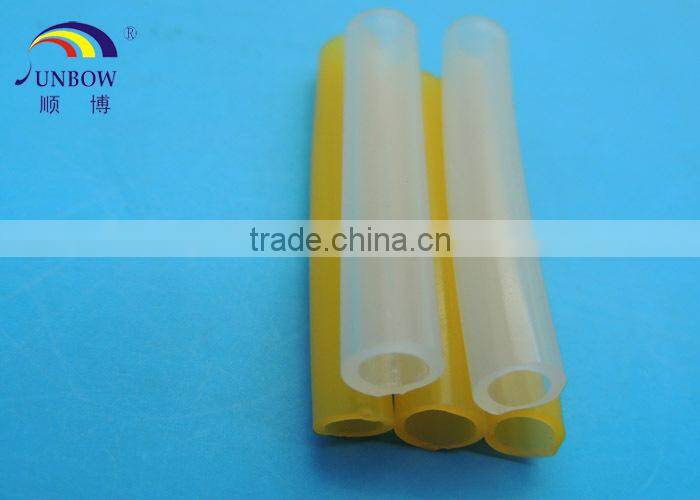

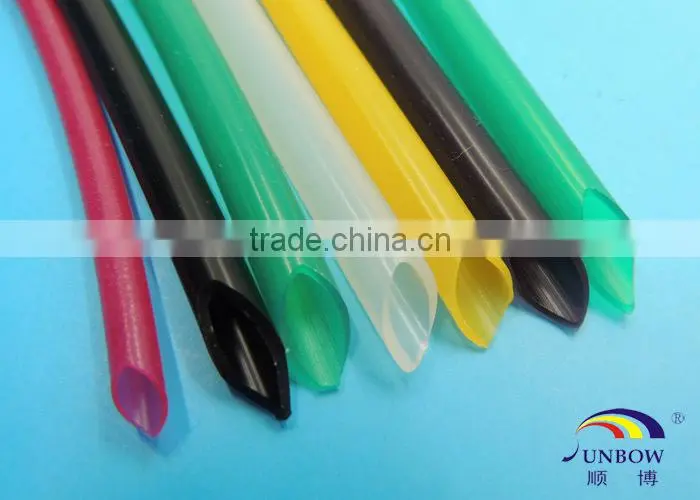

Soft Heat Resistant Sleeves for wires
PRODUCT DESCRIPTION AND APPLICATION
Soft Heat Resistant Sleeves for wires are extruded by high quality silicone rubber. It is commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It can be installed in coffee maker, electricwater bottle, or used in electric insulation etc.
MODEL
SB-SRT
WORKING TEMPERATURE
-60°c ~ 200°c
SPECIFICATION
Performance |
Test Method |
Performance Index |
Dielectric Strength (KV/mm) |
GB/T 1048 |
≥18 |
Volume Resistivity (Ω/cm) |
GB/T 1410 |
≥1x1014 |
Tear Resistance (MPa) |
GB/T 1040 |
≥3.5 MPa |
Elongation (%) |
GB/T 1040 |
≥210 |
Fire Resistance(Flame Retarded Products) |
GB/T 2408 |
FV-1 |
DIMENSION
Inside Diameter (mm) |
Tolerance(mm) |
Thickness and Tolerance |
|||
2500V(mm) |
4000V(mm) |
6000V(mm) |
7000V(mm) |
||
φ0.8 |
0.8±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.0 |
1.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ1.5 |
1.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.0 |
2.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ2.5 |
2.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.0 |
3.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ3.5 |
3.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.0 |
4.0±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ4.5 |
4.5±0.10 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.0 |
5.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ5.5 |
5.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.0 |
6.0±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ6.5 |
6.5±0.20 |
0.50±0.10 |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.0 |
7.0±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ7.5 |
7.5±0.20 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ8.0 |
8.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ9.0 |
9.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ10.0 |
10.0±0.25 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ11.0 |
11.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ12.0 |
12.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ13.0 |
13.0±0.30 |
— |
1.00±0.15 |
1.50±0.20 |
2.00±0.25 |
φ14.0 |
14.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ15.0 |
15.0±0.30 |
— |
— |
1.50±0.20 |
2.00±0.25 |
φ20.0 |
20.0±0.30 |
— |
— |
— |
2.50±0.3 |

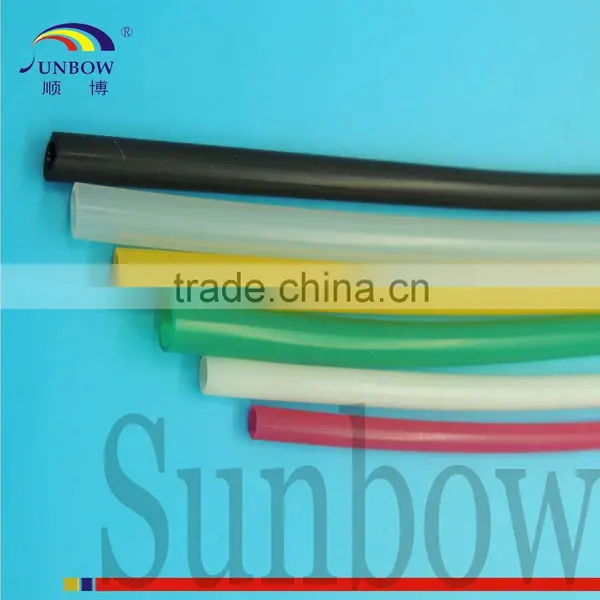

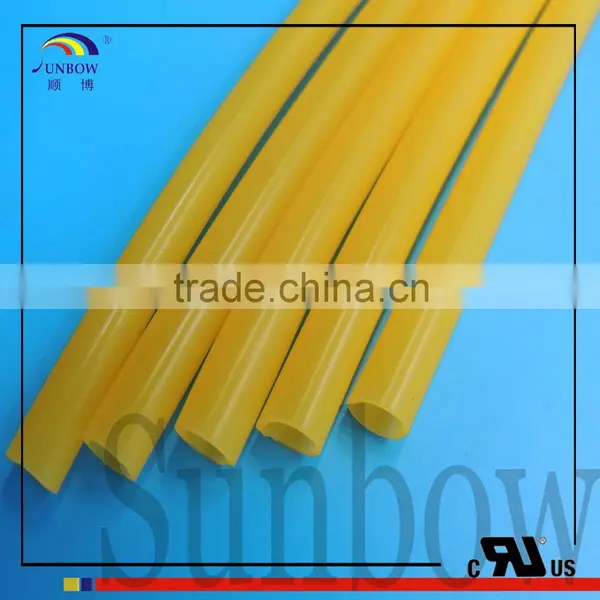

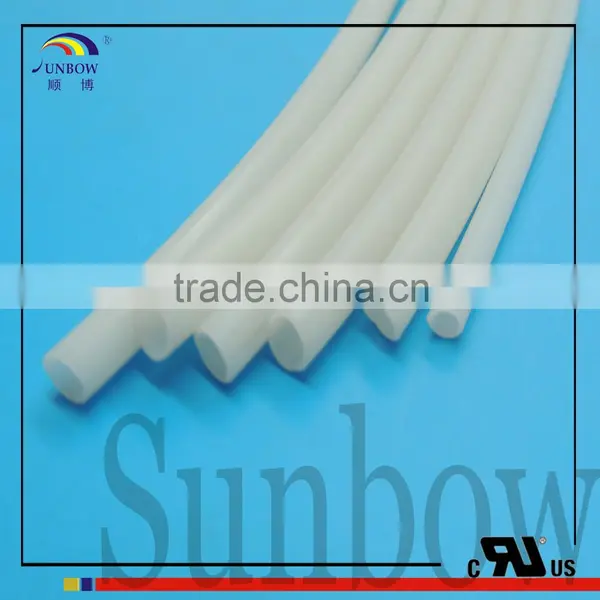

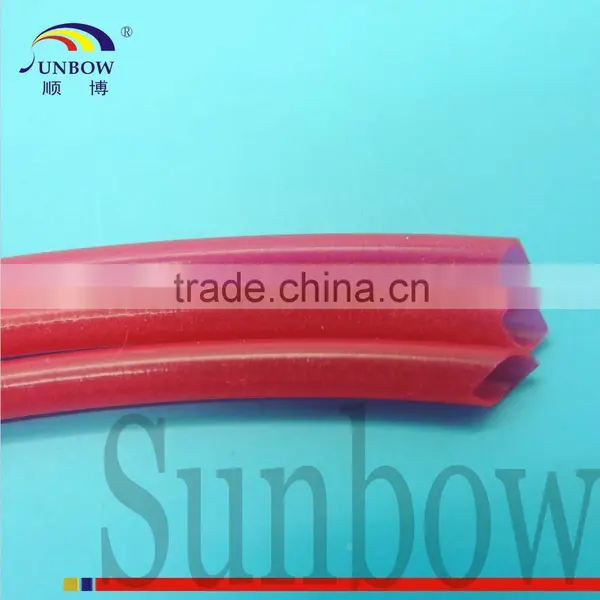

MORE PICTURES VIEW
