Home > Products > Silicone Rubber Tubing > SUNBOW UL Approval High Temperature Resistant Flexible Silicon Rubber Sleeve for Steel Coil 600V
SUNBOW UL Approval High Temperature Resistant Flexible Silicon Rubber Sleeve for Steel Coil 600V
- 5000000 Meter / Meters per Month
- Shenzhen
- Credit Card
You May Like
-
Eco-friendly Flexible Customized Transparent Clear FDA Medica or Common Silicone Tube
-
Silicone Rubber Cable Sleeve For High Low Voltage
-
with iso 9001-2008 standard ul approval high temperature silicone hookah hose
-
With ISO 9001-2008 Standard Food Grade High Temperature Flexible Vulcanized Rubber Hose
-
Sunbow UL Soft Thin Wall Silicone Rubber Tubing
-
2.0~65mm Inner Diameter/0.05~1mm Wall Thickness/10~1000mm Length PFT Film Tubing/Tubes/Sleeves/Sleeving/Pipes
Product Details
Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
Model Number | SB-SRT | Type | Insulation Sleeving | |
Material | Other, Silicone Rubber, Silicone rubber | Application | Other, High Temperature, Coffee makers, electric kettles | |
Rated Voltage | 600V | Tensile Strength | >3.5Mpa |
Product Description

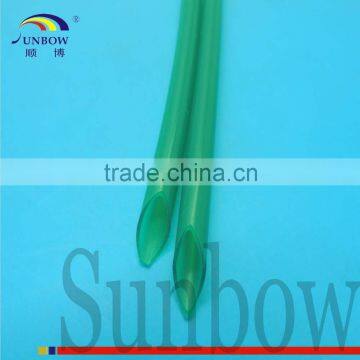

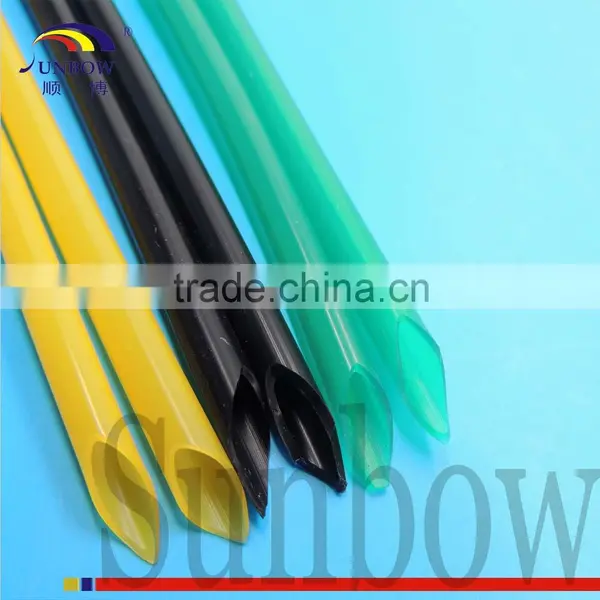

SUNBOW UL Approval High Temperature Resistant Flexible Silicon Rubber Sleeve for Steel Coil 600V
1. Model
SB-SRT
2. Working Temperature
-60~200C
3. Structure
SUNBOW UL Approval High Temperature Resistant Flexible Silicon Rubber Sleeve for Steel Coil 600V is made of extruded silicone rubber materials. It complies with FDA standard and it can work normally in 250 degree high temperature condition. It is widely used in home use electrical industry like coffee makers and electric kettles.
4. Characteristics
1) working temperature: -60~200C
2) soft, high temperature and high voltage resistance
5. Specification
Performance | Test method | Performance index |
Dielectric strength(kv/mm) | GB/T 1048 | ≥18 |
Volume resistivity(Ω/cm) | GB/T 1410 | ≥1x1014 |
Tearing strength(MPa) | GB/T 1040 | ≥3.5 MPa |
Elongation(%) | GB/T 1040 | ≥210 |
Fire resistance(flame retarded products) | GB/T 2408 | FV-1 |
6. Dimension
SIZE | Tolerance(mm) | Thickness and tolerance | |||
2500V(mm) | 4000V(mm) | 6000V(mm) | 7000V(mm) | ||
φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ7.0 | 7.0±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ7.5 | 7.5±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ8.0 | 8.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ9.0 | 9.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ10.0 | 10.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ11.0 | 11.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ12.0 | 12.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ13.0 | 13.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ14.0 | 14.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
φ15.0 | 15.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
φ20.0 | 20.0±0.30 | — | — | — | 2.50±0.3 |
7. Application
SUNBOW UL Approval High Temperature Resistant Flexible Silicon Rubber Sleeve for Steel Coil 600V accords with FDA standard and it is widely used in home use electrical appliances like coffee makers and electrical kettles.
8. More Products to Choose
9. Packing & Shipping
200m/r 100m/r
All our products are packaged in cardboard boxes.
You can choose the best way you like to deliver the goods, such as DHL, FEDEX, UPS...
10. Our Services
1) 2~7 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
11. Company Information About Sunbow
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
12. Some Certifications We've Got
13. Other Services
Free samples can be provided for your trial.
14. Frequently Asked Q & A
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 500m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) Factory direct sales, quality assurance and competitive price
2) UL, ROHS, REACH certificated
3) Philips, Toshiba, Media etc. well-known partners
4) An extensive line of high quality products (silicone fiberglass sleeving, various heat shrink tubes, pvc tube, ptfe tube, FDA compliance silicone rubber tube…)
Send your detailed inquiry for free samples and click "Send" now!
