Product Details
Place of Origin: | Guangdong, China | Brand Name: | SUNBOW | Model Number: | SB-SRT |
Type: | Insulation Sleeving | Material: | Other, Silicone Rubber, Silicone rubber | Application: | Other, High Temperature, home use appliances |
Rated Voltage: | 600V | Tensile Strength: | >3.5Mpa |
Product Description
with iso 9001-2008 standard UL RoHS Reach certifications flame retardant clear plastic tubes for crafts
1. Model
SB-SRT
2. Working Temperature
-60°c ~ 200°c
3. Structure
UL RoHS Reach certifications flame retardant clear plastic tube for crafts is made of extruded silicone rubber materials. It complies with FDA standard and it can work normally in 250 degree high temperature condition. It is widely used in home use electrical industry like coffee makers and electric kettles.
4. Characteristics
1) working temperature: -60°c ~ 200°c
2) soft, high temperature and high voltage resistance
5. Specification
Performance | Test method | Performance index |
Dielectric strength(kv/mm) | GB/T 1048 | ≥18 |
Volume resistivity(Ω/cm) | GB/T 1410 | ≥1x1014 |
Tearing strength(MPa) | GB/T 1040 | ≥3.5 MPa |
Elongation(%) | GB/T 1040 | ≥210 |
Fire resistance(flame retarded products) | GB/T 2408 | FV-1 |
6. Dimension
SIZE | Tolerance(mm) | Thickness and Tolerance | |||
2500V(mm) | 4000V(mm) | 6000V(mm) | 7000V(mm) | ||
φ0.8 | 0.8±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ1.0 | 1.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ1.5 | 1.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ2.0 | 2.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ2.5 | 2.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ3.0 | 3.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ3.5 | 3.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ4.0 | 4.0±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ4.5 | 4.5±0.10 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ5.0 | 5.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ5.5 | 5.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ6.0 | 6.0±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ6.5 | 6.5±0.20 | 0.50±0.10 | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ7.0 | 7.0±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ7.5 | 7.5±0.20 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ8.0 | 8.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ9.0 | 9.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ10.0 | 10.0±0.25 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ11.0 | 11.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ12.0 | 12.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ13.0 | 13.0±0.30 | — | 1.00±0.15 | 1.50±0.20 | 2.00±0.25 |
φ14.0 | 14.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
φ15.0 | 15.0±0.30 | — | — | 1.50±0.20 | 2.00±0.25 |
φ20.0 | 20.0±0.30 | — | — | — | 2.50±0.3 |
7. Application
UL RoHS Reach certifications flame retardant clear plastic tube for crafts is widely used in home use electrical appliances like coffee makers and electrical kettles.

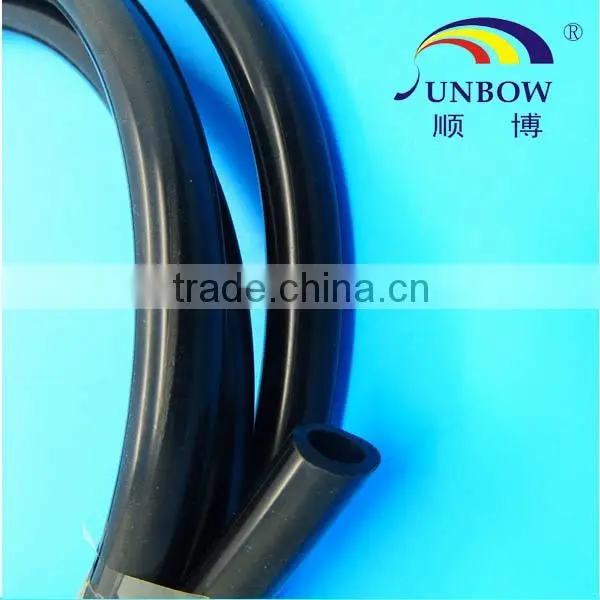

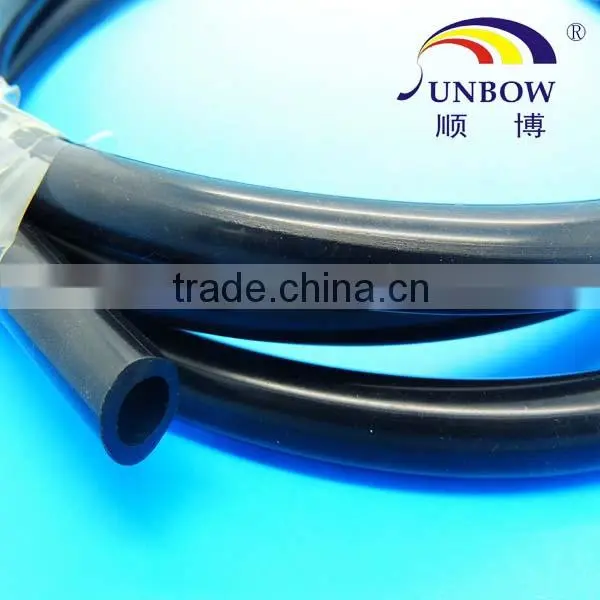

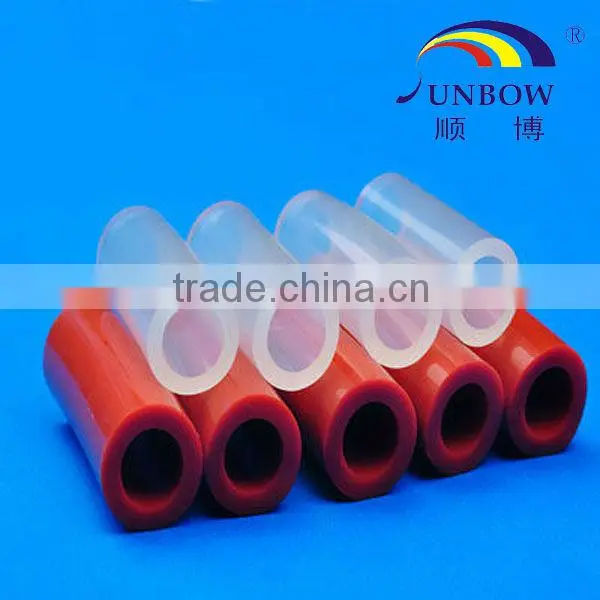

8. More Pictures
9. Packing & Shipping
200m/r 100m/r
All our products are packaged in cardboard boxes.
You can choose the best way you like to deliver the goods, such as DHL, FEDEX, UPS...
10. Our Services
1) 2~7 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
11. Company Information About Sunbow
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in Shenzhen, China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in silicone fiberglass sleevings, heat shrink tubes, PVC tube, silicone rubber tube, ptfe tube... Our products have passed UL, ROHS, REACH certifications. Our business partners can be found all over the world. Our famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
12. They Trust Us
13. Frequently Asked Q & A
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your evaluation.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we send the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) Factory direct sales, quality assurance and competitive price
2) UL, ROHS, REACH certificated
3) Philips, Toshiba, Midea etc. well-known partners
4) An extensive line of high quality products (silicone fiberglass sleeving, various heat shrink tubes, pvc tube, ptfe tube, silicone rubber tube…)
Send your detailed inquiry for free samples and click "Send" now!
