Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > Hot Sale 9-26 SERIES HIGH PRESSURE INDUSTRIAL BLOWER

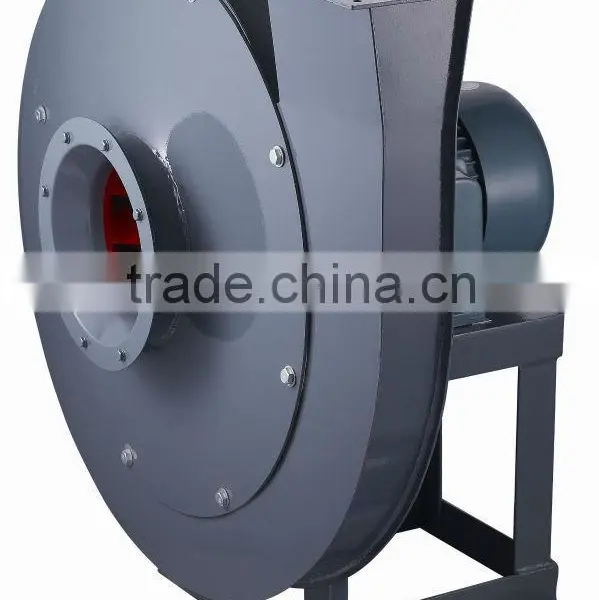

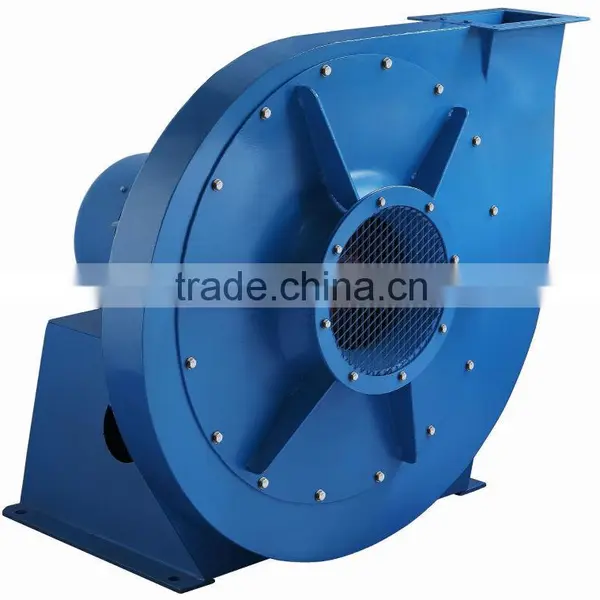

Hot Sale 9-26 SERIES HIGH PRESSURE INDUSTRIAL BLOWER
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Cast Iron
Mounting:
Duct Fan
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Ring Blower, High Pressure Industrial FanUS$ 71 - 670MOQ: 10 Units -
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation FanUS$ 355 - 5,021MOQ: 2 Units
-
Hot Sale Centrifugal Fan for Extraction Dust, Ventilation for Industrial FanUS$ 235 - 3,560MOQ: 5 Units
-
DKT Series AC Double Inlet Centrifugal Fan for Air ConditioningNegotiableMOQ: 25 Units
-
Aluminum Alloy Casing Drying FanNegotiableMOQ: 50 Units
Electric Current Type
AC
Blade Material
Cast Iron
Mounting
Duct Fan
Place of Origin
Guangdong, China
Brand Name
POPULA
Model Number
9-19-6.3A
Power
45kw
Voltage
380/460V
Air Volume
12699~13525m3/h
Speed
2970RPM
Certification
CCC
After-sales Service Provided
Overseas third-party support available
Specifications
9-26 HIGH PRESSURE CENTRIFUGAL FAN
1.centrifugal fan with low noise and large air flow.
2.the angulation of outlet can adjust
9-26 HIGH PRESSURE CENTRIFUGAL FAN
This series are used for coercive ventilation in industrial such as ancient furnace,glas,electroplanting,ceramics,ect. and are widely used for material transportation in processing industrial like food,feed and slag.
The transportation in processing medium is air or other non-spontaneous-combustion and non-explosive-comubstion air with no harm to human.
The air transferred shall not contain any adhesive material,dust and grain and the concertration shall not exceed 150mg/m3 with the temperature no higher than 80 centigrade degree.
| MODEL | POWER(kW) | ROTATION(r/min) | VOLUME(m3/h) | PRESSURE(Pa) |
| 3.5A | 3 | 2900 | 1473~2154 | 2950~2608 |
| 4A | 5.5 | 2900 | 2198~3215 | 3852~3407 |
| 7.5 | 2900 | 3000~5000 | 2835~1060 | |
| 4.5A | 7.5 | 2900 | 3130~3685 | 4910~4776 |
| 11 | 2930 | 3963~4792 | 4661~4256 | |
| 5A | 15 | 2930 | 4293~6349 | 6035~5381 |
| 18.5 | 2930 | 6762 | 5180 | |
| 5.6A | 22 | 2930 | 6032~7185 | 7610~7400 |
| 30 | 2950 | 7766~9500 | 7218~6527 | |
| 6.3A | 45 | 2970 | 8588~11883 | 9698~8915 |
| 55 | 2970 | 12699~13525 | 8636~8310 | |
| 7.1D | 75 | 2970 | 12292~14643 | 12427~12078 |
| 110 | 2980 | 15826~19360 | 11776~10635 | |
| 8D | 132 | 2980 | 17584~20947 | 15955~15504 |
| 200 | 2980 | 22640~27696 | 15112~13634 | |
| 30 | 1470 | 13001~13848 | 3421~3294 | |
| 18.5 | 1450 | 8792~12166 | 3834~3529 | |
| 9D | 45 | 1480 | 16118~19717 | 4620~4181 |
| 30 | 1470 | 12518~14913 | 4869~4736 | |
| 10D | 75 | 1480 | 23612~30052 | 5761~5065 |
| 55 | 1480 | 17172~21465 | 6143~5920 | |
| 11.2D | 132 | 1490 | 39205~42221 | 6691~6382 |
| 110 | 1480 | 24126~36189 | 7747~7009 | |
| 37 | 980 | 23959~27953 | 3031~2763 | |
| 30 | 980 | 15973~21963 | 3346~3140 | |
| 12.5D | 250 | 1490 | 46117~58695 | 9103~7993 |
| 160 | 1490 | 33540~41925 | 9713~9356 | |
| 75 | 990 | 33309~38860 | 3785~3450 | |
| 45 | 980 | 22206~30533 | 4179~3921 | |
| 14D | 75 | 990 | 31197~35097 | 5262~5188 |
| 250 | 1490 | 47121~53011 | 12285~12109 | |
| 16D | 500 | 1490 | 70339~79131 | 16250~16014 |
| 220 | 990 | 75675~81496 | 5971~5696 |
...
