High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan

High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan thumbnail-1
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan thumbnail-2
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan thumbnail-3
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan thumbnail-4
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan thumbnail-5
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan photo-1
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan photo-2
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan photo-3
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan photo-4
High Quality HTFC-I Single -speed Fan for Fire-control, Exhaust Ventilation Fan photo-5
US$ 355 - 5,021 MOQ: 2 Units
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Shop Window
Contact Supplier Request Quote Chat Now
Popula Fan Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Stainless Steel
Mounting Shop Window
Place of Origin Guangdong, China
Brand Name Popula
Model Number HTFC-I-36"-45KW
Power 45kw
Voltage 220V/380V
Air Volume 1590~85855 m3/h
Certification CCC, CE
After-sales Service Provided Overseas third-party support available

Specifications

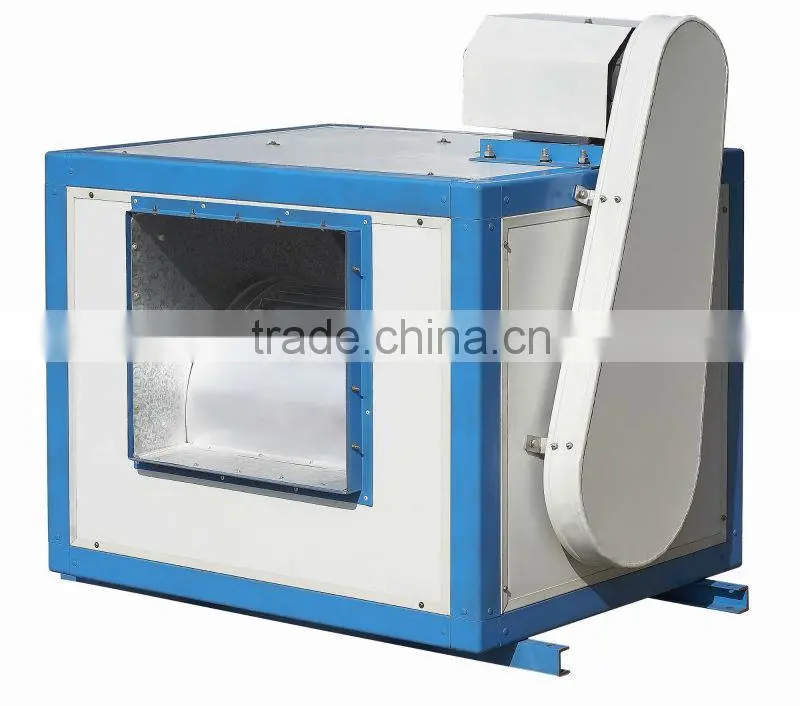

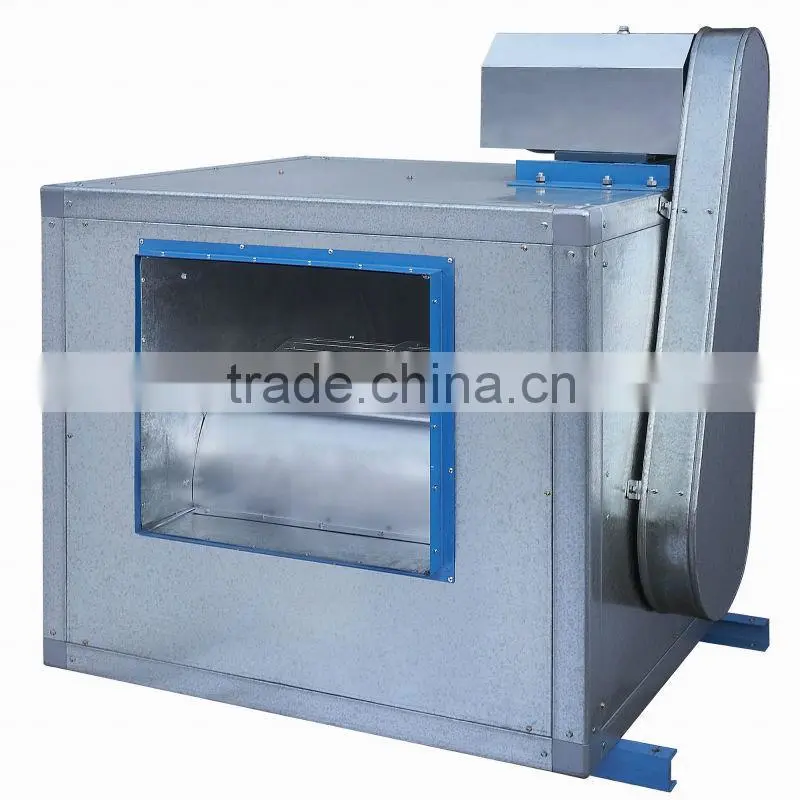

HTFC-I Single -speed fan for Fire-control
1.used for fire-control and ventilation
2.small size,high efficiently,light weight
High quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fanHigh quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fanHigh quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fan



HTFC-I Single -speed fan for Fire-control

HTFC-I Single -speed fan for Fire-control is widely used for fire control and ventilation in places such as hotels,coliseum,schools,restaurants,cinemas,halls,high class residences and mining industries.HTFC-I Single -speed fan for Fire-control is also fit for air-condition system and environmental purification system.Motor installed outside is used for fire control and ventilation,while inside one for ventilation and air renewal.The transporting medium is air or other non-spontaneous-combution and non-explosive-combution air with no harm to human.The air transferred shall not contain any adhesive material,dust and grain and the concentration shall not exceed 150mg/m3 with the temperature no higher than 80oC.When the HTFC series are used for fire control,the fans can run more than 30 minutes continually under the condition that the air and smoke temperature is at 280oC.

MODEL POWER(kW)  ROTATION(r/min)  VOLUME(m3/h) PRESSURE(Pa) NOISE dB(A)
9" 0.55 800 1590~2676 141~86 ≤66
0.75 900 1790~3010 178~110 ≤67
1.1 1200 2386~4014 317~195 ≤69
1.5 1400 2784~4683 432~266 ≤71
10" 0.75 800 2238~3760 177~108 ≤67
1.1 900 2514~4230 224~138 ≤68
1.5 1200 3352~5640 398~245 ≤70
2.2 1400 3911~6580 542~334 ≤72
12" 1.1 800 3771~6344 251~154 ≤68
1.5 900 4243~7137 318~196 ≤69
2.2 1200 5657~9516 565~348 ≤71
3 1400 6600~11102 769~474 ≤73
15" 1.5 600 4607~7749 196~121 ≤69
2.2 720 5528~9298 282~174 ≤70
3 850 6526~10977 393~242 ≤72
4 900 6910~11623 441~272 ≤73
18" 2.2 600 7733~13007 284~176 ≤70
3 720 9279~15608 408~253 ≤71
4 800 10310~17342 504~312 ≤72
5.5 830 10697~17993 543~336 ≤74
20" 3 560 9196~15469 290~200 ≤71
4 610 10017~16850 345~237 ≤72
5.5 720 11824~19889 480~330 ≤74
7.5 800 13137~22098 593~407 ≤75
22" 4 600 14026~23590 422~273 ≤72
5.5 650 15195~25556 495~320 ≤73
7.5 720 16831~28308 607~393 ≤75
11 800 18701~31453 750~485 ≤77
25" 5.5 520 16896~28416 373~219 ≤73
7.5 580 18845~31694 464~272 ≤74
11 650 21120~35520 583~342 ≤76
15 720 23394~39345 715~419 ≤78
28" 7.5 500 21224~35696 438~297 ≤74
11 560 23771~39980 549~375 ≤76
15 600 25469~42836 630~430 ≤77
18.5 650 27591~46405 739~505 ≤79
22 720 30562~51403 907~619 ≤80
30" 11 520 27958~47022 551~341 ≤75
15 560 30108~50639 639~395 ≤77
18.5 580 31183~53563 685~424 ≤79
22 610 32796~55160 758~469 ≤81
30 650 34947~58777 860~532 ≤82
33" 11 400 27840~45800 424~290 ≤76
15 450 31320~51530 545~367 ≤77
18.5 500 34800~57260 680~453 ≤79
22 550 38280~62980 822~548 ≤81
30 600 41760~68700 970~652 ≤83
37 630 43850~72140 1080~719 ≤84
36" 15 350 31490~51810 396~264 ≤78
18.5 400 35990~59210 518~344 ≤79
22 450 40490~66610 654~436 ≤81
30 500 44990~74010 808~538 ≤82
37 550 49490~81420 970~651 ≤84
45 580 51280~85855 1086~723 ≤85



High quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fanHigh quality HTFC-I Single -speed fan for Fire-control, exhaust ventilation fan

...
