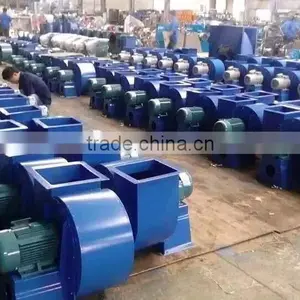

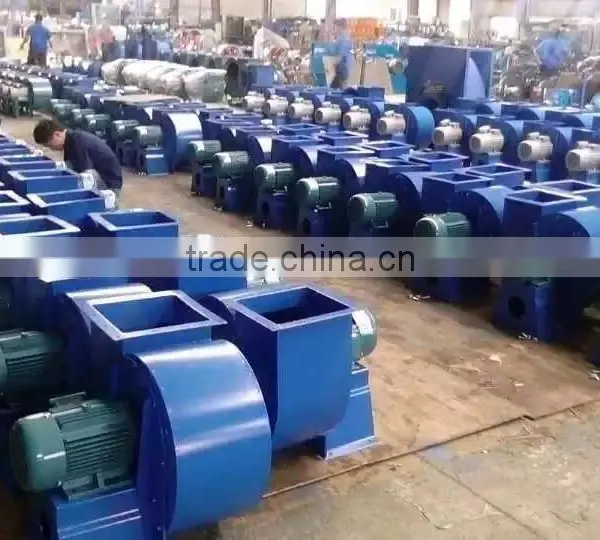

Hot Sale Centrifugal Fan for Extraction Dust, Ventilation for Industrial Fan
US$ 235 - 3,560
MOQ: 5 Units
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Cast Iron
Mounting:
Duct Fan
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DKT Series AC Double Inlet Centrifugal Fan for Air ConditioningNegotiableMOQ: 25 Units -
Aluminum Alloy Casing Drying FanNegotiableMOQ: 50 Units
-
PXG High Pressure Industrial Vortex Gas PumpNegotiableMOQ: 50 Units
-
PXG Single Phase Ring Blower/ Vortex BlowerNegotiableMOQ: 50 Units
-
PXG Vortex Ring BlowerNegotiableMOQ: 50 Units
Electric Current Type
AC
Blade Material
Cast Iron
Mounting
Duct Fan
Place of Origin
Guangdong, China
Brand Name
Popula
Model Number
C6-46 A
Power
2.2/3/5.5/7.5KW
Voltage
380
Air Volume
3130~7045CMH
Speed
960RPM
Certification
CCC
After-sales Service Provided
Overseas third-party support available
Specifications
C6-46(A type) Centrifugal Fan for Extraction dust
1.centrifugal fan with good performance high pressure
2.hard to amass dirt
C6-46(A type) Centrifugal Fan for Extraction dust
C6-46(A type) Centrifugal Fan for Extraction dust is suitable to expel air with dirt,wood scraps and fine fiber.It can also be used for ventilation with the temperature of air below 80.Made up of 6 forward curved blades,the fan is not easy to wear and amass dirt.Except for A type,C6-46 series consist of C driven type and D driven type.
| MODEL | POWER(kW) | ROTATION(r/min) | VOLUME(m3/h) | PRESSURE(Pa) |
| 3A | 3 | 2900 | 1183~2891 | 1452~1205 |
| 4A | 2.2 | 1420 | 1404~3420 | 676~568 |
| 5A | 5.5 | 1450 | 2733~6660 | 1117~931 |
| 6A | 7.5 | 1450 | 4725~11552 | 1607~1343 |
| 3 | 960 | 3130~7045 | 706~598 | |
| 4C | 5.5 | 2320 | 2240~5460 | 1735~1441 |
| 4 | 2030 | 1962~4790 | 1333~1107 | |
| 3 | 1810 | 1747~4260 | 1058~882 | |
| 2.2 | 1665 | 1608~3918 | 892~745 | |
| 1.5 | 1520 | 1468~3582 | 745~617 | |
| 1.1 | 1305 | 1260~3080 | 549~461 | |
| 5C | 7.5 | 1740 | 3280~8005 | 1627~1333 |
| 5.5 | 1620 | 3054~7450 | 1401~1156 | |
| 4 | 1390 | 2620~6400 | 1029~853 | |
| 3 | 1275 | 2404~5860 | 862~715 | |
| 2.2 | 1160 | 2183~5340 | 715~598 | |
| 2.2 | 1004 | 4378~4781 | 510~480 | |
| 1.5 | 1960~3975 | 579~529 | ||
| 6C | 7.5 | 1350 | 8022~10740 | 1343~1156 |
| 5.5 | 4398~7116 | 1400~1372 | ||
| 7.5 | 1255 | 9120~9920 | 1068~1000 | |
| 5.5 | 4080~8282 | 1205~1117 | ||
| 5.5 | 1160 | 6988~9219 | 990~853 | |
| 4 | 3780~6111 | 1029~1020 | ||
| 4 | 1060 | 6294~8427 | 823~715 | |
| 3 | 3450~5583 | 862~853 | ||
| 3 | 965 | 5729~7670 | 686~588 | |
| 2.2 | 3141~5082 | 715~705 | ||
| 2.2 | 870 | 2836~6910 | 579~480 | |
| 8C | 18.5 | 1085 | 16975~20415 | 1480~1333 |
| 15 | 8375~15255 | 1607~1539 | ||
| 15 | 1015 | 14288~19124 | 1353~1166 | |
| 11 | 7840~12676 | 1401~1382 | ||
| 11 | 905 | 12750~17070 | 1068~922 | |
| 7.5 | 6990~11310 | 1117~1098 | ||
| 7.5 | 864 | 10790~13540 | 1000~941 | |
| 5.5 | 6655~9415 | 1020 | ||
| 7.5 | 796 | 11230~15040 | 833~715 | |
| 5.5 | 6150~9960 | 862~853 | ||
| 5.5 | 725 | 7910~13685 | 715~598 | |
| 3 | 5600~6755 | 715~725 | ||
| 4 | 625 | 9186~12300 | 559~480 | |
| 3 | 5034~8148 | 579~569 | ||
| 10C | 37 | 1000 | 26900~36050 | 2068~1803 |
| 30 | 20300~24000 | 2156~2136 | ||
| 30 | 900 | 21830~24450 | 1735~1460 | |
| 22 | 12300~18300 | 1754~1745 | ||
| 22 | 800 | 21540~28850 | 1323~1156 | |
| 18.5 | 10920~19200 | 1382~1369 | ||
| 18.5 | 710 | 21000~25000 | 1000~911 | |
| 11 | 9000~19000 | 1098~1039 | ||
| 11 | 630 | 8610~22700 | 862~715 | |
| 7.5 | 560 | 7650~20200 | 676~569 | |
| 12C | 55 | 768 | 44600~48770 | 1607~1509 |
| 37 | 32330~40500 | 1784~1675 | ||
| 30 | 20000~28220 | 1823~1813 | ||
| 37 | 720 | 34220~45800 | 1529~1323 | |
| 30 | 18780~30360 | 1597~1560 | ||
| 30 | 670 | 31830~42600 | 1323~1147 | |
| 22 | 17470~28240 | 1382~1353 | ||
| 22 | 628 | 23100~30860 | 1215~1116 | |
| 15 | 16340~19725 | 1215~1225 | ||
| 22 | 582 | 30680~36900 | 951~862 | |
| 15 | 15130~24460 | 1029~1019 | ||
| 15 | 530 | 25220~33770 | 833~715 | |
| 11 | 13820~22370 | 862~853 | ||
| 11 | 483 | 22950~25540 | 686~557 | |
| 7.5 | 12590~20360 | 715~705 | ||
| 7.5 | 435 | 18360~23040 | 559~540 | |
| 5.5 | 11340~16020 | 588~579 |
...
