Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale

Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-1
Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-2
Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-3
Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-4
Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-5
Full Service High Quality PF Type Hard Rock Reaction Crusher Price for Sale photo-6
US$ 12000.00 - 41800.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Impact Crusher
Application Ore
Motor Type AC Motor
Power(W) 132kw
Capacity(t/h) 100-160(t/h)
Place of Origin Shandong, China
Brand Name SD-DaTong
Model Number PF-1214
Dimension(L*W*H) 3350*3150*4600
Weight 19T
Certification ISO9001:2008
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
Application:
    It is widely used in the crush of various ores, expressway, cement, chemical, building and other industries.

Operating principle:
    Reaction crusher is a crushing machine that uses the striking energy to crush the material.When at work, the rotor runs at a high speed with the drive of electric motor.After being crashed by striking of the board hammer of the rotor when the material comes into the impact zone of the board hammer, the material is crashed again after being threw into the reaction unit, and then it is crashed again after being rebound to impact zone of the board hammer.The process is repeated.The material comes into the first, second, and third reaction cavity to be crushed repeatedly, till the material is crushed to the required granularity, and is discharged from the discharge gate.Adjusting the space between reaction frame and rotor can change the material discharging granularity and material shape.

Chracteristics:
    It is applied to the secondary crushing after coarse crusher, can crush the ore of which compressive strength is not more than 320Mpa.It has such advantages as big processing value, fine discharging material, the finished product without innercrack,and etc.



PF-1214 Type Hard Rock Reaction Crusher

Technical Parameter
Product model

PF-1214
Rotor dimeter
mm
Φ1250

Rotor length

mm
1400


Maximum feeding material        size

mm
300
Production capacity
t/h
100-160
Motor power
kw
132
Product specifications
Boundary dimension
mm
3350*3150*4600

Main Features

1、It is applied to the secondary crushing after coarse crusher, can crush the ore of which compressive strength is not more than 320Mpa.It has such advantages as big processing value, fine discharging material, the finished product without innercrack,and etc.
2、Model for the latest products, a wide range of applications, with a compact structure, long service life, high efficiency.
3、Adjust the equipment more compact, more stable, fast, work efficiency is improved obviously.
4、First-class technology, reliable pre-sale customer service service quality. The products meet European CE certification standards.

Certifications
Detailed Images

Machine Parts

Name:PF-1214 Type Hard Rock Reaction Crusher

Brand: SD-DaTong

Original:Chine

Theelectric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate move upward and downward, so as to push the moving jaw toothed plate to the fixed jaw toothed plate, to crush the material or splitting the material by doing reciprocating motion of approaching and leaving.

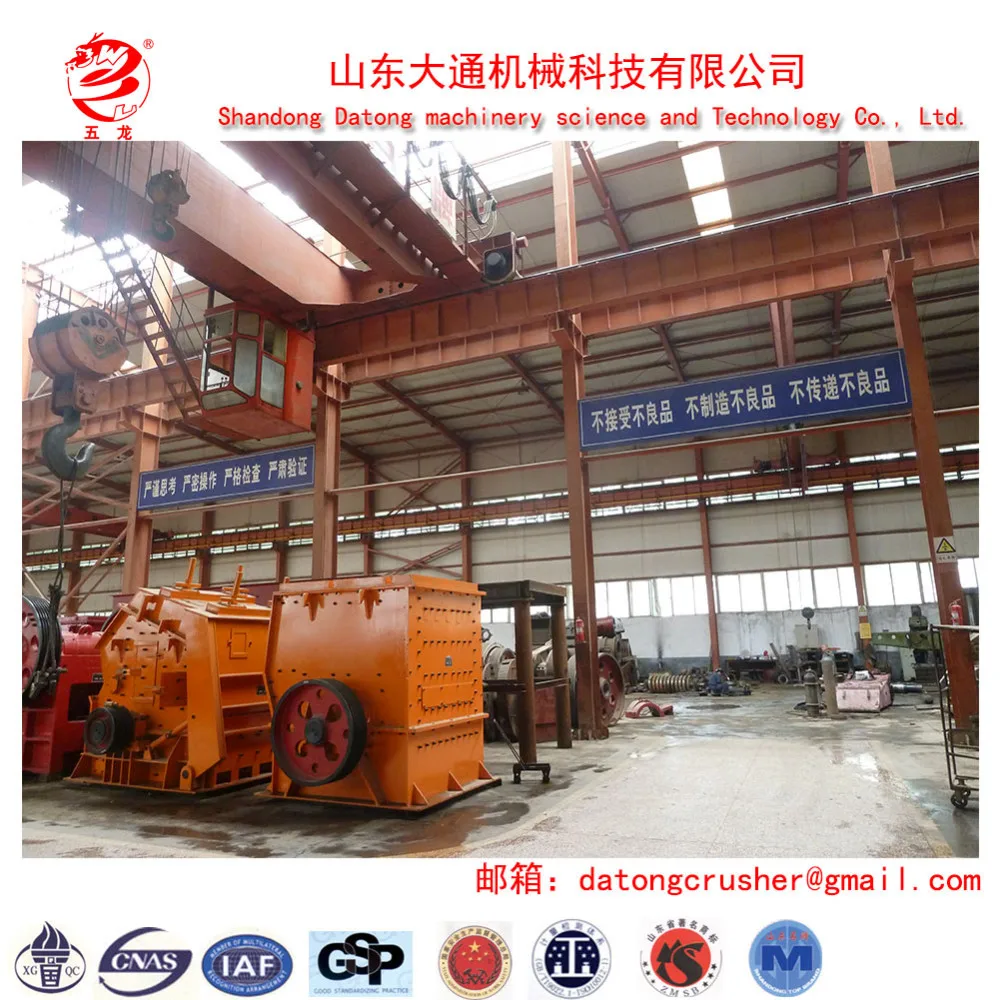

Shandong Datong production workshop

The company has more than one large vertical lathe, boring machine, planer, automatic welding machine, CNC cutting machine and other processing equipment. A strong, scientific management, advanced technology, created a unique charm and unique quality of Datong Datong of Shandong brand products. Today, composite cone type, jaw crusher, fine jaw crusher, hammer, impact crusher, to roll series crusher and vibration sifting machine 11 series over 100 varieties of products with reliable production scale.

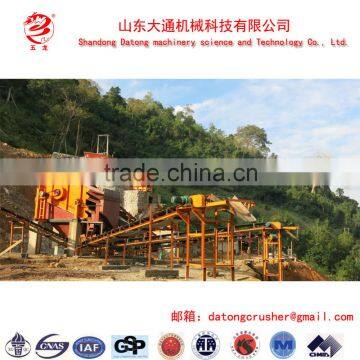

Real Customer Information

We in accordance with the requirements of customers, for customers provide a complete production line crusher, remove senior engineer to site installation and training machine, and provide a detailed proposal for operation training for customers, according to customer's site requirements and application, we will help customers to choose the right equipment, drilling rigs, loaders, trucks, excavators and other equipment.

Advantages Of SD-Datong Stone Production Line

Name: PF-Hard Rock Reaction  Crusher
Brand:SD-DaTong
Original: Chine
1、First-class technology;
2、Complete stone production line,the Crusher near to turn-key project
3、Fixed or mobile choice
4、With the approval of the chief executive of reliable quality, the products meet the European standards
5、Design, function is updated every year, taking into account the cost savings, the formation of its own unique design, improve the user's ability to think.
6、Invention patent technology.

Our Service

Pre-Sales Service

1、 Inquiry and consulting support.

2、Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.

3、 View our Factory.Field trips to sell products.

After-Sales Service

1、After acceptance of the equipment, we will draft the construction program and detailed process, and complete the export process.

2、After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.

Packing&Delivery
Packaging
Size
3350(L) * 3150 (W) *4600 (H)
Weight
19T



Packaging Details
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases (size: L *). If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery
Size
3350(L) * 3150 (W) *4600 (H)
Weight
19T



Delivery     Details
We will follow the normal and safe packing and transportation to ensure the safe arrival of the goods. We export to many countries, has rich experience in loading the crusher, export standard containers are 20GP, 40GP, 40HQ container, or FR in the case of bulk parts
