Specifications
Foton gasoline tanker truck6x2 drive
Lovol engine 210hp
carbon steel tanker
optional fuel pump , flow meter

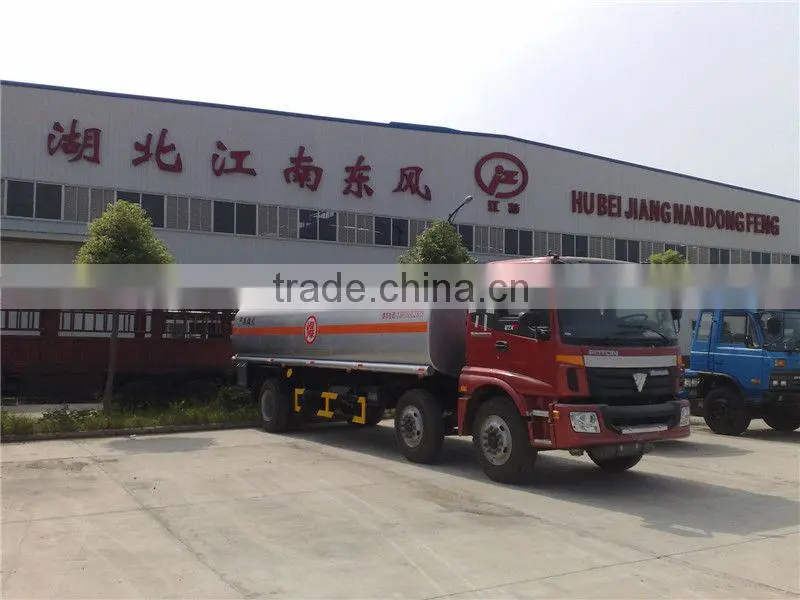

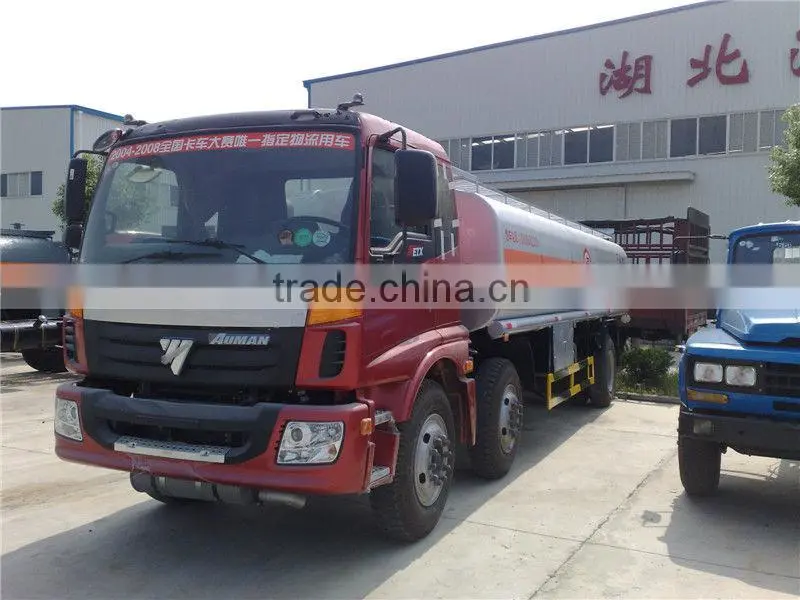

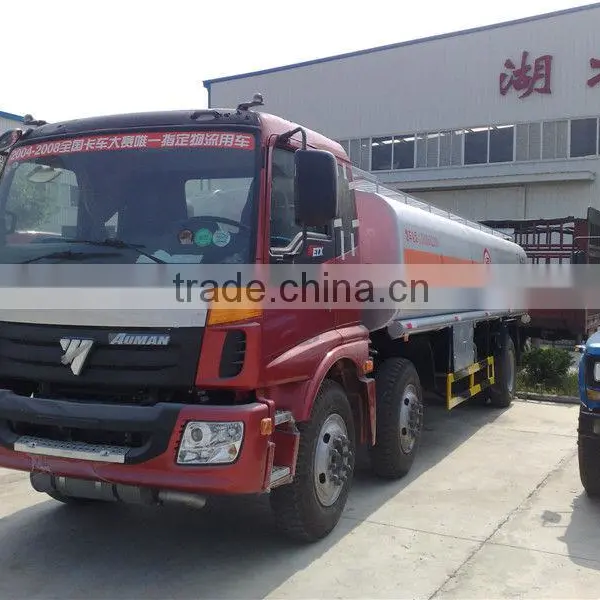

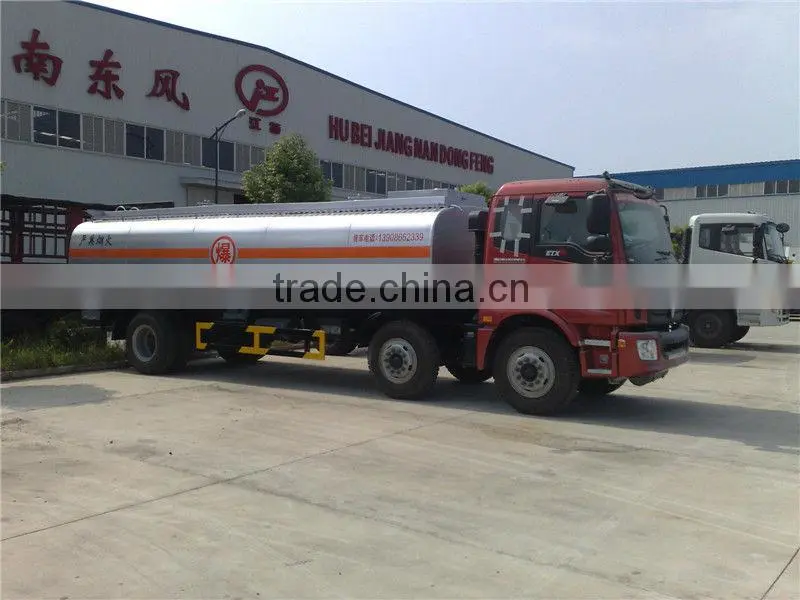

Foton Gasoline Tanker Truck
Gasoline tanker truck is aslo called fuel tanker truck, oil tanker truck normally, is used to transport crude oil, petrol and other kind of liquid materials, the tanker is made from high quality carbon steel or stainless steel or aluminum, thickness4mm-6mm. could be divided to several compartments according to customer requirement , also could optional oil pump, flow meter, bottom loading .
Vehicle name |
Gasoline Tanker Truck (Foton) |
||
Manufacturer |
Hubei Jiangnan Special Automobile Co.,Ltd |
||
Cabin |
Single row , 2 seats |
||
Drive type |
6x2 |
||
Wheel base |
1860+4800 mm |
||
Overall dimension (L*W*H) |
10225×2490×3050 mm |
||
Weight |
GVW |
25000 kg |
|
Curb weight |
10280 kg |
||
Payload weight |
14525 kg |
||
Engine |
Engine model |
Phaser210Ti-30 |
|
Make |
Tianjin Lovol |
||
Rated power / Displacement |
156 kw / 5990 ml |
||
Emission standard |
Euro 2 |
||
Tire type |
10.00-20 , 8 pcs |
||
Fuel tanker volume |
20000L |
||
Tanker make |
High quality carbon steel , 5mm thickness |
||
Optional |
flow meter, oil pump, compartment |
||
1:according to different liquids for delivery ,we can provid carbon steel tanks ,staineless steel tanks ,manganese steel tanks ,aluminum tanks ,steel withplastic (orrubber) tanks and plastic tanks .
2:tank forming an advanced automatic CNC vertical welding techniques and head arc butt welding technology ,as well as the whole-steel forming a composite .
3:chemical vehicles equipped with active and passive emergency protection devices ,to provide full closure remote manipulation of materals handing funcations .
4:it is fitfor transporting light fuel oil,heavy oil,sulfuricacid hydrochloric acid,nitric acid,nitric acid,caustic soda hydrogen peroxide,alcohol benszence ,cooking oil and so on .
5:option gear pumps.self-absorption (centrifuge) pump,chemnical pump,chemical pump,heavy,oil pump ,stainless steel pump
6:tank section in the shape of an oval,square round,option heat insulation device suech as heating pipes insuiation
7:can be designed into the pump ,pump-off form,into the pump,pump out the form,however,the tables have been gravity ,but gravity table,and other functions
8:tail or side of the tanker canbe installed gravity -flow valve 1-3 according to the demand .
9:you can option single count,two -count back to the zero-flow table for measurement
