High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers

High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-1
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-2
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-3
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-4
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-5
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers thumbnail-6
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-1
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-2
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-3
High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-4

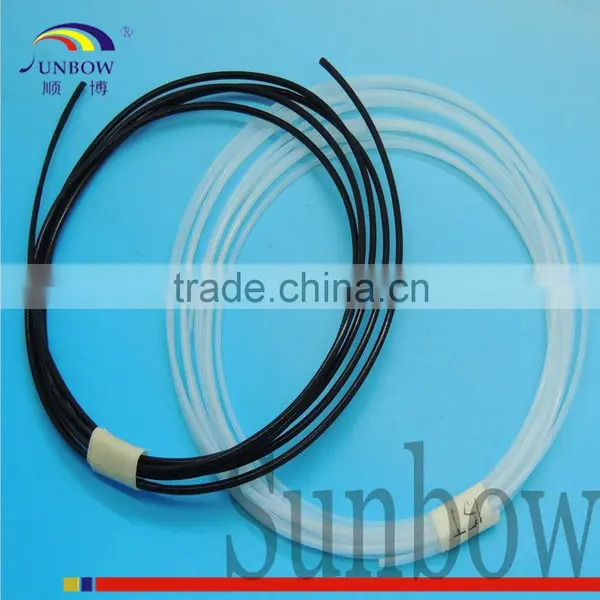

High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-5

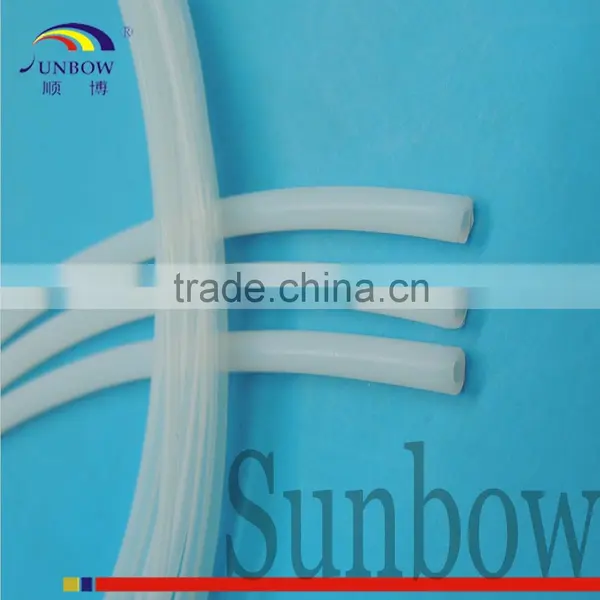

High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers photo-6
US$ 0.0333 - 2.6666 MOQ: 2000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUNBOW
Model Number:
SB-PTFE
Contact Supplier Request Quote Chat Now
Shenzhen Sunbow Insulation Materials Mfg. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SUNBOW
Model Number SB-PTFE
Type Insulation Sleeving
Material Other, PTFE, PTFE
Application Other, High Temperature, Mechanical Application, Motor...
Rated Voltage >25.0 Mpa

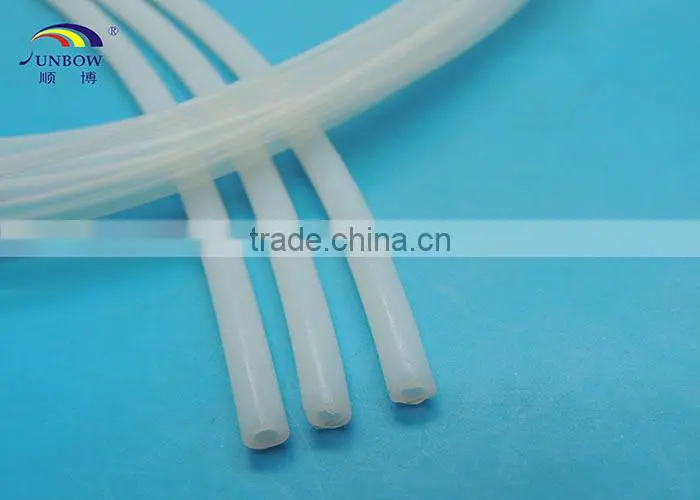

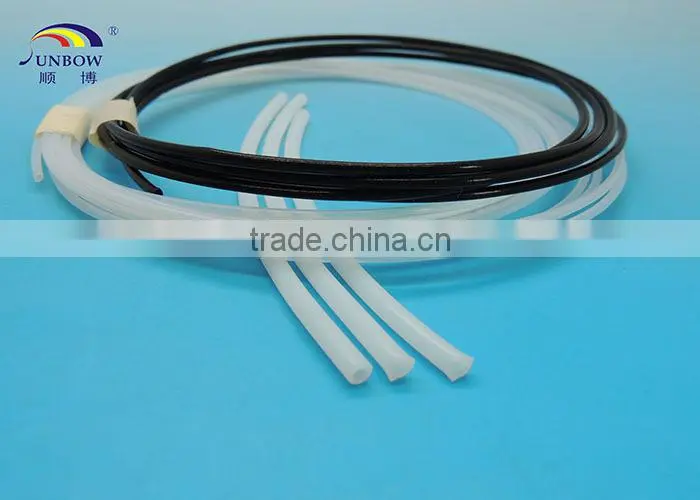

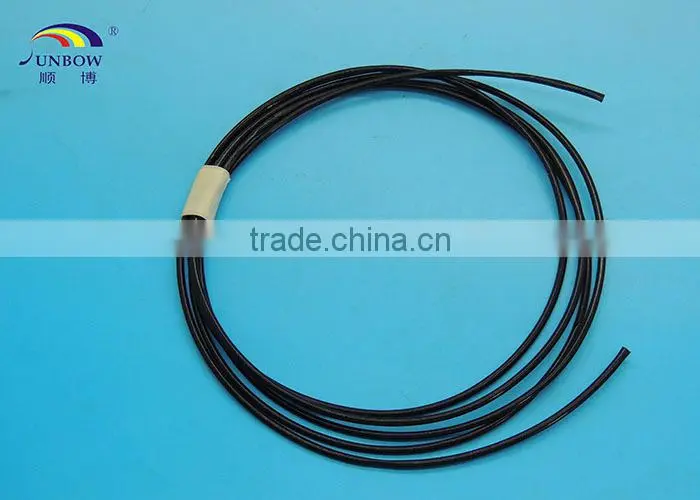

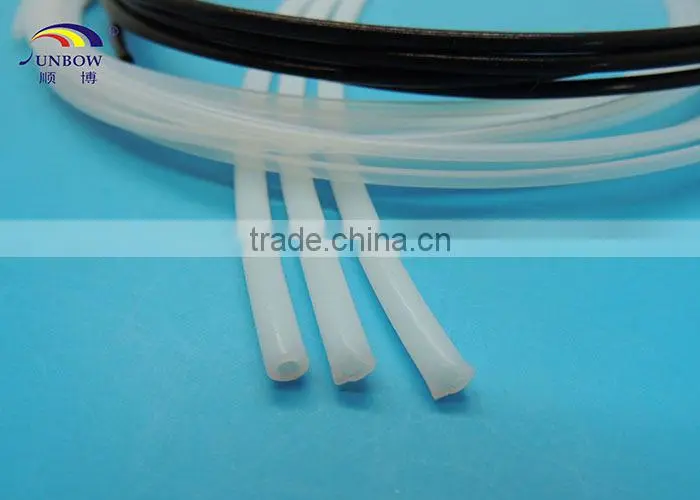

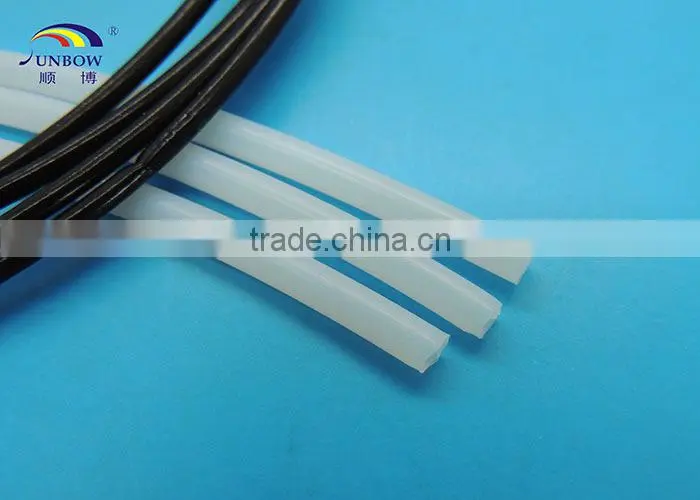

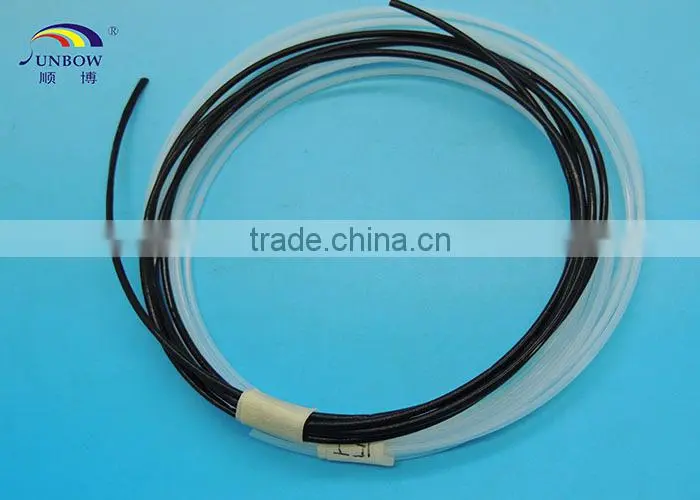

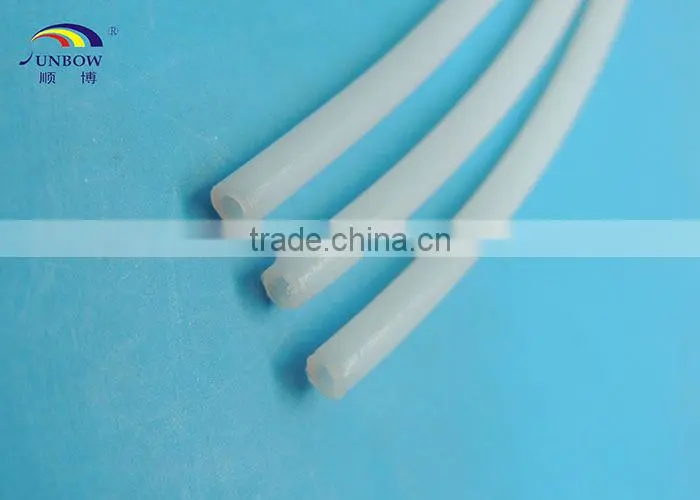

High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers



PRODUCT INTRODUCTION

High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers are manufactured by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.



High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers



WORKING TEMPERATURE

-80°c ~ 260°c



CHARACTERISTICS

1. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);

2. High voltage resistance (45KV/mm)



SPECIFICATION

Item

Standard

Item

Standard

Relative Density

2.14~2.20

Melting Point (ºC)

327

Tensile Strength (MPa)

≥25

Operating Temperature (0C)

-80~260

Stretch Yield Strength (MPa)

≥11

Oxygen Index (%)

>90

Elongation (%)

≥300

Water Absorption (%)

<0.01

Arc Resistance

>300

Linear Expansion Coefficient (×105/ ºC)21~1000C

10

Shore Hardness (D)

59~63

breakdown strength (KV/mm)

≥45

Volume Resistance (Ω. cm)

1*1016







DIMENSION

AWG

Inside Diameter  (mm)

Outside Diameter (mm)(S)

Outside Diameter (mm)(T)

Outside Diameter (mm)(L)

Standard Package

(m/roll)

30

0.30±0.10

0.80±0.10

0.70±0.10

0.64±0.10

305

28

0.38±0.10

0.88±0.10

0.78±0.10

0.72±0.10

305

26

0.46±0.10

0.96±0.10

0.86±0.10

0.80±0.10

305

24

0.56±0.10

1.16±0.10

1.06±0.10

0.90±0.10

305

23

0.66±0.10

1.26±0.10

1.16±0.10

1.00±0.10

305

22

0.71±0.10

1.31±0.10

1.21±0.10

1.05±0.10

305

21

0.81±0.10

1.41±0.10

1.31±0.10

1.15±0.10

305

20

0.86±0.10

1.66±0.10

1.46±0.10

1.20±0.10

305

19

0.96±0.20

1.76±0.20

1.56±0.20

1.30±0.20

200

18

1.07±0.20

1.87±0.20

1.67±0.20

1.41±0.20

200

17

1.19±0.20

1.99±0.20

1.79±0.20

1.53±0.20

200

16

1.34±0.20

2.14±0.20

1.94±0.20

1.68±0.20

153

15

1.50±0.20

2.30±0.20

2.10±0.20

1.84±0.20

153

14

1.68±0.20

2.48±0.20

2.28±0.20

2.08±0.20

100

13

1.93±0.20

2.73±0.20

2.53±0.20

2.33±0.20

100

12

2.16±0.25

2.96±0.25

2.76±0.25

2.56±0.25

100

11

2.41±0.25

3.21±0.25

3.01±0.25

2.81±0.25

150

10

2.69±0.25

3.49±0.25

3.29±0.25

3.09±0.25

150

9

3.00±0.25

4.00±0.25

3.80±0.25

3.40±0.25

150

8

3.38±0.25

4.38±0.25

4.18±0.25

3.78±0.25

100

7

3.76±0.25

4.76±0.25

4.56±0.25

4.16±0.25

100

6

4.22±0.25

5.22±0.25

4.92±0.25

4.80±0.25

100

5

4.72±0.25

5.72±0.25

5.42±0.25

5.32±0.25

50

4

5.28±0.30

6.28±0.30

6.02±0.30

5.88±0.25

1

3

5.94±0.30

6.94±0.30

6.74±0.30

6.54±0.25

1

2

6.68±0.30

7.68±0.30

7.48±0.30

7.28±0.25

1

1

7.46±0.30

8.46±0.30

8.26±0.30

8.06±0.25

1

0

8.38±0.30

9.38±0.30

9.18±0.30

8.98±0.25

1



High Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D PrintersHigh Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D PrintersHigh Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D PrintersHigh Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D PrintersHigh Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D PrintersHigh Temperature Withstand Transparent 2.0*4.0MM Extruded PTFE Tubes For 3D Printers
