Specifications
6x4 Dongfeng 10cbm Concrete Mixer Drum Truckmixer drum volume: 8/9/10 cbm
drive type: 6x4
yuchai engine 290hp
factory sale

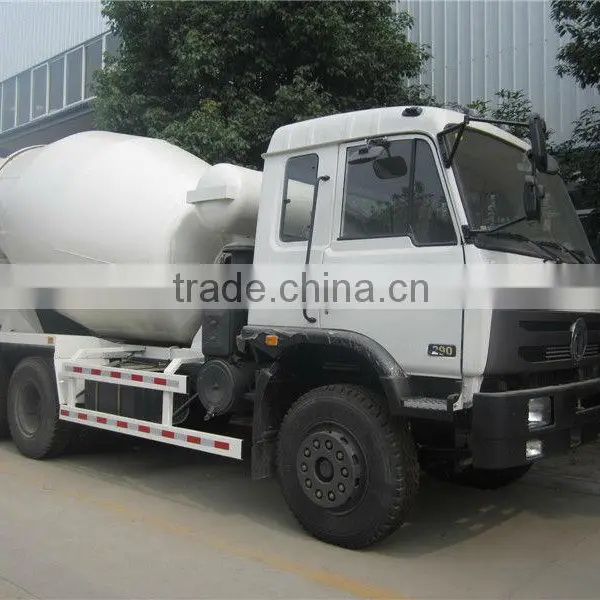

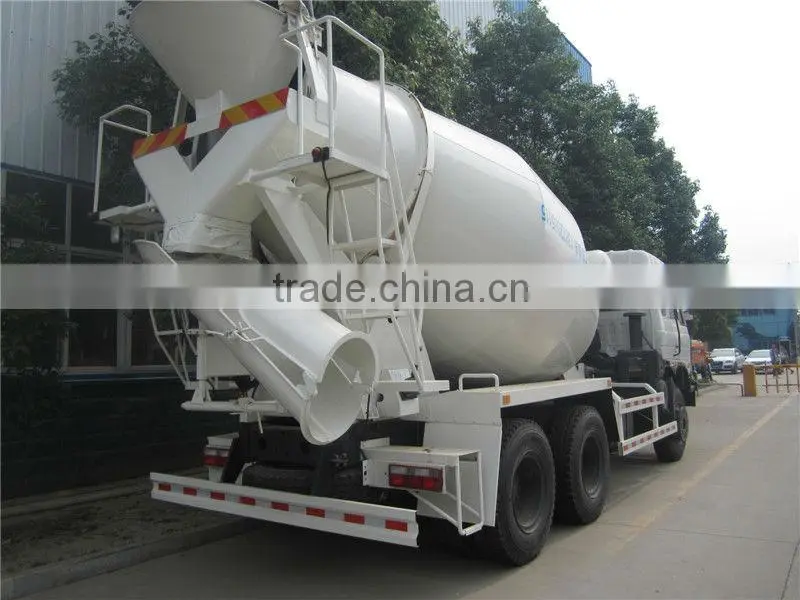

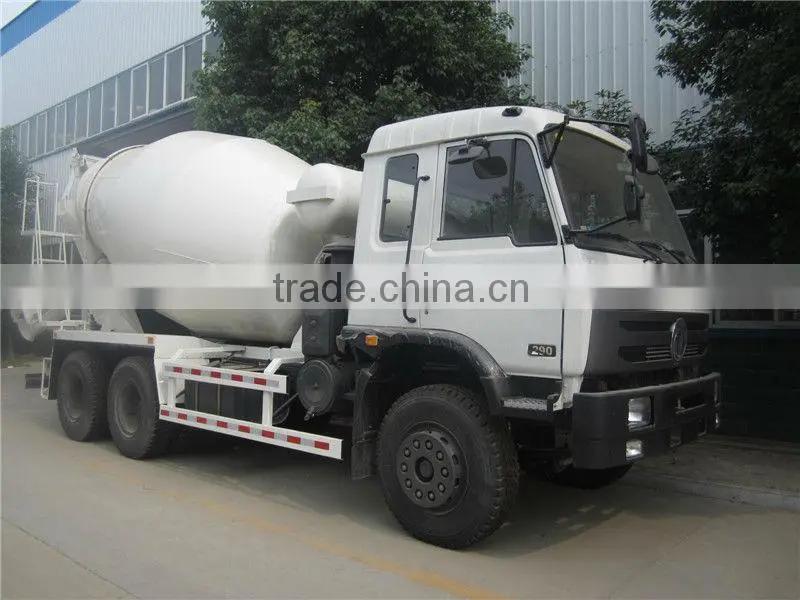

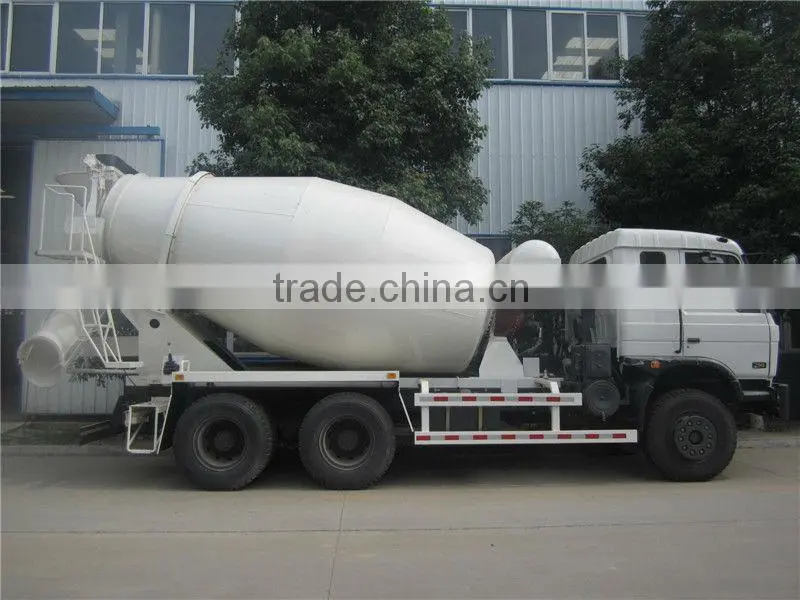

6x4 Dongfeng 10cbm Concrete Mixer Drum Truck
1. we adopt world famous hydraulic transmssion components for our concrete mixer truck.
Hydraulic oil pump: Rexroth, Eaton, Sauer, ARK
Hydraulic motor: Rexroth, Eaton, Sauer, ARK
Reducer: AF, Sauer, PMP, Topunion
2. Convenient and flexible operation system in different styles:
Connecting rod operation mode is applied in driver's cab and both side at the rear part of the vehicle, it can realize three axle linkage which features convenient and simple in operation.
3. High-performance mixing drum:
Wear resistant material B520JJ was gradually applied to the mixing drums and blades, it effectively prolong the service life of the mixing drums, the drum welding was automatic welded by welding robot, which features more steady and reliable.
|
Half height roof cab |
Vehicle mode | EQ5250GJBF |
| Drive Model | 6×4 | |
| Engine | Model | YC6M290-33 |
| (cc)Displacement | 9839 | |
| (Hp/rpm)Max output power | 215/2200 | |
| (N.m/rpm)Max torque | 1460/1200~1600 | |
|
Clutch |
Mode | Single plate,dry,screw spring |
|
Rear Axle |
Model | 16Ton |
| Main parameter | (mm)Overall Dimension | 9550×2500×3880 |
| (mm)Wheel base | 3850+1300 | |
| (mm)Tread | 1980/1860 | |
| (mm)Suspension arm | 1250/2060 | |
| (Kg)Curb weight | 12900 | |
| (Kg)Rated payload | 11805 | |
| (Kg)GVW | 24900 | |
| (Km/h)Max speed | 80 | |
|
Brake system |
Mode | Dual-circuit air brake |
| Brake slack adjust | Automatic adjust | |
| Mixer performance | Mixer barrel geometric volume(m3) | 14.5 |
| Mixer drum volume(m3) | 10 | |
| Mixer barrel tilt | 12° | |
|
Other |
conditioner | Yes |
| Electric glass | Optional |
Our main products:
fire truck, aerial work platform truck, garbage truck, truck mounted crane, refrigerated truck, road sweeper, fuel tanker truck, water tanker truck, vacuum sewage suction truck, fecal sucking truck, road wrecker, dump truck , concrete mixer truck, semi-trailer, tractor truck, van truck, cargo truck
