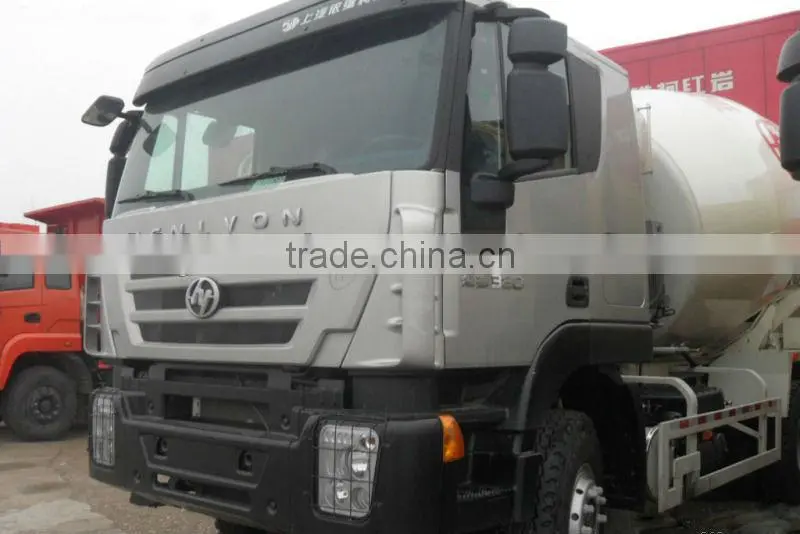

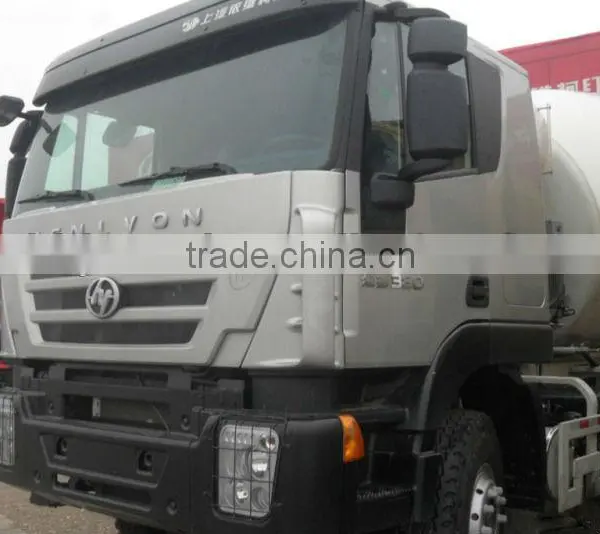

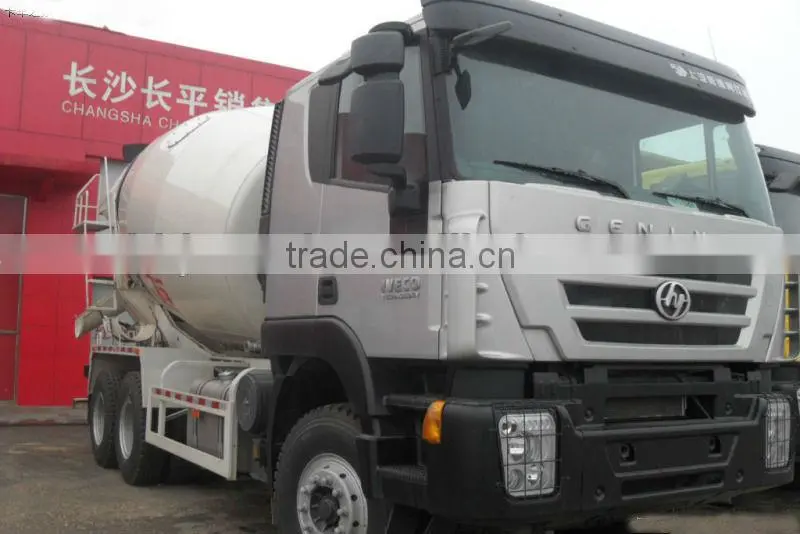

6x4 Hongyan 10cbm Transit Mixer Truck

6x4 Hongyan 10cbm Transit Mixer Truck thumbnail-1
6x4 Hongyan 10cbm Transit Mixer Truck photo-1
US$ 58,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Jiangte
Contact Supplier Request Quote Chat Now
Hubei Jiangnan Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hubei, China
Brand Name Jiangte
Model Number CQ5254GJBHTG384
Weight 25000
Dimension(L*W*H) 9125*2500*3950
Power(W) 276
Certification ccc
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

6x4 Hongyan 10cbm Transit Mixer Truck
volume: 8/10 cbm
drive type: 6x4
engine power 380 ps
factory sale

6X4 Hongyan 10cbm Transit Mixer Truck



Features of our Concrete mixer truck:

1. Complete safety and environmental-protecion measures

Lower installation angle lower down the whole vehicle's center of gravity, this makes the driving more steady and discharging more smooth, and better traffic ability.

2. World famous hydraulic transmission parts:

Qualified hydraulic transmission part is the important guarantee of the reliability of truck-mounted concrete mixer, thus our products adopts the world famous components.

Hydraulic oil pump: Rexroth, Eaton, Sauer, ARK

Hydraulic motor: Rexroth, Eaton, Sauer, ARK

Reducer: AF, SAUER, PMP, TOPUNION

Radiator: AKG, ASA and domestic famous brands

3. Convenient and flexible operation system in different styles:

Connecting rod operatin mode is appled in driver's cab and both side at the rear part of the vehicle

4. Water-supply system:

Electric water pump and pneumatic types are optional






Half height roof cab 		Vehicle mode CQ5254GJBHTG384
Drive Model 6×4
Engine Model WP10.375
(cc)Displacement 9726
(Hp/rpm)Max output power 276/2200
(N.m/rpm)Max torque 1460/1200~1600

Clutch 		Mode Single plate,dry,screw spring

Rear Axle 		Model 16Ton
Main parameter (mm)Overall Dimension 9125×2500×3950
(mm)Wheel base 3825+1350
(mm)Tread 2006/1850
(mm)Suspension arm 1435/875
(Kg)Curb weight 12980
(Kg)Rated payload 11890
(Kg)GVW 25000
(Km/h)Max speed 80

Brake system 		Mode Dual-circuit air brake
Brake slack adjust Automatic adjust
Mixer performance Mixer barrel geometric volume(m3) 10
Mixer drum volume(m3) 14
Mixer barrel tilt 12°

Other 		conditioner Yes
Electric glass Optional



6x4 Hongyan 10cbm Transit Mixer Truck



6x4 Hongyan 10cbm Transit Mixer Truck
