Specifications
8cbm XCMG cement mixing truckmixer drum volume: 8/9/10 cbm
drive type: 6x4
engine power 336ps
factory sale

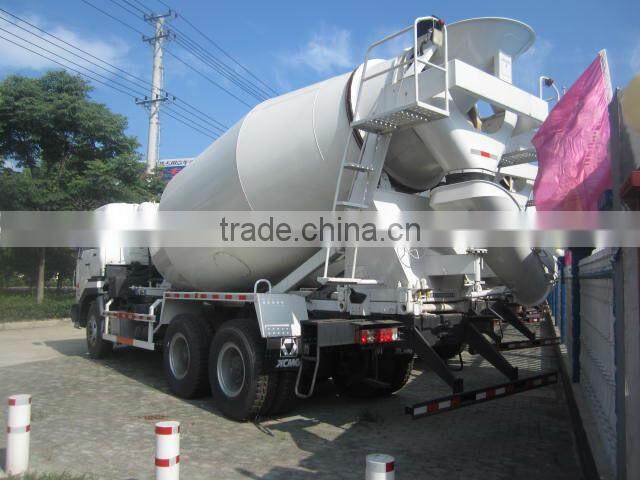

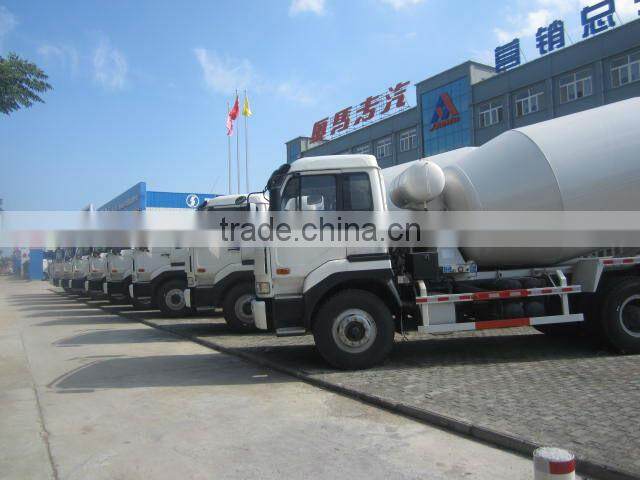

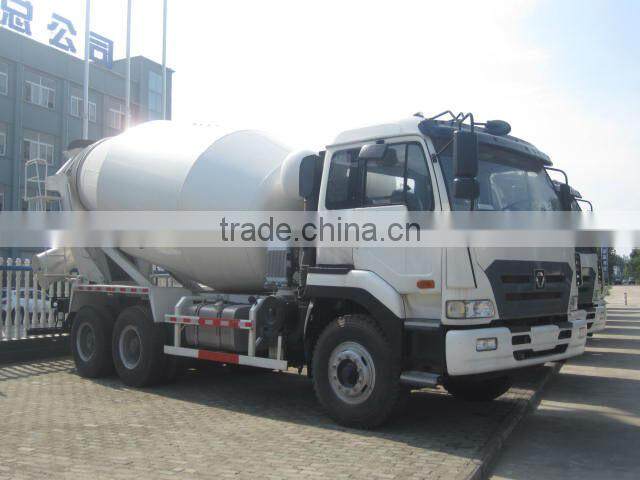

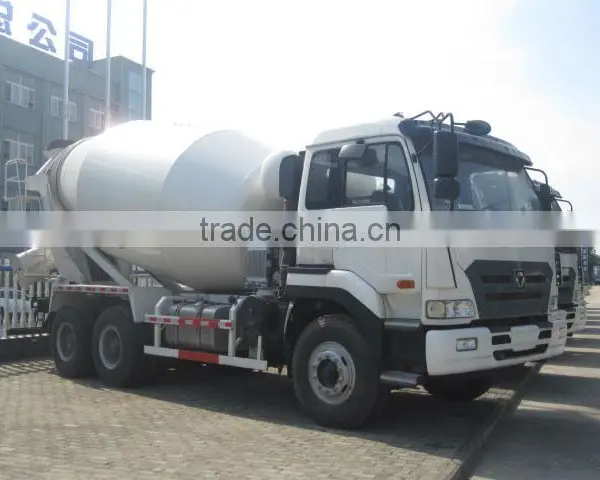

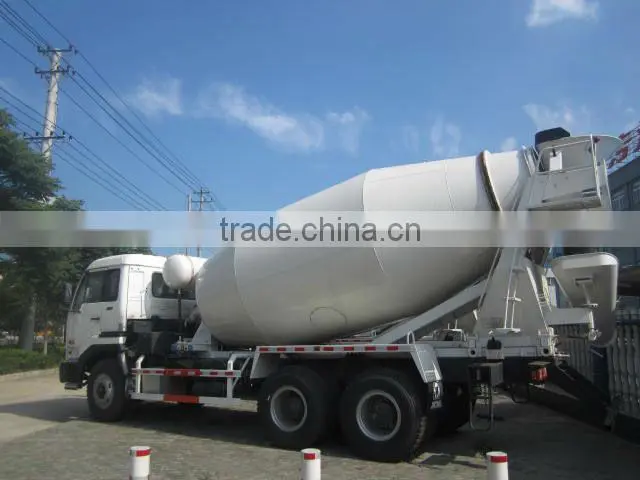

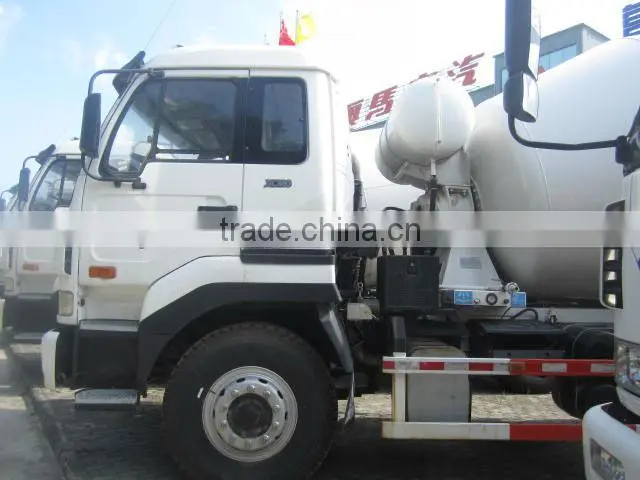

8cbm XCMG Cement Mixing Truck
1. We adopt world famous hydraulic transmssion components for our concrete mixer truck.
Hydraulic oil pump: Rexroth, Eaton, Sauer, ARK
Hydraulic motor: Rexroth, Eaton, Sauer, ARK
Reducer: AF, Sauer, PMP, Topunion
2. Convenient and flexible operation system in different styles:
Connecting rod operation mode is applied in driver's cab and both side at the rear part of the vehicle, it can realize three axle linkage which features convenient and simple in operation.
3. High-performance mixing drum:
Wear resistant material B520JJ was gradually applied to the mixing drums and blades, it effectively prolong the service life of the mixing drums, the drum welding was automatic welded by welding robot, which features more steady and reliable.
4. With different chassis selected, transportation with agitation tanks of different volumes (3m³, 5m³, 8m³, 12m³, 14m³, 16m³, etc.) is allowed.
8cbm XCMG Cement Mixing Truck Technical Specification | ||
Truck model | JDF5250GJBA7 | |
Cabin | Single row with a bench | |
Drive model | 6x4 | |
Dimension | Wheelbase | 3650+1350 |
Overall dimension (L*W*H) | 9500X2500X3980 mm | |
Wheel track (F/R) | 2047/1860 | |
Weight | Gross weight | 24995kg |
Rated payload weight | 10865kg | |
Curb weight | 14000kg | |
Engine | Engine model | WP10.336E32 |
Engine make | Weichai power | |
Rated power | 247kw (336hp) | |
Displacement | 9726ml | |
Hydraulic system | Mixing drum volume | 8cbm |
Filling rate(%) | 63% | |
Feeding speed (m3/min) | ≥3 | |
Discharge speed (m3/min) | ≥2.0 | |
Residue rate (m3/min) | ≤1.0 | |
Rotation speed of mixing drum(r/min) | 0-12 | |
Inclination of mixing drum(°) | 13-15 | |
Hydraulic drive | Oil pump | Italy brand |
Hydraulic motors | ||
decelerator | ||
