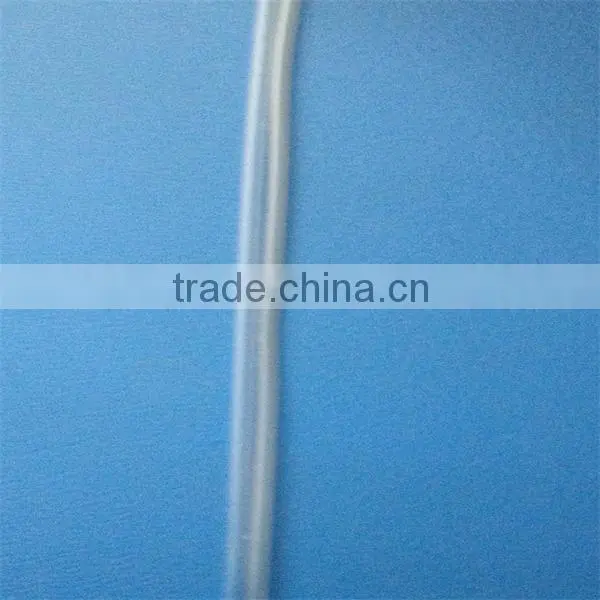

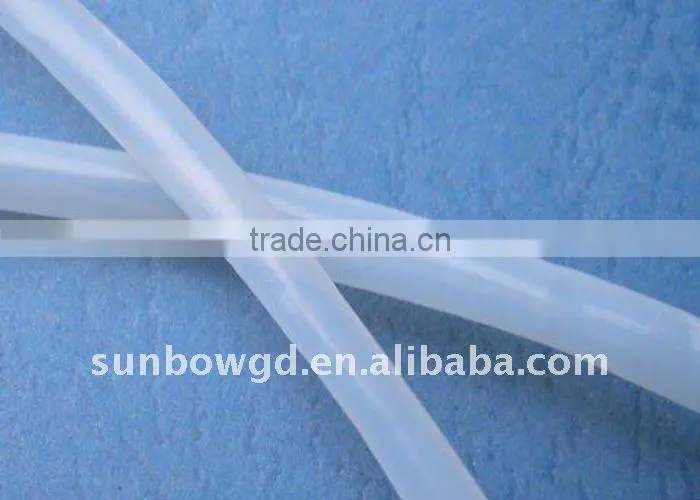

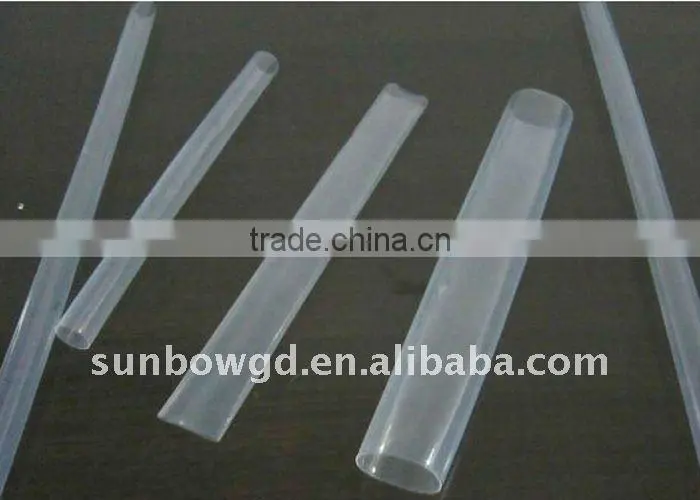

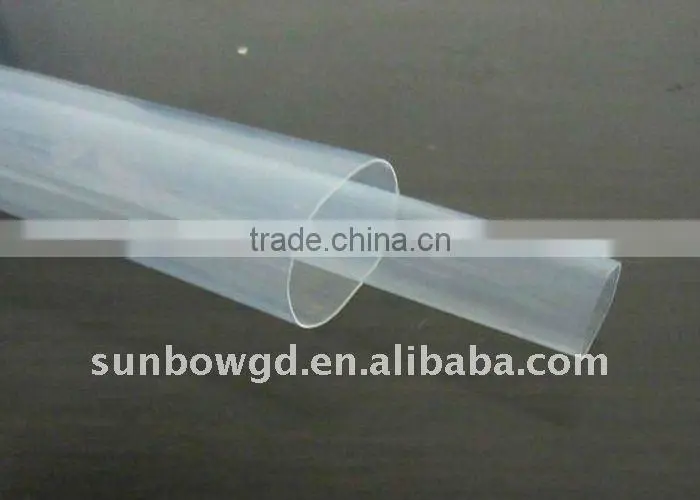

Excellent abrasion and cut-through tolerance 4mm PVDF Kynar shrink tubings
Description
175°C high temperature Chemical resistant PVDF tubing (Kynar® tube)
Seni-rigid thin wall Kynar®* heat shrink tubing,ideal for electronic,automotive and military applications requiring protection and see-through inspection
Usage
It is widely used in electrical, computer, electro thermal, aerospace, military, and telecommunication etc.
Features
- High withatand to abrasion and cut-through.
- Excellent chemical and solvent resistance.
- Continuous Operating Temperature:-55°C to 175°C.
- Shrink Temperature:175°C.
- *Kynar®is a registered trademark of ATOFINA.
Technical Data
Item |
Test Method |
Unit |
Specifications |
Min.shrinktemperature |
- |
°C |
155 |
Operation temperature |
- |
°C |
-55~175 |
Specific Gravity |
ASTM D792 |
g/cm3 |
1.78 |
Tensile strength |
ASTM D2671 |
M Pa |
≥25 |
Elongation at break |
ASTM D2671 |
% |
≥550 |
After Aging Elongation |
250°C,168h |
% |
≥500 |
Heat Shock |
300°C,4h |
- |
-No Cracking- |
Cold Bend |
-55°C,4h |
- |
-No Cracking- |
Volume Resistivity |
ASTM D257 |
Ω.cm |
≥1014 |
Flammability Rating |
UL-224 |
VW-1 |
Pass |
Dimension(2:1)
size |
Assupplied(mm) |
After recovery(mm) |
Standard Package |
||
inch |
mm |
Internal Diameter(mm) |
Internal Diameter (mm) |
Wall T Thickness(mm) |
Spool Length M/Spool |
3/64 |
1.2 |
1.2 |
0.6 |
0.25±0.05 |
200 |
1/16 |
1.6 |
1.6 |
0.8 |
0.25±0.05 |
200 |
3/32 |
2.4 |
2.4 |
1.2 |
0.25±0.05 |
200 |
1/8 |
3.2 |
3.2 |
1.6 |
0.25±0.05 |
100 |
3/16 |
4.8 |
4.8 |
2.4 |
0.25±0.05 |
100 |
1/4 |
6.4 |
6.4 |
3.2 |
0.30±0.05 |
100 |
3/8 |
9.5 |
9.5 |
4.8 |
0.30±0.05 |
50 |
1/2 |
12.7 |
12.7 |
6.4 |
0.30±0.05 |
50 |
3/4 |
19.1 |
19.1 |
9.5 |
0.42±0.05 |
50 |
1 |
25.4 |
25.4 |
12.7 |
0.50±0.05 |
50 |
1-1/2 |
38.1 |
38.1 |
19.1 |
0.50±0.05 |
50 |
