Home > Products > aerial platform truck > 24m Hydraulic Platform Truck
24m Hydraulic Platform Truck
- Shanghai
- T/T
You May Like
Product Details
| Transmission Type | Manual | Condition | New | |
| Emission Standard | Euro 3 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 9420x2470x3750 | Place of Origin | Hubei, China | |
| Brand Name | Jiangte | Model Number | JDF5111JGKG |
Product Description
Specifications
24m hydraulic platform truckccc quality certificate
articulated boom type
cummins engine 170ps
emergency pump monte
24m hydraulic platform truck
this hydraulic platform truck is one of our matured products, is consisted of DongFeng classic second type chassis, hydraulic parts, 5 section of boom, and a basket at the end, which rated load 200kg.
Vehicle name | 24m hydraulic platform truck | ||
Cabin | single row, has sleeper bed, 3 seats | ||
Drive type | 4x2, left hand drive | ||
Wheel base | 5100mm | ||
Overall dimension (L*W*H) | 9420x2470x3750 mm | ||
Weight | GVW | 11395 kg | |
Curb weight | 11200 kg | ||
Engine | Engine model | B170 33 | |
Make | Cummins | ||
Rated power / Displacement | 125 kw / 5900 ml | ||
Emission standard | Euro 2 | ||
Tire type | 9.00-20, 6 pcs | ||
Gear box | manual, 6 speed | ||
Max working height | 20m | ||
Max working radius | 11.5 m | ||
Boom type | articulated boom, 5 section of boom | ||
Outriggers | 4 pcs, H type | ||
Bucket rated load | 200kg | ||
Operation | manual | ||

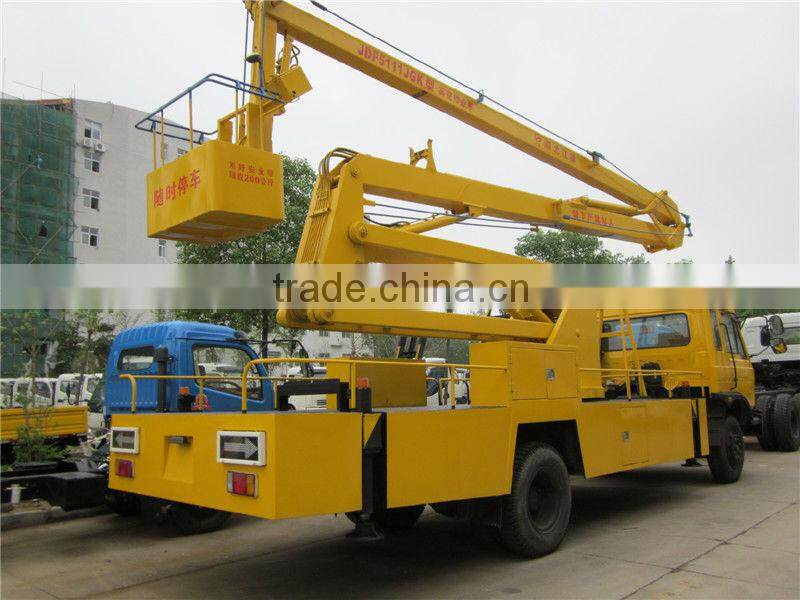

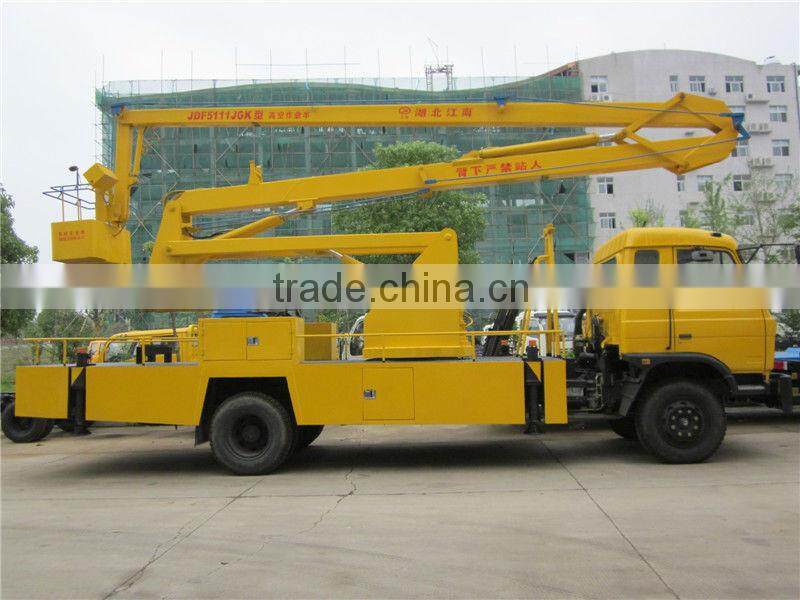

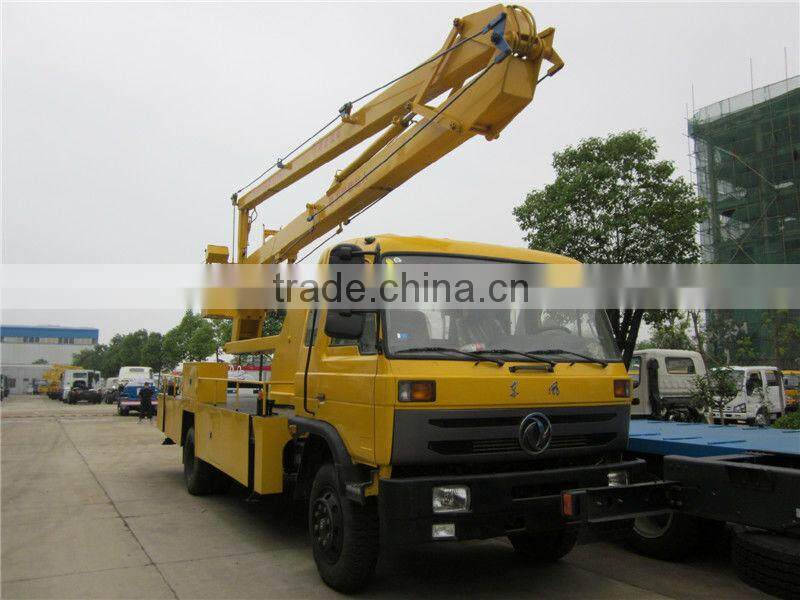

More image of the 24m hydraulic platform truck:
The turntable and bucket can both control, the interlock between the superstructure and undercarriage can effectively avoid misoperation which is safe and reliable.
The large outrigger span features good stability.
The work platform is mounted at the rear part, which is convenient to enter or exit the cab, and it also reduce the gravity of the whole machine and improves traval performance.
Equipped with emergency pump

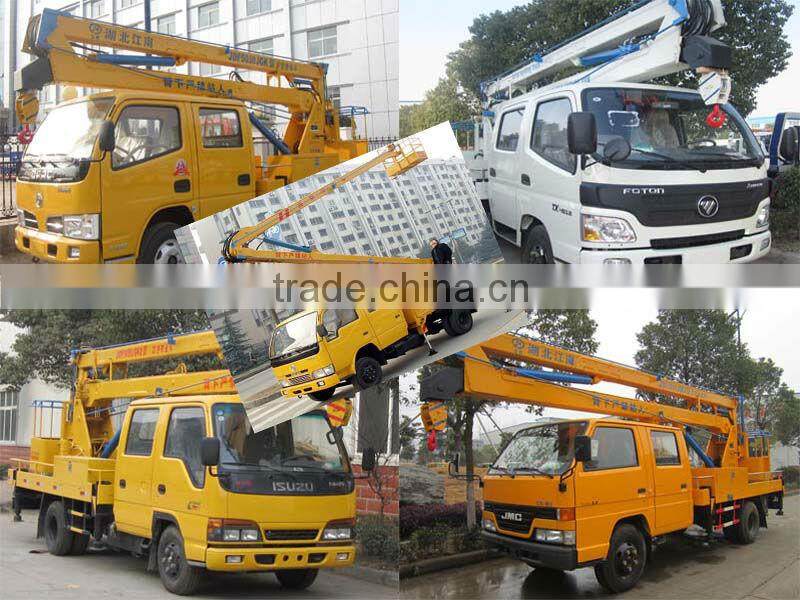

Our main products:
