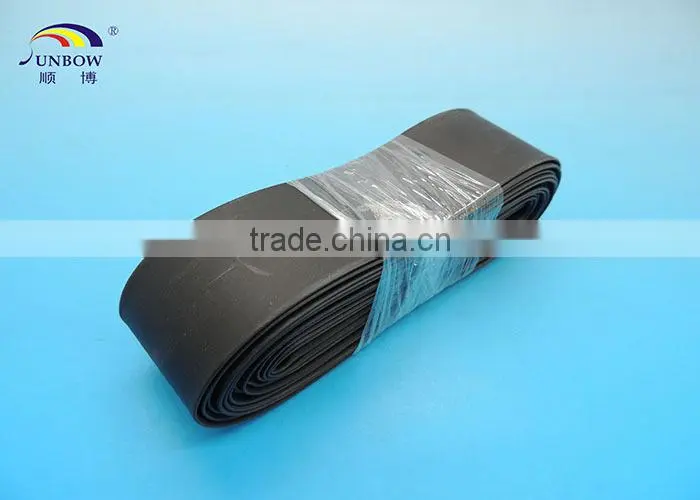

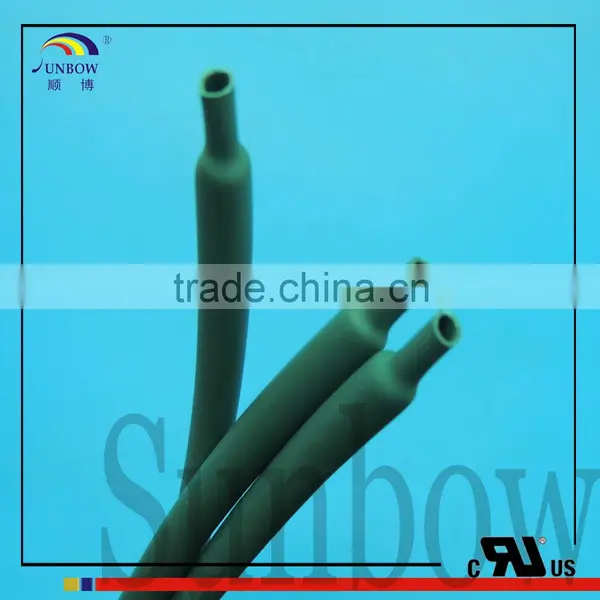

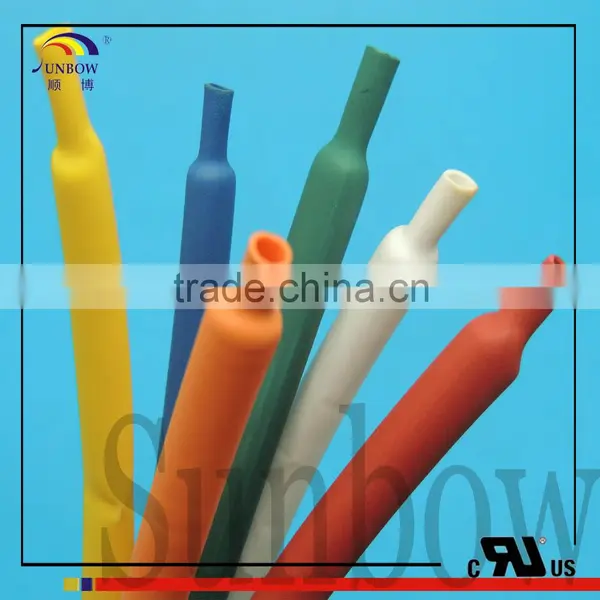

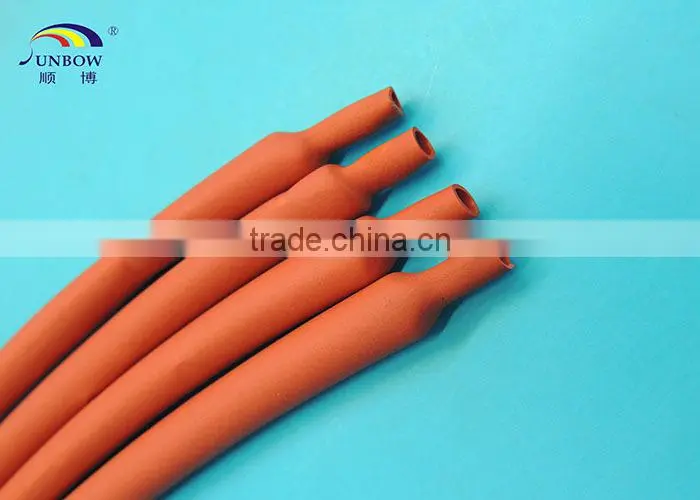

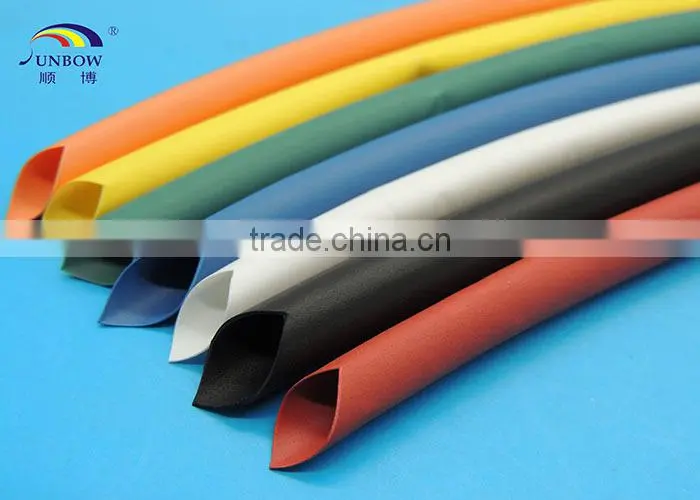

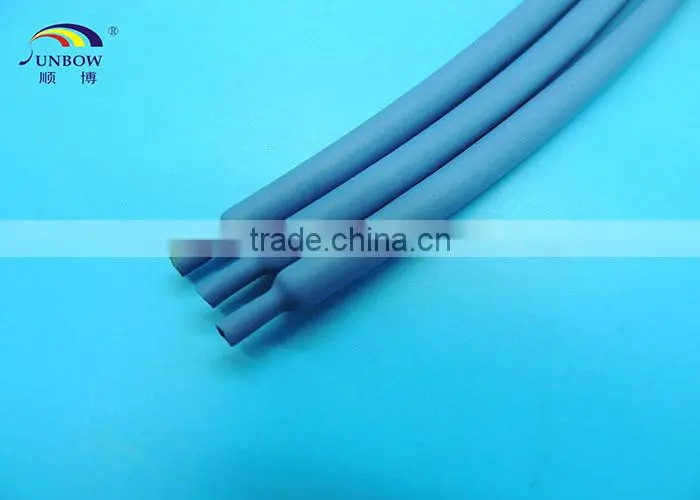

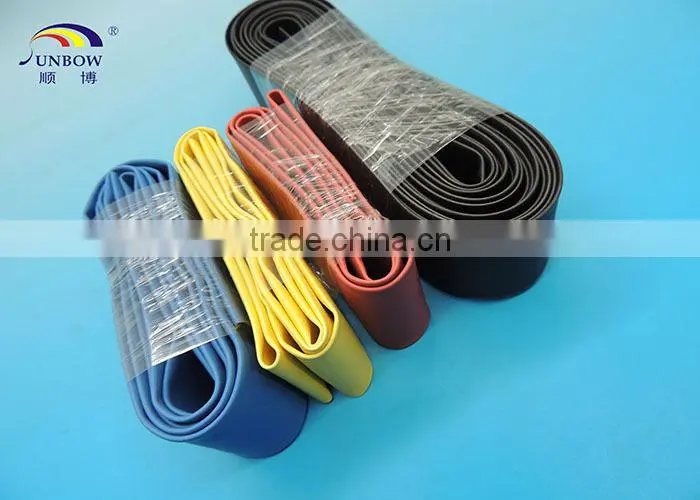

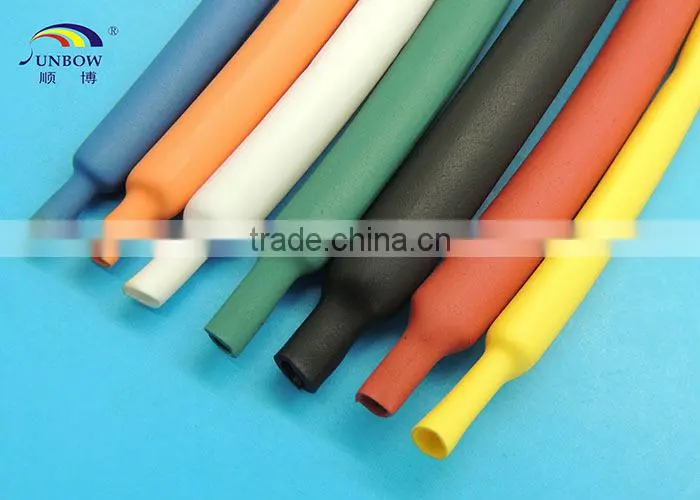

With ISO 9001:2008 Standard UL Flexible Insulation Flame Retardant Heat-shrinkable T Bush
MAIN PROPERTIES
1. Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
2. Shrink ratio: 2:1
3. Shrink temperature: 84ºC ~ 120ºC
STRUCTURE
With ISO 9001:2008 Standard UL Flexible Insulation Flame Retardant Heat-shrinkable T Bush is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.
APPLICATION
With ISO 9001:2008 Standard UL Flexible Insulation Flame Retardant Heat-shrinkable T Bush is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.
SPECIFICATION
Property |
Unit |
Test Method |
Standard |
|
Tensile Strength |
MPA |
≥10.4(Before Aging) |
GB/T 1040 |
|
≥7.3(After Aging) |
158ºC*168hrs |
|||
Breakage Elongation (%) |
% |
≥200(Before Aging) |
GB/T 1040 |
|
≥100(After Aging) |
158ºC*168hrs |
|||
Heat Shock |
- |
No Sticking & No Cracking |
250ºC*4hrs |
|
Cold Blend |
- |
No Cracking |
-30ºC*4hrs |
|
Breakdown Strength |
KV/mm |
≥15 |
GB/T 1408 |
|
Dielectric Withstand |
600V |
- |
Pass |
No Breakdown for 2500V, 60s |
300V |
- |
Pass |
No Breakdown for 1500V,60s |
|
Volume Resistivity |
Ω. cm |
≥1×1014 |
GB/T 1410 |
|
Corrosion Performance |
- |
pass |
158ºC*168hrs |
|
Copper Stability |
- |
pass |
158ºC*168hrs |
|
Flammability |
- |
pass |
VW-1 |
|
DIMENSION
|
Inner Diameter |
As Supplied(mm) |
After Recovery(mm) |
Standard Package |
Application Range(mm) |
||
Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
(m/spool) |
||
Φ0.6 |
0.9±0.2 |
0.20±0.05 |
≤0.40 |
0.33±0.10 |
400 |
0.4~0.7 |
Φ0.8 |
1.1±0.2 |
0.20±0.05 |
≤0.50 |
0.33±0.10 |
400 |
0.6~0.8 |
Φ1.0 |
1.5±0.2 |
0.20±0.05 |
≤0.65 |
0.36±0.10 |
400 |
0.75~0.9 |
Φ1.5 |
2.0±0.2 |
0.20±0.05 |
≤0.85 |
0.36±0.10 |
400 |
0.95~1.4 |
Φ2.0 |
2.5±0.2 |
0.23±0.05 |
≤1.00 |
0.45±0.10 |
400 |
1.1~1.8 |
Φ2.5 |
3.0±0.2 |
0.23±0.05 |
≤1.30 |
0.45±0.10 |
400 |
1.35~2.3 |
Φ3.0 |
3.5±0.2 |
0.23±0.05 |
≤1.50 |
0.45±0.10 |
400 |
1.6~2.7 |
Φ3.5 |
4.0±0.2 |
0.23±0.05 |
≤1.80 |
0.45±0.10 |
400 |
1.85~3.2 |
Φ4.0 |
4.5±0.2 |
0.25±0.05 |
≤2.00 |
0.45±0.10 |
400 |
2.1~3.6 |
Φ4.5 |
5.0±0.2 |
0.28±0.05 |
≤2.30 |
0.56±0.10 |
200 |
2.35~4.0 |
Φ5.0 |
5.5±0.2 |
0.28±0.05 |
≤2.50 |
0.56±0.10 |
200 |
2.6~4.5 |
Φ6.0 |
6.5±0.2 |
0.28±0.05 |
≤3.00 |
0.56±0.10 |
200 |
3.1~5.4 |
Φ7.0 |
7.5±0.3 |
0.28±0.05 |
≤3.50 |
0.56±0.10 |
100 |
3.7~6.3 |
Φ8.0 |
8.5±0.3 |
0.30±0.08 |
≤4.00 |
0.56±0.10 |
100 |
4.2~7.2 |
Φ9.0 |
9.5±0.3 |
0.30±0.08 |
≤4.50 |
0.56±0.10 |
100 |
4.7~8.0 |
Φ10 |
10.5±0.3 |
0.30±0.08 |
≤5.00 |
0.56±0.10 |
100 |
5.2~9.0 |
Φ11 |
11.5±0.3 |
0.30±0.08 |
≤5.50 |
0.56±0.10 |
100 |
5.7~10 |
Φ12 |
12.5±0.3 |
0.30±0.08 |
≤6.00 |
0.56±0.10 |
100 |
6.2~11 |
Φ13 |
13.5±0.3 |
0.30±0.08 |
≤6.50 |
0.56±0.10 |
100 |
6.7~12 |
Φ14 |
14.5±0.3 |
0.35±0.10 |
≤7.00 |
0.70±0.10 |
100 |
7.3~13 |
Φ15 |
15.5±0.4 |
0.35±0.10 |
≤7.50 |
0.70±0.10 |
100 |
7.8~14 |
Φ16 |
16.5±0.4 |
0.35±0.10 |
≤8.00 |
0.70±0.10 |
100 |
8.3~15 |
Φ17 |
17.5±0.4 |
0.35±0.10 |
≤8.50 |
0.70±0.10 |
100 |
8.8~16 |
Φ18 |
19.0±0.5 |
0.35±0.10 |
≤9.00 |
0.70±0.10 |
100 |
9.3~17 |
Φ20 |
22.0±0.5 |
0.35±0.10 |
≤10.00 |
0.83±0.15 |
100 |
10.4~19 |
Φ22 |
24.0±0.5 |
0.40±0.12 |
≤11.00 |
0.83±0.15 |
100 |
11.4~21 |
Φ25 |
26.0±0.5 |
0.40±0.12 |
≤12.50 |
0.90±0.15 |
50 |
12.8~24 |
Φ28 |
29.0±0.5 |
0.45±0.12 |
≤14.00 |
0.90±0.15 |
50 |
14.4~29 |
Φ30 |
31.5±1.0 |
0.45±0.12 |
≤15.00 |
1.00±0.15 |
50 |
16~29 |
Φ35 |
36.5±1.0 |
0.45±0.12 |
≤17.50 |
1.00±0.15 |
50 |
18~34 |
Φ40 |
41.5±1.0 |
0.45±0.12 |
≤20.00 |
1.00±0.15 |
50 |
21~39 |
Φ45 |
46.5±1.0 |
0.50±0.15 |
≤22.5 |
1.00±0.15 |
25 |
23.5~44 |
Φ50 |
≥50 |
0.50±0.15 |
≤25.0 |
1.10±0.15 |
25 |
26~49 |
Φ60 |
≥60 |
0.60±0.15 |
≤30.0 |
1.20±0.15 |
25 |
35~55 |
Φ70 |
≥70 |
0.65±0.15 |
≤35.0 |
1.30±0.20 |
25 |
40~65 |
Φ80 |
≥80 |
0.65±0.15 |
≤40.0 |
1.30±0.20 |
25 |
45~75 |
Φ90 |
≥90 |
0.65±0.15 |
≤45.0 |
1.30±0.20 |
25 |
50~85 |
Φ100 |
≥100 |
0.65±0.20 |
≤50.0 |
1.30±0.20 |
25 |
55~95 |
Φ120 |
≥120 |
0.65±0.20 |
≤60.0 |
1.30±0.20 |
25 |
65~115 |
Φ150 |
≥150 |
0.65±0.20 |
≤70.0 |
1.30±0.20 |
25 |
80~145 |
Φ180 |
≥180 |
0.65±0.30 |
≤90.0 |
1.30±0.30 |
25 |
95~175 |
Φ210 |
≥210 |
0.65±0.30 |
≤105.0 |
1.30±0.30 |
25 |
110~205 |
Φ230 |
≥230 |
0.65±0.30 |
≤115.0 |
1.30±0.30 |
25 |
120~225 |
Φ250 |
≥250 |
0.65±0.30 |
≤125.0 |
1.30±0.30 |
25 |
130~240 |
FREQUENTLY ASKED QUESTIONS
Q1. You are a factory or trading company?
We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
Normally, 1000m per size.
Q4. What are your payment terms?
T/T 100% or West Union
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
Try a small order, and then you can judge.
Q7. Have you passed any certificates?
Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
1) ISO 9001 : 2008 TS 16949 standard factory manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
