SUNBOW UL Flexible Eco-friendly Insulation Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing
1. Model
SB-SBRS-(3X, 4X)
2. Working Temperature
-45°c ~ 125°c
3. Structure
SUNBOW UL Flexible Eco-friendly Insulation Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing is composed of polyolefin for outside layer and high quality hot melt adhesive for inside layer. The outside layer has the advantages of insulation, anti-corrosion, wearproof, flexibility and self-extinguishing. The inside layer has the advantages of low melt point, waterproof, sealing and mechanical strain buffer. It is very easy to install. There are 3:1 & 4:1 heat shrink ratios available. The product has passed 600V/300V certification (ULE203950/CSA).
4. Characteristics
1) working temperature: -45°c ~ 125°c
2) shrink temperature: 70°c ~ 125°c
3) shrink ratio: 3:1 & 4:1
4) tensile strength: ≥10.4 Mpa
5) Elongation at break: ≥300%
6) breakdown strength: ≥ 15MV/m
7) softening point: 85°c
8) water absorption rate: ≤0.2%
5. Dimension
SBRS-(3X)G 3:1
Size |
As supplied(mm) Min I.D. |
After recovery(mm) |
Standard package M/Spool |
|||
mm |
inch |
mm |
inch |
Adhesive thickness |
||
Φ2.4 |
3/32 |
≥2.4 |
≤0.80 |
0.85±0.15 |
0.40±0.10 |
200 |
Φ3.2 |
1/8 |
≥3.2 |
≤1.00 |
0.95±0.15 |
0.40±0.10 |
200 |
Φ4.8 |
3/16 |
≥4.8 |
≤1.60 |
1.10±0.15 |
0.40±0.10 |
100 |
Φ6.4 |
1/4 |
≥6.4 |
≤2.20 |
1.20±0.15 |
0.45±0.10 |
100 |
Φ7.9 |
5/16 |
≥7.9 |
≤2.70 |
1.35±0.15 |
0.50±0.10 |
100 |
Φ9.5 |
3/8 |
≥9.5 |
≤3.20 |
1.45±0.20 |
0.50±0.15 |
50 |
Φ12.7 |
1/2 |
≥12.7 |
≤4.20 |
1.70±0.20 |
0.50±0.15 |
1.22 |
Φ15.0 |
5/8 |
≥15.0 |
≤5.20 |
1.80±0.20 |
0.55±0.15 |
1.22 |
Φ19.1 |
3/4 |
≥19.1 |
≤6.30 |
2.00±0.20 |
0.55±0.15 |
1.22 |
Φ25.4 |
1 |
≥25.4 |
≤8.50 |
2.10±0.25 |
0.55±0.15 |
1.22 |
Φ30.0 |
1-1/4 |
≥30.0 |
≤10.20 |
2.20±0.25 |
0.60±0.15 |
1.22 |
Φ39.0 |
1-1/2 |
≥39.0 |
≤13.50 |
2.40±0.25 |
0.60±0.15 |
1.22 |
Φ50.0 |
2 |
≥50.0 |
≤17.00 |
2.70±0.25 |
0.80±0.15 |
1.22 |
Φ64.0 |
2-1/2 |
≥64.0 |
≤21.00 |
3.00±0.30 |
0.80±0.20 |
1.22 |
Φ76.0 |
3 |
≥76.0 |
≤25.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ90.0 |
3-1/2 |
≥90.0 |
≤30.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ100 |
4 |
≥100 |
≤34.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ125 |
5 |
≥125 |
≤42.00 |
3.00±0.30 |
1.00±0.15 |
1.22 |
SBRS-(4X)G 4:1
Size |
As supplied(mm) Min I.D. |
After recovery(mm) |
Standard package |
|||
mm |
inch |
Max I.D. |
Total W.T. |
Adhesive thickness |
||
Φ4.0 |
2/13 |
≥4.0 |
≤1.0 |
1.0±0.15 |
0.4±0.15 |
200 |
Φ6.0 |
1/4 |
≥6.0 |
≤1.5 |
1.1±0.15 |
0.4±0.15 |
100 |
Φ8.0 |
5/16 |
≥8.0 |
≤2.0 |
1.2±0.15 |
0.5±0.15 |
1.22 |
Φ12.0 |
1/2 |
≥12.0 |
≤3.0 |
1.4±0.15 |
0.5±0.15 |
1.22 |
Φ16.0 |
5/8 |
≥16.0 |
≤4.0 |
1.7±0.15 |
0.6±0.15 |
1.22 |
Φ20.0 |
15/19 |
≥20.0 |
≤5.0 |
2.0±0.25 |
0.6±0.15 |
1.22 |
Φ24.0 |
1 |
≥24.0 |
≤6.0 |
2.1±0.25 |
0.6±0.15 |
1.22 |
Φ32.0 |
1 1/4 |
≥32.0 |
≤8.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
Φ52.0 |
2 |
≥52.0 |
≤13.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
6. Application
SUNBOW UL Flexible Eco-friendly Insulation Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing has the functions of waterproof, anticorrosion, insulation and mechanical protection of the pipe tubes. It can be widely used in electrons, electricity, communications, automobiles, ships and aeroplanes.

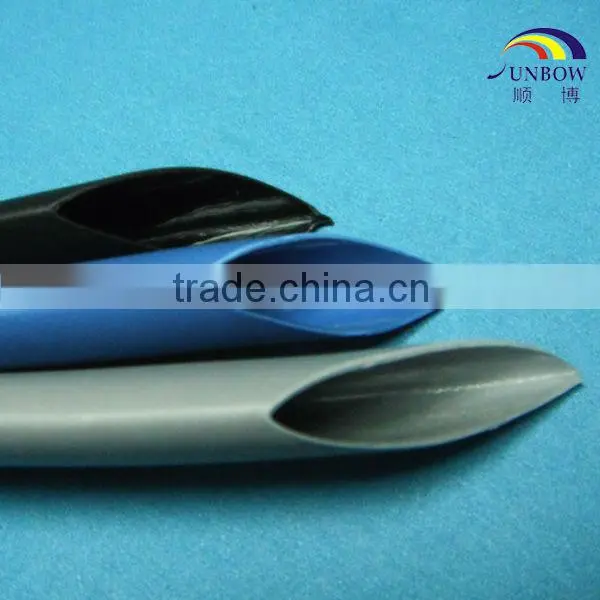

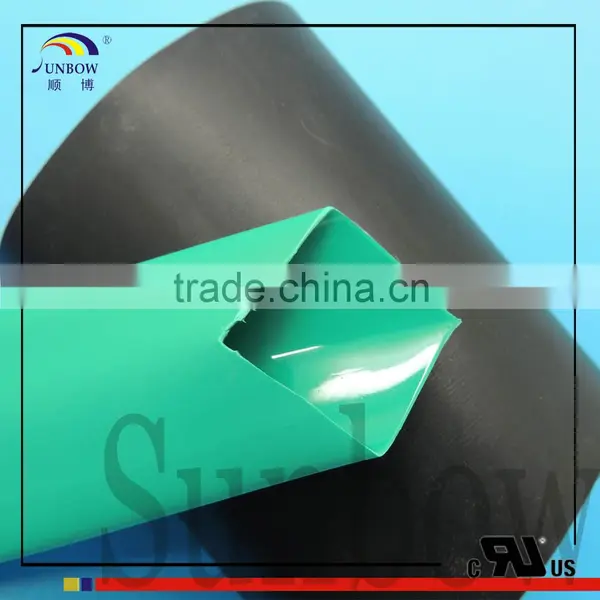

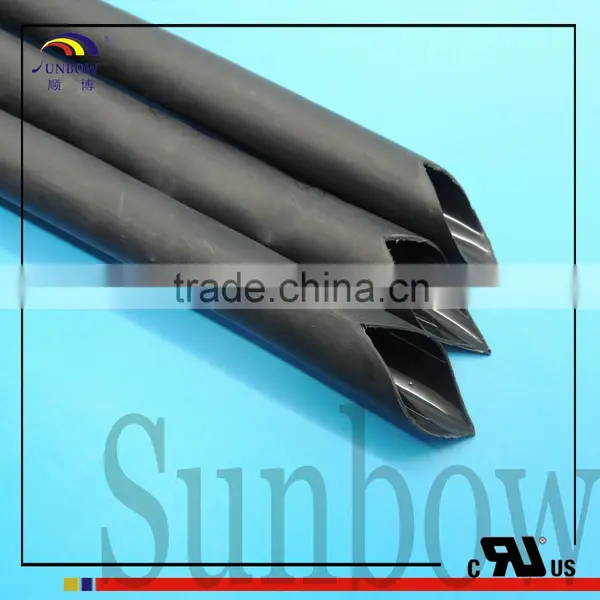

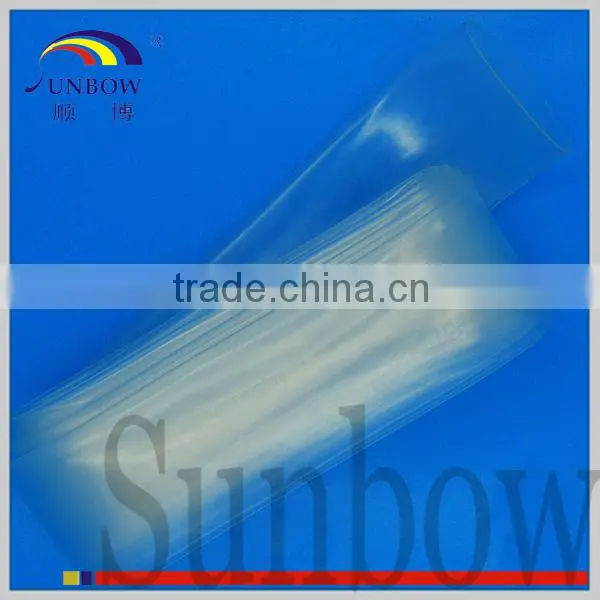

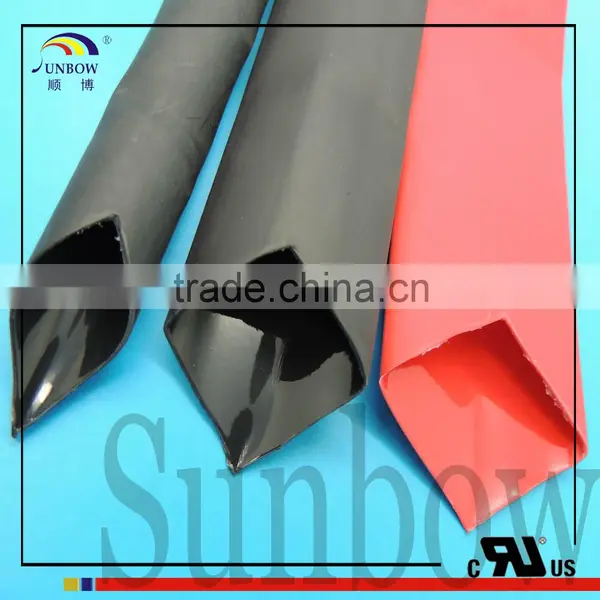

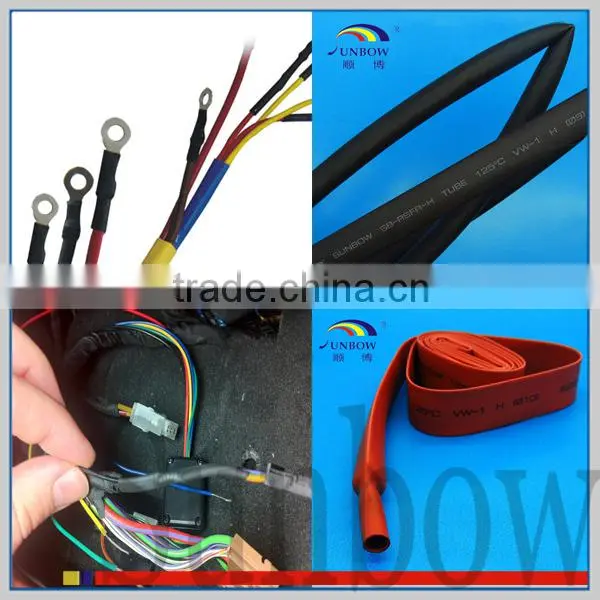

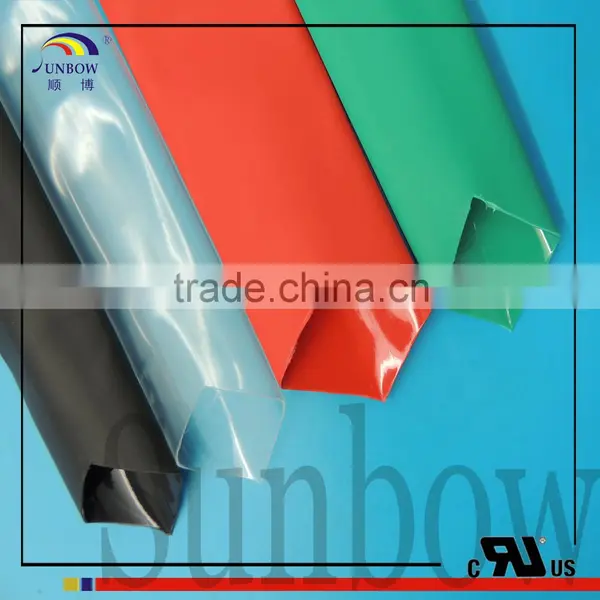

7. More Pictures
8. Our Services
1) 3~5 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
9. About Sunbow
1) 10-year exporting experience
2) 15-year manufacturing experience
3) ISO9001:2008 quality management system certification
4) product certifications: CUL (E333178---UZIQ2 VW-1; E333177---UZFT2/8 200C 600V); RoHS; REACH; 600V/300V
5) business partners:
Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT, IKEA and Midea
