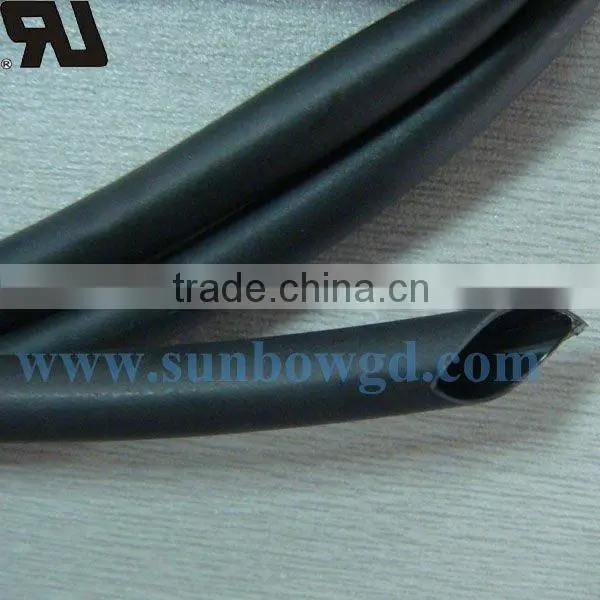

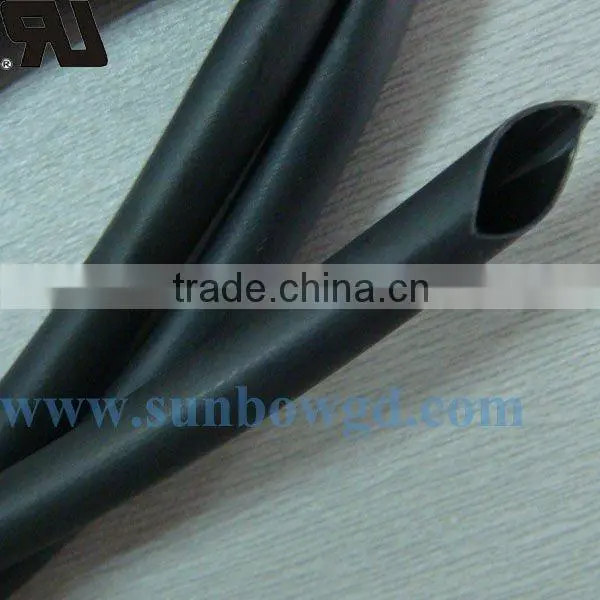

Semi-regid Flame Retardant Polyolefin Heat Shrink Tubing Shrink Ratio 2:1 SBRS-(4X)GR
1. Model
SB-SBRS-(4X)GR
2. Working Temperature
-45~125C
3. Structure
Semi-regid Flame Retardant Polyolefin Heat Shrink Tubing Shrink Ratio 2:1 SBRS-(4X)GR is composed of polyolefin for outside layer and hot melt adhesive for inside layer. The outside layer has the advantages of insulation, anticorrosion and wearproof. The inside layer has the advantages of low melting point, waterproof, sealing and mechanical strain buffer.
4. Characteristics
1) working temperature: -45~125C
2) shrink ratio: 4:1
3) shrink temperature: 70~125C
4) insulation, anti-corrosion, wearproof, low melting point, waterproof and mechanical strain buffer
5) UL, REACH, RoHS, SGS certifications
5. Dimension
Size |
As supplied(mm) |
After recovery(mm) |
Standard length |
||||
Inch |
mm |
Min. I.D. |
Max.I.D. |
Total W.T. |
Adhesive thickness |
M/roll |
M/pc |
1/4 |
φ6.0 |
6.0 |
1.27 |
1.26±0.30 |
0.50±0.30 |
100 |
|
5/16 |
φ8.0 |
8.0 |
1.65 |
1.70±0.30 |
0.75±0.30 |
100 |
|
1/2 |
φ12.0 |
12.0 |
2.41 |
2.10±0.30 |
0.95±0.30 |
— |
1.22 |
3/4 |
φ18.0 |
18.0 |
4.45 |
2.60±0.30 |
1.30±0.30 |
— |
1.22 |
6. Application
Semi-regid Flame Retardant Polyolefin Heat Shrink Tubing Shrink Ratio 2:1 SBRS-(4X)GR can be used for waterproof, anti-corrosion, insulation and mechanical protection. It can be also used in electrons, electricity, communications, automobiles, ships and aeroplanes.

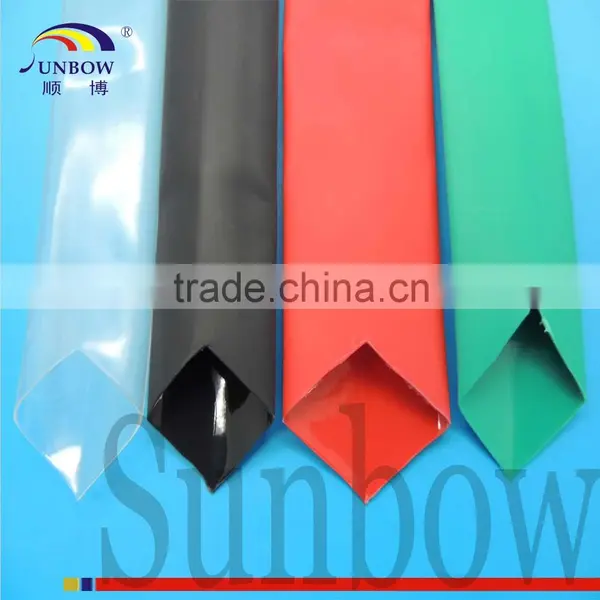

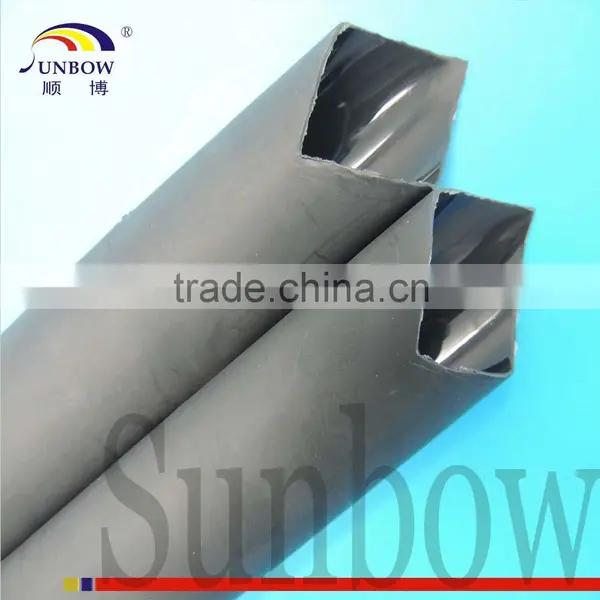

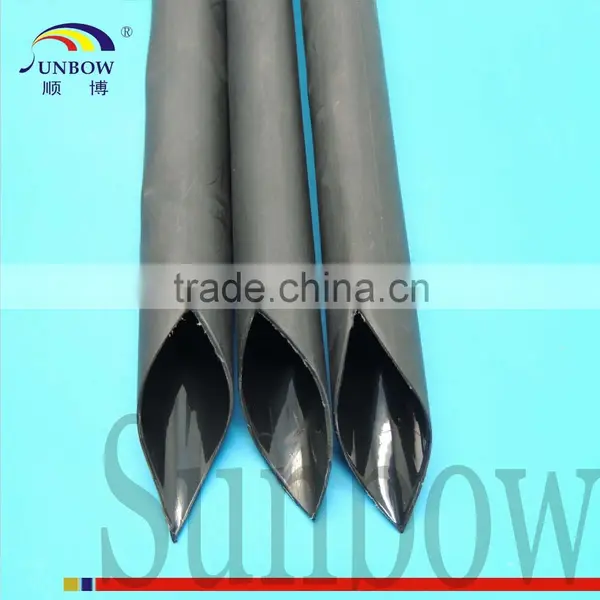

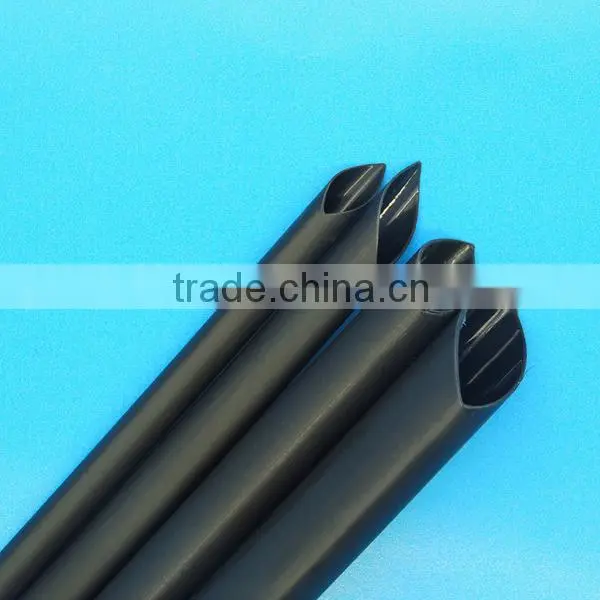

7. More Pictures
8. Our Services
1) 3~5 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
9. About SUNBOW
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
10. Some Certifications We've Got
11. How to Contact Us
Trade manager: cn1511744528
Skype: Sarah.sunbow
W: www. sunbowgd. com
T: +86-755-2716 0885-812(Ext) Fax: +86-755-2716 0895
12. Other Services
Free samples can be provided for your trial.
