15inch Loudspeaker Audio

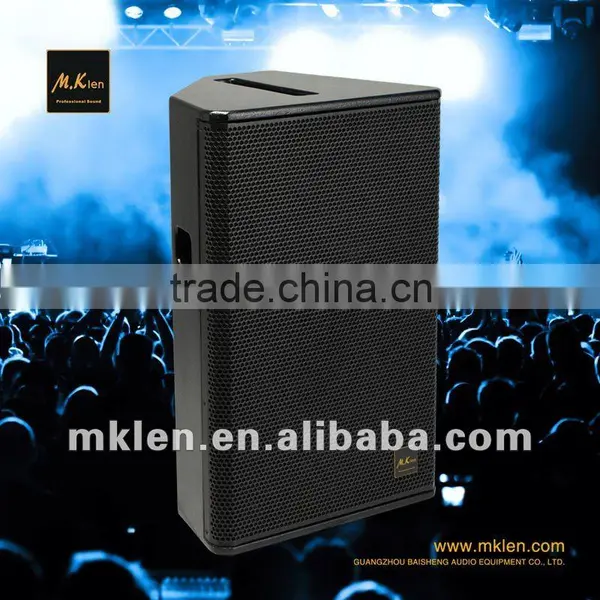

15inch Loudspeaker Audio photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
M.klen
Model Number:
P-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name M.klen
Model Number P-15

 P-15 loudspeaker audio Specifications:



P-15 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 15″(375mm) low frequency driver and a 1.5″(37mm) HF compression driver mounted on a constant directivity 90°×50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.



Frequency Response[a]
Usable Range@-6dB [a]
Sensitivity 1W@1m[b]
Nominal Peak SRL@1m[b]
HF Dispersion[c]
Directivity
Nominal Impedance
Recommended Amplifiers
Components


Height × Width × Depth
Weight
Connectors



58Hz-18kHz±3dB
55 Hz-20kHz
98dB SPL Nominal-96 dB SPL Wideband
125 to 130dB Peak (for 400 to 800W RMS Amp.)

50°to 100°Hor. × 55°Vert.Rotatable Horn,4 Positions
Q&DI[c]Q:16 Nominal DI:12dB Nominal (f>1.5kHz)

Passive 8ΩActive; LF 6.5Ω,HF8Ω.
400 to 800 Watts into 8Ω
LF1×15(380mm)  6.5Ωdriver
Voice coil HF driver size 3"(72mm)
Constant Directivity Asymmetrical Dispersion Horn.
675×434×369mm
 kg

3×NL4MP 4-pole SPEAKON;Passive ln Passive Loop Thru,Active ln
