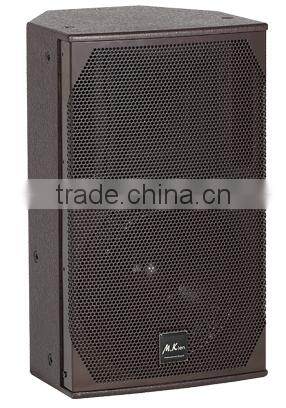

RCF10 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 10″(250mm) low frequency driver and a 1″25mm) B&C HF compression driver mounted on a constant directivity 80°×60° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
RCF10 Speaker Features:
♣ A 10" 2-way passive stage speaker, 300-600watts, with one 10" LF and one 1.4" B&C HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental jbl black painting, newest humanzied design, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
RCF10 Speaker Specifications:
RCF10 | |
| TYPE | Compact, two-way passive |
| FREQUENCY | 60Hz-19kHz ±3dB |
RESPONSE[1] | -10dB@56Hz |
DRIVERS | 10"(250mm)/2.5"(65mm) voice coil LF driver Voice coil B&C HF driver size 1.4"(34mm) |
RATED POWER[2] | 300W AES, 600W peak |
SENSITIVITY[3] | 98dB/w/m |
MAXIMUM SPL[4] | 121dB continuous, 127dB SPL |
| NOMINAL IMPEDANCE | 8ohms |
CONNECTORS | 2 × Neutrik NL4 |
| FITTINGS | 8 × M8, 4 × M8 threaded inserts 1 × mounting pole socket |
DIMENSIONS | (H)500 ×(W)300 ×(D)290 mm |
WEIGHT | 16kg |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

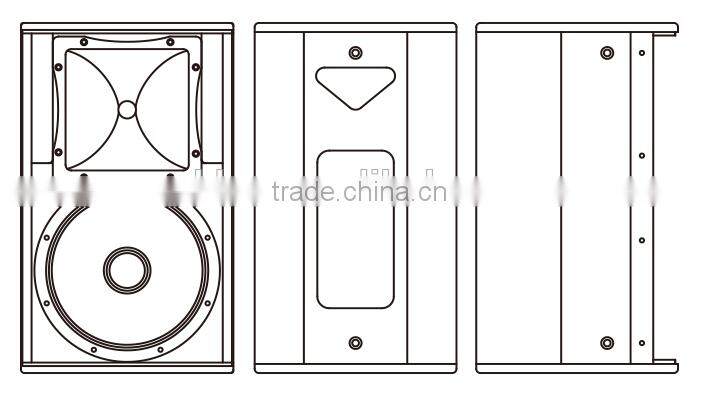

RCF10 Speaker box design:
