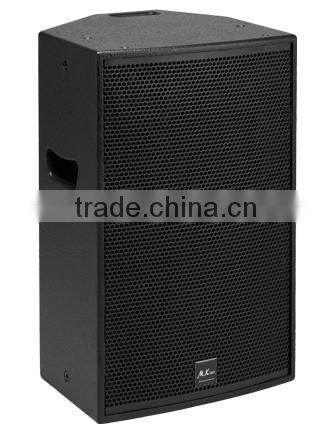

RF22TT+ Loudspeaker description:
1. RF22TT+ is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 12″(310mm) low frequency driver and a 1.5″(38mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
RF22TT+ Loudspeaker features:
♣ A 12" 2-way passive stage speaker, 400-800watts, with one 12" LF Neodymium and one 2.5" HF Neodymium drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental jbl black painting, newest humanzied design, light weight, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
RF22TT+ loudspeaker Specifications:
TYPE |
Compact, two-way passive |
FREQUENCY |
62Hz-20kHz±3dB |
RESPONSE(1) |
-10dB@60Hz |
DRIVERS |
12″(310mm)/3″(75mm)voice coil LF driver |
|
Voice coil HF driver size 2.5″(64mm) |
RATED POWER(2) |
400W AES, 800W peak |
SENSITIVITY(3) |
98dB |
MAXIMUM SPL(4) |
121Db continuous, 127dB peak |
NOMINAL IMPEDANCE |
8 ohms |
LF Passband |
1 × 12"D12F360,8 ohms, Neodymium |
HF Passband |
1 × 2.5"DH640,8 ohms, Neodymium |
CONNECTORS |
3×Neutrik NL4 |
FITTINGS |
8×M8 threaded inserts |
|
1×mounting pole socket |
DIMENSIONS |
350 ×500 ×317 mm |
WEIGHT |
20 kg |
Our Services:
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

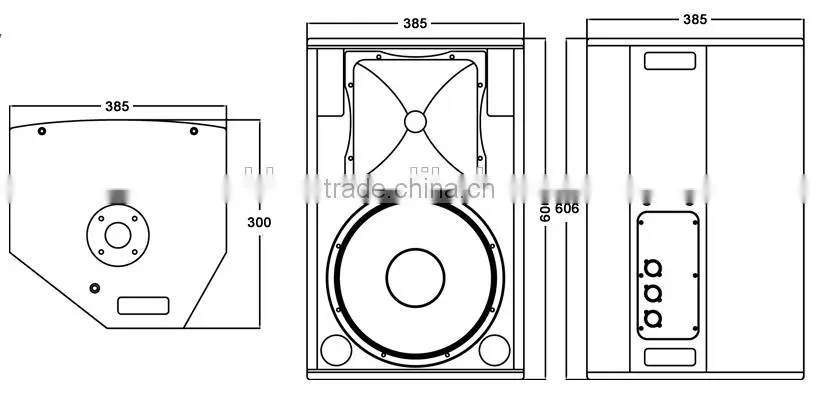

RF22TT+ Loudspeaker box design:

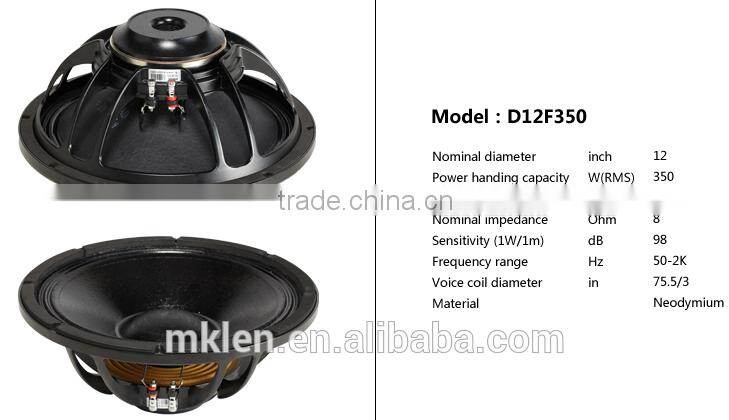

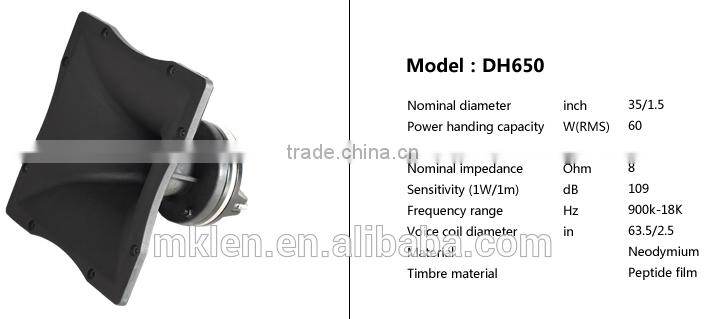

RF22TT+ Loudspeaker driver configuration:
