Guangzhou Baisheng Audio Equipement Co.,Ltd
2016 new design speaker 2-way passive subwoofer/multimedia loudspeaker

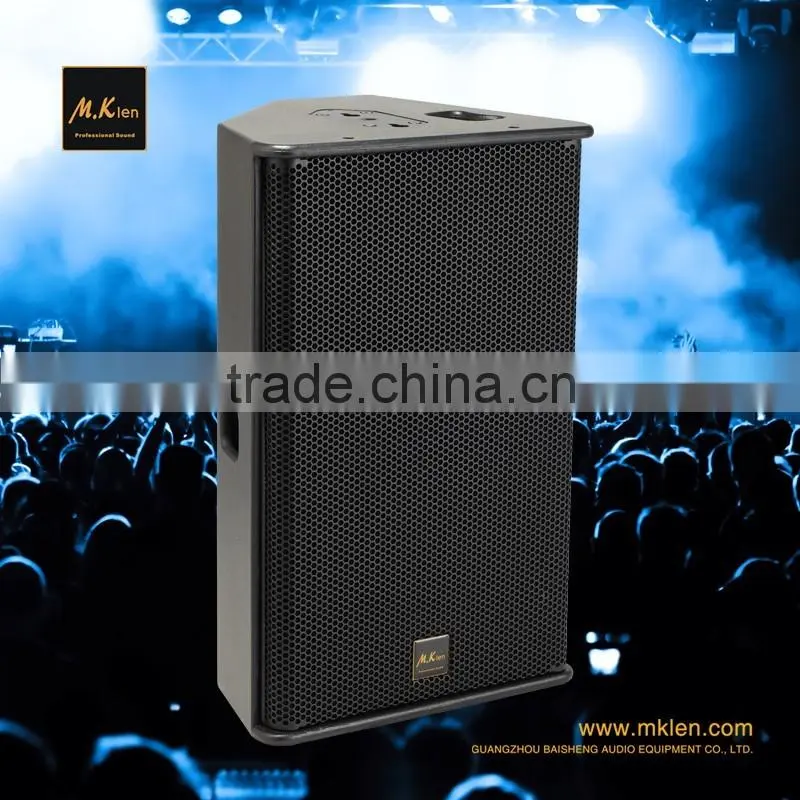

PS15-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 15″(375mm) low frequency driver and a 1.5″(38mm) HF compression driver mounted on a constant directivity 90°×50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

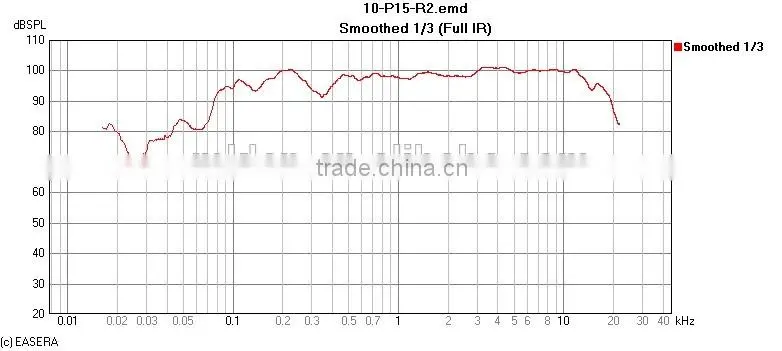

| Frequency Response[a] | 60Hz-18kHz ±3dB |
| Usable Range@-6dB[a] | 54Hz-18kHz |
| Sensitivity 1W /@1m[b] | 99dB/w/m |
| Nomial Peak SRL@1m[b] | 123dB to 129dB Peak (for 450 to 900W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 Positions |
| Nomial Impedance | Passive 8Ω Active; LF 8Ω; HF16Ω |
| Recommended Amplifiers | 450 to 900 Watts into 8Ω |
| Components | LF1×18″(380mm) 8Ωdriver |

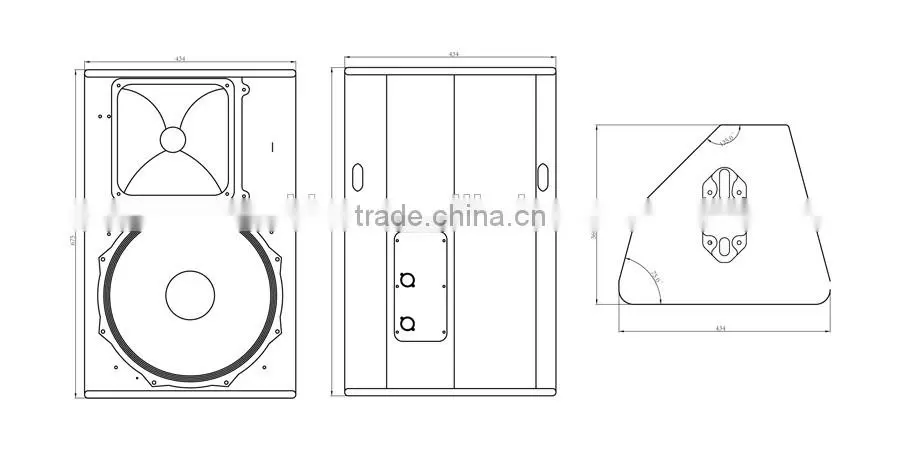

| Height* Width *Depth | 675×434×369 mm |
| Weight | 26KG |
| Connectors | 2*NL4MP 4-pole SPEAKON; Passive in Passive Loop Thru, Active In |
1. Service:
Reply your inquiry in 24 working hours.
2. Samples:
We can provide a sample for you first to check the quality.
3. Payments Terms:
Western Union, T/T, Cash
30% deposit and balance should be paid before the shipment.
4. Packaging:
Carton box with Foam
Including logo and other information.
5. Delivery Time:
15 working days after the receipt of the deposit.
1. Why chhose Wanminle ?
We have more than 20 years of professional experience in speaker field and provide a competitive price to face the requirment of the local market, we will satisfy your every demand of our products.
2. What is your MOQ ?
30 set
3. Could you put our loigo on the speaker ?
We provide OEM and ODM services, including the logo process, and the carton box design and produce.
4. How about your supply ?
We produce 20,000 pairs in a month.
5. What is your payment term?
We accept Western Union, T/T, Cashand other payment terms.
6. What is your delivery time?
25 working days after the receipt of the deposit.
If you have any request, pls feel free to contact us !
