professional sound speakers system speaker box for Conference room, passive speakers subwoofer

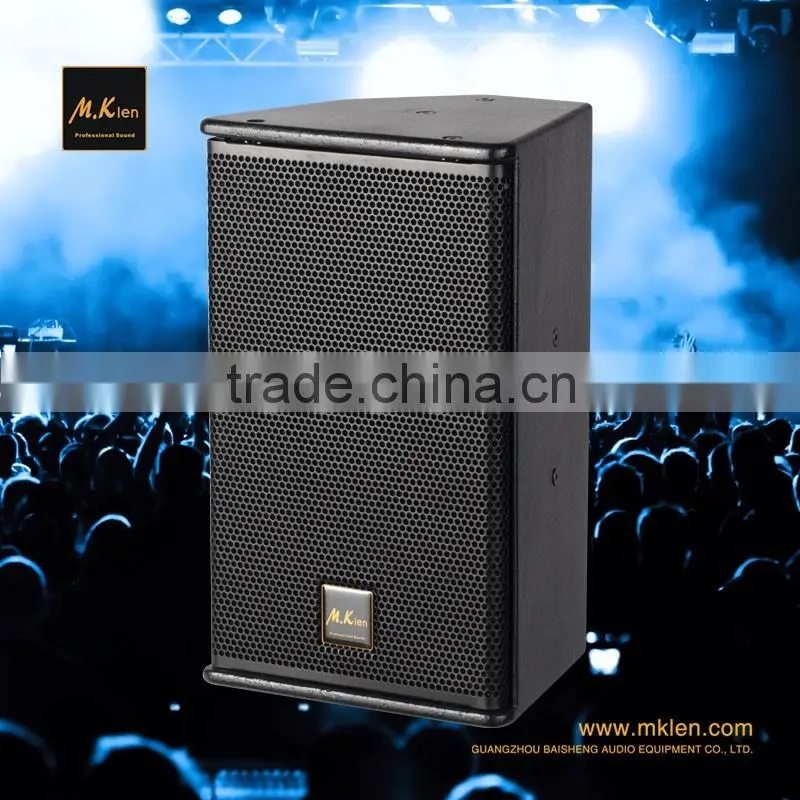

PS-8 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 8″(200mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

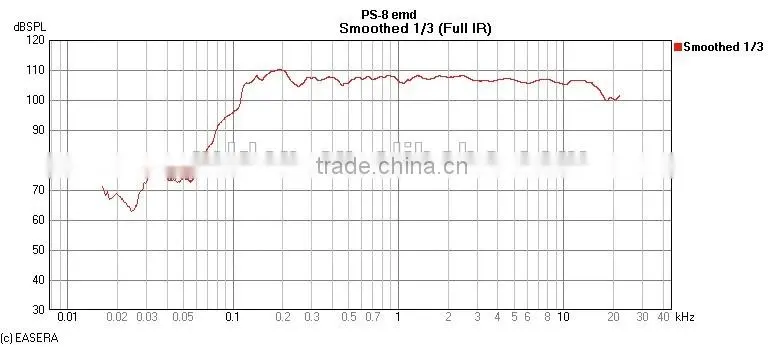

| Frequency Response | 75Hz-20kHz ±3dB |
| -10dB Response | 65Hz-20Hz |
| Sensitivity 1W @1m[b] | 96dB/w/m |
| Nominal Peak SRL@1m[b] | 122dB Peak (for 200 to 400W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions |
| Directivity | Q&DI[c]Q:10 Nominal DI:10dB Nominal (f>1.8kHz) |
| Nominal Impedance | 8Ω |
| Recommended Amplifiers | 200 to 400 Watts into 8Ω |
| Components | LF1×8″(200mm)Shielded Neodymium 8Ωdriver Voice coil HF driver size 1.4″(34mm) Constant Directivity Asymmetrical Dispersion Horn. |

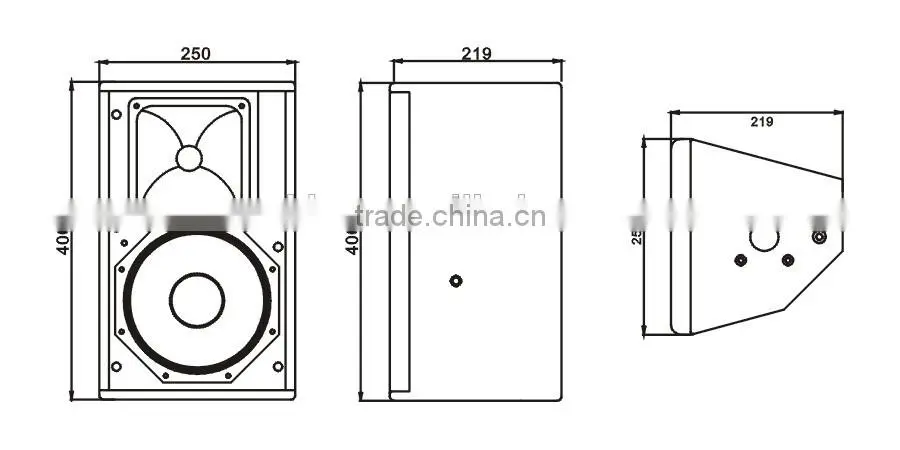

| Height* Width * Depth | 406×250×219mm |
| Weight | 11KG |
| Connectors | 2×NL4MP 4-pole SPEAKON |
1. Service:
Reply your inquiry in 24 working hours.
2. Samples:
We can provide a sample for you first to check the quality.
3. Payments Terms:
Western Union, T/T, Cash
30% deposit and balance should be paid before the shipment.
4. Packaging:
Carton box with Foam
Including logo and other information.
5. Delivery Time:
15 working days after the receipt of the deposit.
1. Why chhose Wanminle ?
We have more than 20 years of professional experience in speaker field and provide a competitive price to face the requirment of the local market, we will satisfy your every demand of our products.
2. What is your MOQ ?
30 set
3. Could you put our loigo on the speaker ?
We provide OEM and ODM services, including the logo process, and the carton box design and produce.
4. How about your supply ?
We produce 20,000 pairs in a month.
5. What is your payment term?
We accept Western Union, T/T, Cashand other payment terms.
6. What is your delivery time?
25 working days after the receipt of the deposit.
If you have any request, pls feel free to contact us !
