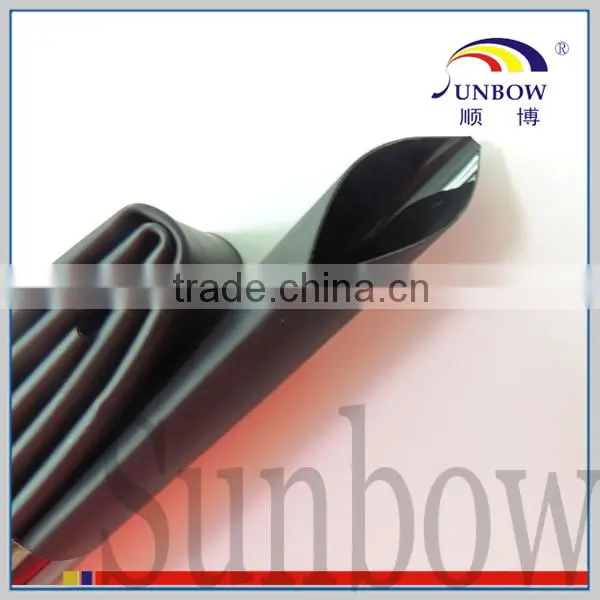

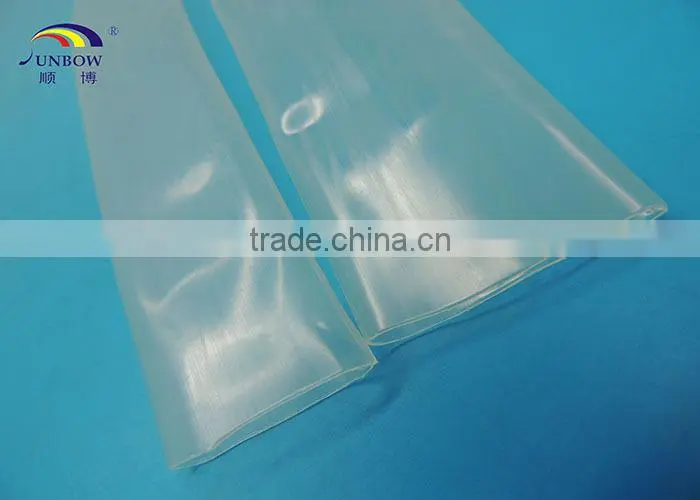

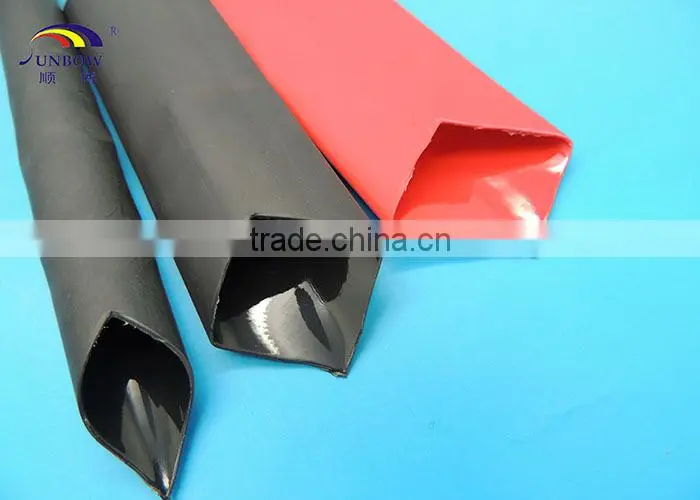

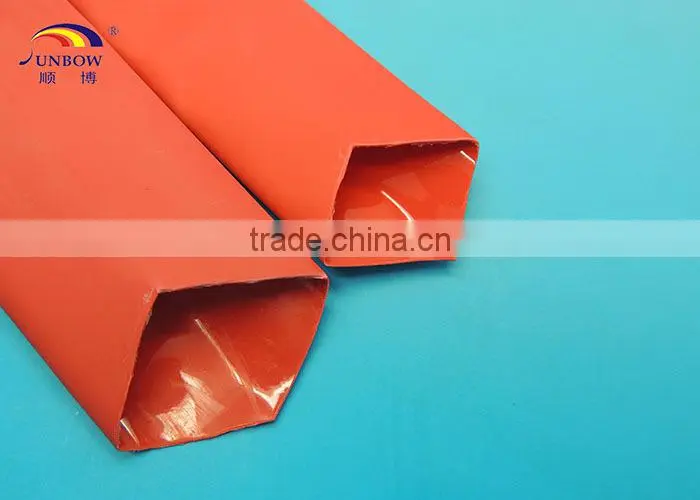

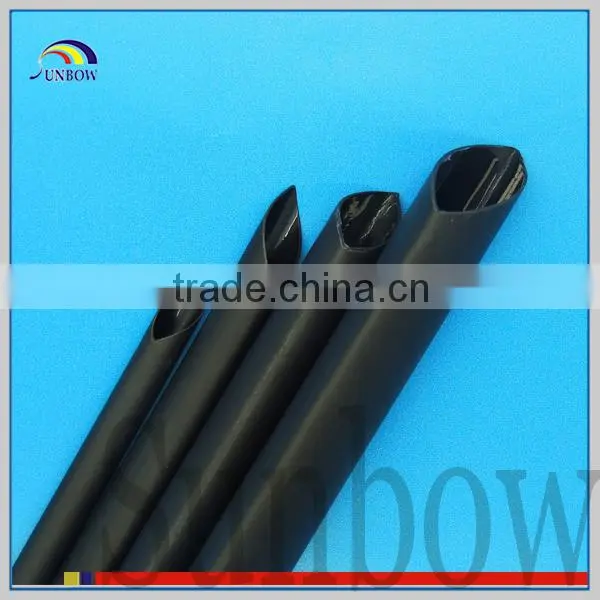

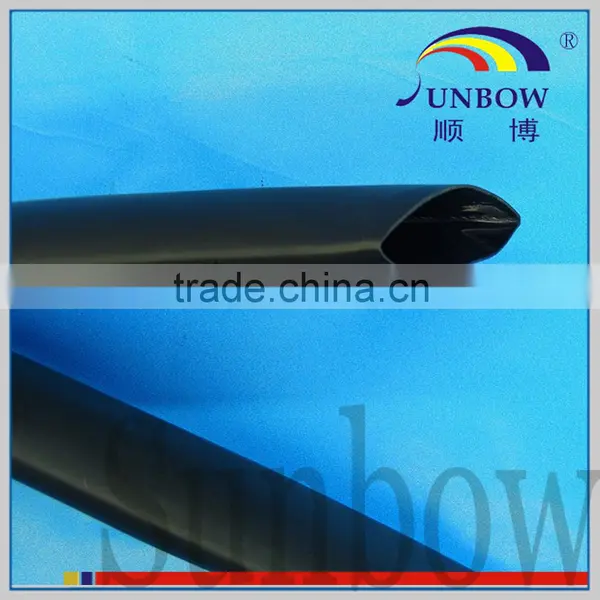

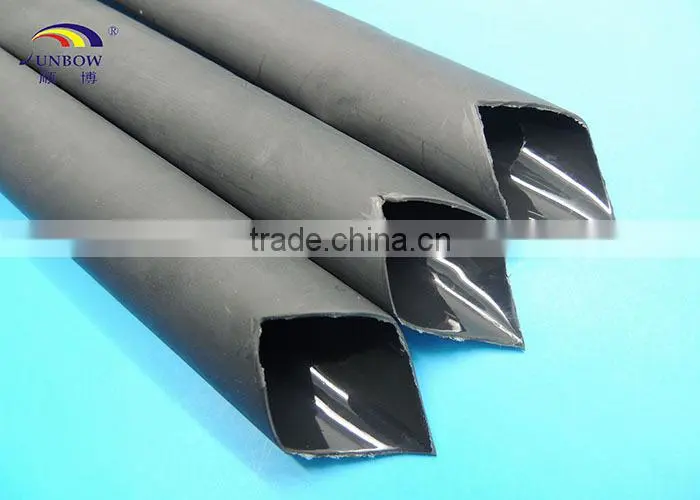

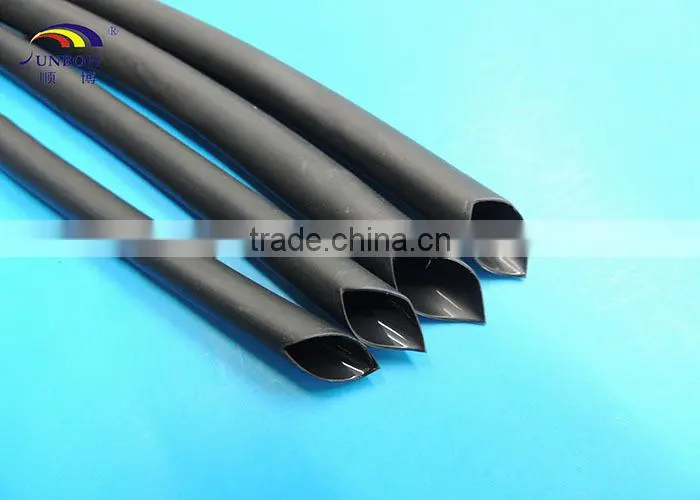

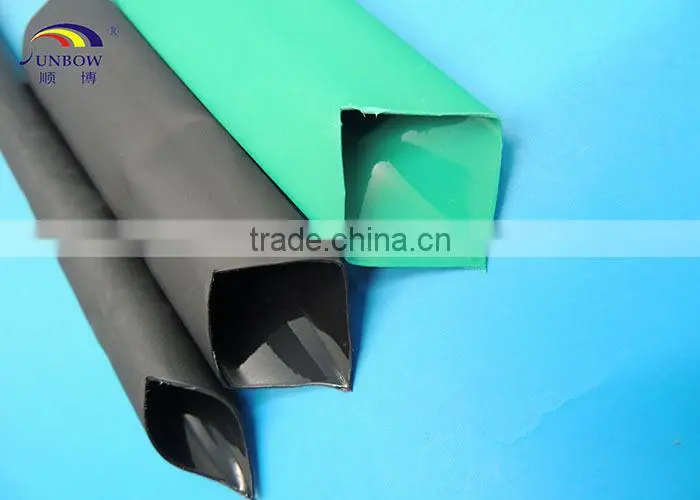

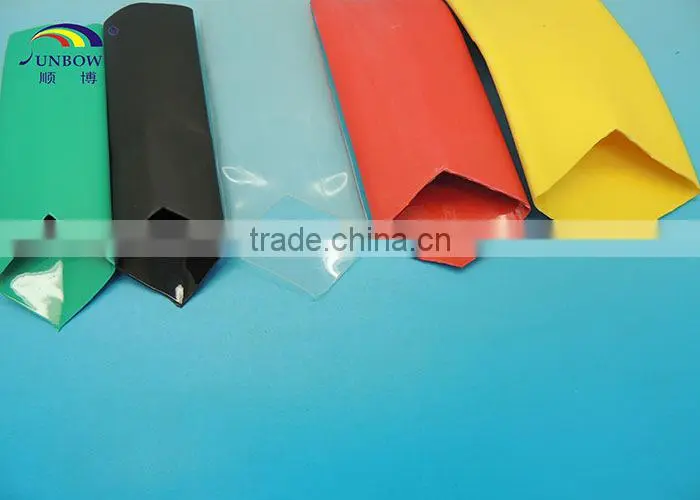

With ISO 9001:2008 Standard UL Waterproof Eco-friendly 3:1 Polyolefin Heat Shrink Tubing
1. Model
SB-SBRS-(3X, 4X)
2. Working Temperature
-45C ~ 125C
3. Structure
With ISO 9001:2008 Standard UL Waterproof Eco-friendly 3:1 Polyolefin Heat Shrink Tubing is composed of polyolefin for outside layer and high quality hot melt adhesive for inside layer. The outside layer has the advantages of insulation, anti-corrosion, wearproof, flexibility and self-extinguishing. The inside layer has the advantages of low melt point, waterproof, sealing and mechanical strain buffer. It is very easy to install. There are 3:1 & 4:1 heat shrink ratios available. The product has passed 600V/300V certification (ULE203950/CSA).
4. Characteristics
1) working temperature: -45C ~ 125C
2) shrink temperature: 70C ~ 125C
3) shrink ratio: 3:1 & 4:1
4) tensile strength: ≥10.4 Mpa
5) Elongation at break: ≥300%
6) breakdown strength: ≥ 15MV/m
7) softening point: 85C
8) water absorption rate: ≤0.2%
5. Dimension
SBRS-(3X)G 3:1
Size |
As supplied(mm) Min I.D. |
After recovery(mm) |
Standard package M/Spool |
|||
mm |
inch |
mm |
inch |
Adhesive thickness |
||
Φ2.4 |
3/32 |
≥2.4 |
≤0.80 |
0.85±0.15 |
0.40±0.10 |
200 |
Φ3.2 |
1/8 |
≥3.2 |
≤1.00 |
0.95±0.15 |
0.40±0.10 |
200 |
Φ4.8 |
3/16 |
≥4.8 |
≤1.60 |
1.10±0.15 |
0.40±0.10 |
100 |
Φ6.4 |
1/4 |
≥6.4 |
≤2.20 |
1.20±0.15 |
0.45±0.10 |
100 |
Φ7.9 |
5/16 |
≥7.9 |
≤2.70 |
1.35±0.15 |
0.50±0.10 |
100 |
Φ9.5 |
3/8 |
≥9.5 |
≤3.20 |
1.45±0.20 |
0.50±0.15 |
50 |
Φ12.7 |
1/2 |
≥12.7 |
≤4.20 |
1.70±0.20 |
0.50±0.15 |
1.22 |
Φ15.0 |
5/8 |
≥15.0 |
≤5.20 |
1.80±0.20 |
0.55±0.15 |
1.22 |
Φ19.1 |
3/4 |
≥19.1 |
≤6.30 |
2.00±0.20 |
0.55±0.15 |
1.22 |
Φ25.4 |
1 |
≥25.4 |
≤8.50 |
2.10±0.25 |
0.55±0.15 |
1.22 |
Φ30.0 |
1-1/4 |
≥30.0 |
≤10.20 |
2.20±0.25 |
0.60±0.15 |
1.22 |
Φ39.0 |
1-1/2 |
≥39.0 |
≤13.50 |
2.40±0.25 |
0.60±0.15 |
1.22 |
Φ50.0 |
2 |
≥50.0 |
≤17.00 |
2.70±0.25 |
0.80±0.15 |
1.22 |
Φ64.0 |
2-1/2 |
≥64.0 |
≤21.00 |
3.00±0.30 |
0.80±0.20 |
1.22 |
Φ76.0 |
3 |
≥76.0 |
≤25.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ90.0 |
3-1/2 |
≥90.0 |
≤30.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ100 |
4 |
≥100 |
≤34.00 |
3.00±0.30 |
1.00±0.20 |
1.22 |
Φ125 |
5 |
≥125 |
≤42.00 |
3.00±0.30 |
1.00±0.15 |
1.22 |
SBRS-(4X)G 4:1
Size |
As supplied(mm) Min I.D. |
After recovery(mm) |
Standard package |
|||
mm |
inch |
Max I.D. |
Total W.T. |
Adhesive thickness |
||
Φ4.0 |
2/13 |
≥4.0 |
≤1.0 |
1.0±0.15 |
0.4±0.15 |
200 |
Φ6.0 |
1/4 |
≥6.0 |
≤1.5 |
1.1±0.15 |
0.4±0.15 |
100 |
Φ8.0 |
5/16 |
≥8.0 |
≤2.0 |
1.2±0.15 |
0.5±0.15 |
1.22 |
Φ12.0 |
1/2 |
≥12.0 |
≤3.0 |
1.4±0.15 |
0.5±0.15 |
1.22 |
Φ16.0 |
5/8 |
≥16.0 |
≤4.0 |
1.7±0.15 |
0.6±0.15 |
1.22 |
Φ20.0 |
15/19 |
≥20.0 |
≤5.0 |
2.0±0.25 |
0.6±0.15 |
1.22 |
Φ24.0 |
1 |
≥24.0 |
≤6.0 |
2.1±0.25 |
0.6±0.15 |
1.22 |
Φ32.0 |
1 1/4 |
≥32.0 |
≤8.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
Φ52.0 |
2 |
≥52.0 |
≤13.0 |
2.4±0.25 |
0.7±0.15 |
1.22 |
6. Application
With ISO 9001:2008 Standard UL Waterproof Eco-friendly 3:1 Polyolefin Heat Shrink Tubing has the functions of waterproof, anticorrosion, insulation and mechanical protection of the pipe tubes. It can be widely used in electrons, electricity, communications, automobiles, ships and aeroplanes.
