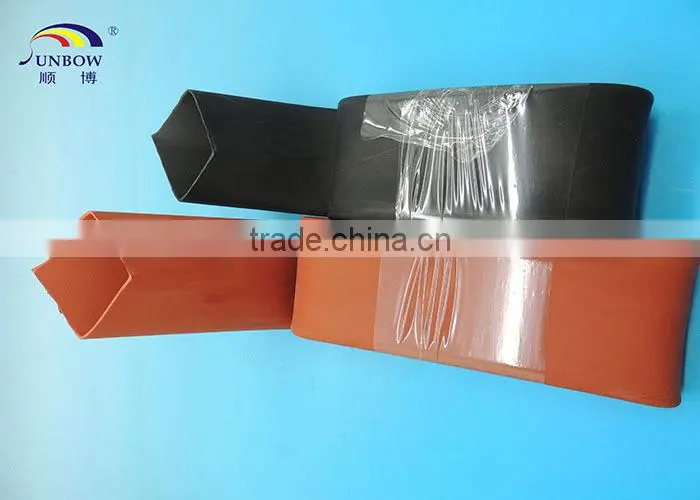

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-1
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-2
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-3
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-4
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-5
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover thumbnail-6
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-1

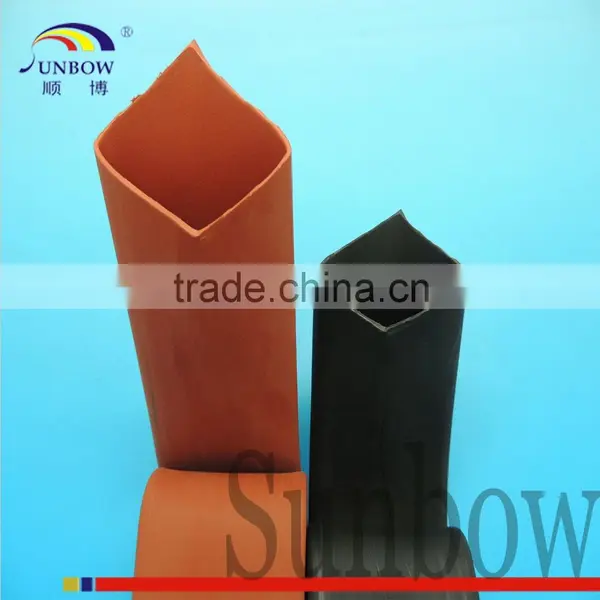

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-2

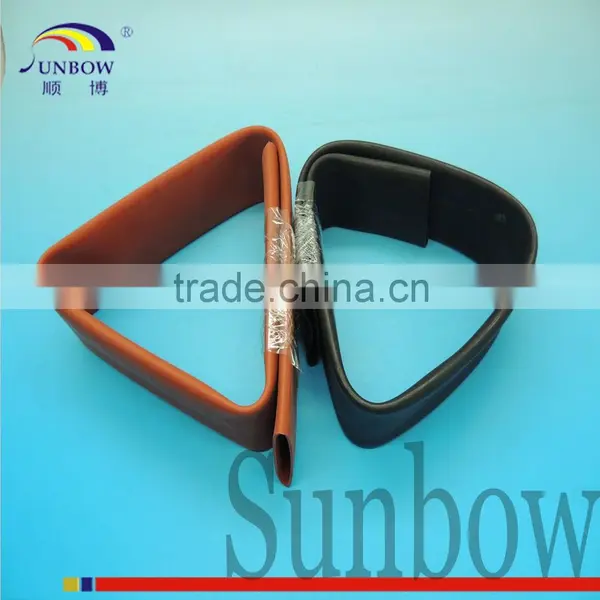

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-3

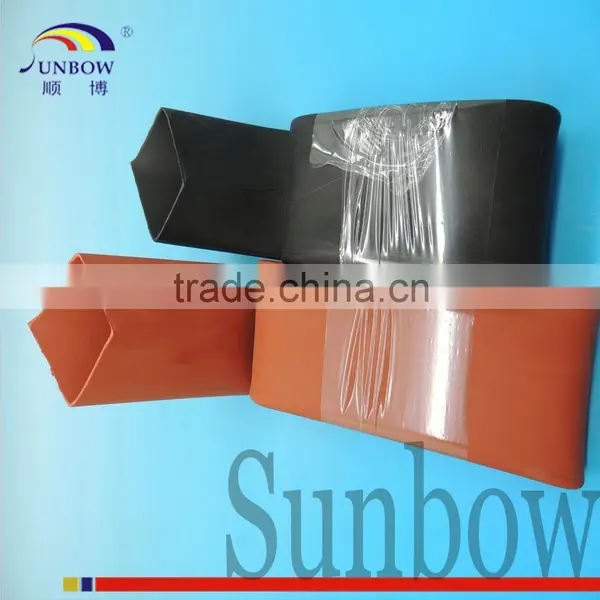

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-4
Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-5

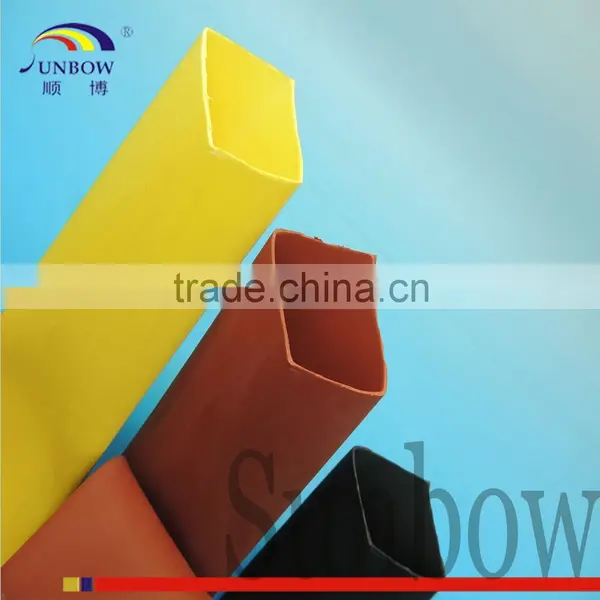

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover photo-6
US$ 0.03 - 17.98 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUNBOW
Model Number:
SB-WMPG SERIES
Contact Supplier Request Quote Chat Now
Shenzhen Sunbow Insulation Materials Mfg. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SUNBOW
Model Number SB-WMPG SERIES
Type Insulation Sleeving
Material PE
Application Other, High Voltage, Busbar, switchboard...
Rated Voltage 35KV
Tensile Strength Excellent

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover



WORKING TEMPERATURE

-55°c ~ 125°c



SHRINK RATIO

2:1



DESCRIPTION

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover adopts cross-linked and environmental friendly polyolefin material. It restricts the hazardous substance in PBB, PBBD, PBBE and other heavy metal, and supplies high dielectric strength and voltage withstand performance. It prevents bus-bar from chemical corrosion effected by strong acid, alkali, salt etc. It also has environmental friendly, flexible, flame retardant, soft performance.



Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover



APPLICATION

Flexible Flame Retardant Eco-friendly Heat Shrinkable Tube For Busbar Cover is mainly used in dielectric and mechanical protection, joints and terminals.



CHARACTERISTICS

  1. Shrink temperature: 84ºC ~ 125ºC
  2. Environmental, flexible, flame retardant, soft
STANDARDS

1) GB/T 1059-2007                     2) RoHS approval



SPECIFICATION

Property

Unit

Standard

Test Method

Tensile Strength

MPA

≥10.4(Before Aging)

GB/T 1040

130ºC *168hrs

≥7.3(After Aging)

Elongation

%

≥300(Before Aging)

GB/T 1040; GB/T7141

130ºC*168hrs

      ≥100(After Aging)

Heat Shock

-

No Sticking; No Cracking

JB 7829appendixD.(160ºC*4hrs)

Cold Blend

-

No Cracking

-30ºC*4hrs

Breakdown Strength

KV/mm

≥25

GB/T 1408.1

Volume Resistivity

Ω. cm

≥1×1014

GB/T 1410

Longitudinal Change

%

≥50



Off-center

%

≤30

UL 224

Flame Retardant

-

≥30

GD/T 2406

Water Absorption

%

≤0.5

ISO 62-1980

Dielectric Withstand

KV/mm

≥30KV.1min

GB/T 1408.1

Shore Hardness(Shore A)



≤90

GB 2401

*This data is suitable for 10kv bus bar protection tube. When managing this test, the user must make the tube recovery evenly and make sure the max thickness>2mm, and bus-bar tubes are longer than 1200mm. **35kV bus bar off center proportion≤50%



DIMENSION

1)     1KV Bus Bar Protection Heat Shrinkable Tube

Specification

Bus Bar Width(mm)

As Supplied(mm)

After Recovery(mm)

Standard Package

Inside Diameter

Wall Thickness

Inside Diameter

Wall Thickness

       (m/roll)

1KV WMPG 30

30

31.5±1.0

0.50±0.15

≤15.0

1.00±0.15

50

1KV WMPG 35

35

36.5±1.0

0.50±0.15

≤17.5

1.00±0.15

50

1KV WMPG 40

40

41.5±1.0

0.55±0.15

≤20.0

1.00±0.15

50

1KV WMPG 45

45

46.5±1.0

0.55±0.15

≤22.5

1.00±0.15

25

1KV WMPG 50

50

≥50

0.55±0.15

≤25.0

1.10±0.15

25

1KV WMPG 60

60

≥60

0.60±0.15

≤30.0

1.20±0.15

25

1KV WMPG 70

70

≥70

0.65±0.15

≤35.0

1.30±0.20

25

1KV WMPG 75*

75

≥75

0.65±0.15

≤38.0

1.30±0.20

25

1KV WMPG 80

80/100

≥80

0.65±0.15

≤40.0

1.30±0.20

25

1KV WMPG 85*

80/100

≥85

0.65±0.15

≤43.0

1.30±0.20

25

1KV WMPG 90

100

≥90

0.65±0.15

≤45.0

1.30±0.20

25

1KV WMPG 100

100/120

≥100

0.65±0.20

≤50.0

1.30±0.20

25

1KV WMPG 120

150

≥120

0.65±0.20

≤60.0

1.30±0.20

25

1KV WMPG 150

180

≥150

0.65±0.20

≤70.0

1.30±0.20

25

1KV WMPG 180

MAX

≥180

0.65±0.30

≤90.0

1.30±0.30

25

1KV WMPG 210*

MAX

≥210

0.65±0.30

≤105.0

1.30±0.30

25

1KV WMPG 230*

MAX

≥230

0.65±0.30

≤115.0

1.30±0.30

25

1KV WMPG 250*

MAX

≥250

0.65±0.30

≤125.0

1.30±0.30

25



2)     10KV Bus Bar Protection Heat Shrinkable Tube

Specification

Bus Bar Width(mm)

As Supplied(mm)

After Recovery(mm)

Standard Package

Inside Diameter

Wall Thickness

Inside Diameter

Wall Thickness

(m/roll)

10KV WMPG 15/6

15/12

≥15

1.0±0.30

≤6.0

2.5±0.20

25

10KV WMPG 20/8

20/15

≥20

1.0±0.30

≤8.0

2.5±0.20

25

10KV WMPG 25/10

25/18

≥25

1.0±0.30

≤10.0

2.5±0.20

25

10KV WMPG 30/12

30/20

≥30

1.0±0.30

≤12.0

2.5±0.20

25

10KV WMPG 40/16

40/30

≥40

1.2±0.30

≤16.0

2.8±0.30

25

10KV WMPG 50/20

50/35

≥50

1.2±0.30

≤20.0

2.8±0.30

25

10KV WMPG 60/24

60/45

≥60

1.2±0.30

≤24.0

2.8±0.30

25

10KV WMPG 65/26*

65/45

≥65

1.2±0.30

≤26.0

2.8±0.30

25

10KV WMPG 70/28

70/50

≥70

1.2±0.30

≤28.0

2.8±0.30

25

10KV WMPG 75/30*

75/50

≥75

1.2±0.30

≤30.0

2.8±0.30

25

10KV WMPG 80/32

80/55

≥80

1.2±0.30

≤32.0

2.8±0.30

25

10KV WMPG 85/34*

80/65

≥85

1.2±0.30

≤34.0

2.8±0.30

25

10KV WMPG 100/40

100/75

≥100

1.2±0.30

≤40.0

2.8±0.30

25

10KV WMPG 120/48

120/85

≥120

1.2±0.30

≤48.0

2.8±0.30

25

10KV WMPG 150/60

150/105

≥150

1.2±0.30

≤60.0

2.8±0.30

25

10KV WMPG 180/72

180/120

≥180

1.2±0.30

≤72.0

2.8±0.30

25

10KV WMPG 210/84*

210/140

≥210

1.2±0.40

≤84.0

2.8±0.30

25

10KV WMPG 230/92*

230/150

≥230

1.2±0.40

≤92.0

2.8±0.30

25

10KV WMPG 250/100*

250/160

≥250

1.2±0.40

≤100.0

2.8±0.30

25





3)     35 KV Bus Bar Protection Heat Shrinkable Tube

Specification

Bus Bar Width (mm)

As Supplied(mm)

After Recovery(mm)

Standard Package

Inside Diameter

Wall Thickness

Inside Diameter

Wall Thickness

(m/roll)

35KV WMPG 30/15

30

≥30

2.0±0.60

≤15.0

4.0±0.30

15

35KV WMPG 35/18

30/40

≥35

2.0±0.60

≤17.5

4.0±0.30

15

35KV WMPG 40/20

40

≥40

2.0±0.60

≤20.0

4.0±0.30

15

35KV WMPG 50/25

50

≥50

2.0±0.60

≤25.0

4.0±0.30

15

35KV WMPG 60/30

60

≥60

2.0±0.60

≤30.0

4.0±0.30

15

35KV WMPG 65/33*

60/70

≥65

2.0±0.60

≤32.5

4.0±0.30

15

35KV WMPG 70/35

70

≥70

2.0±0.60

≤35.0

4.0±0.30

15

35KV WMPG 75/38*

70/80

≥75

2.0±0.60

≤37.5

4.0±0.30

15

35KV WMPG 80/40

80/100

≥80

2.0±0.60

≤40.0

4.0±0.30

15

35KV WMPG 100/50

100/120

≥100

2.0±0.60

≤50.0

4.0±0.30

15

35KV WMPG 120/60

150

≥120

2.0±0.60

≤60.0

4.0±0.30

15

35KV WMPG 150/75

180

≥150

2.0±0.70

≤75.0

4.0±0.30

15

35KV WMPG 180/90*

MAX

≥180

2.0±0.70

≤90.0

4.0±0.30

15

35KV WMPG 210/105*

MAX

≥210

2.0±0.70

≤105.0

4.0±0.30

15

35KV WMPG 230/115*

MAX

≥230

2.0±0.70

≤115.0

4.0±0.30

15

35KV WMPG 250/115*

MAX

≥250

2.0±0.70

≤125.0

4.0±0.30

15



FREQUENTLY ASKED QUESTIONS

Q1. You are a factory or trading company?

We are a factory and we can provide best price and high quality products for you.

Q2. Can you accept sample orders?

Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

Normally, 1000m per size.

Q4. What are your payment terms?

T/T 100% or West Union.

Q5. How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.

Q6. How about your quality?

Try a small order, and then you can judge.

Q7. Have you passed any certificates?

Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.

Q8. Are there any advantages to choose your products?

1)    ISO 9001 : 2008 TS 16949 standard factory manufacturer

2)  high-tech enterprise in China

3)  with 12-year manufacturing experience

4)  factory direct sales

5)  best price high quality product

6)  quick delivery time

7)  quick response for feedback

8)  few complaints from customers

9)  more competitive price for VIP customers

10)  convenient situation near to seaport
